£621.36
excl. VAT
£745.63 incl. VAT
£745.63
incl. VAT
£621.36 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Adjustable pressure range | 50-350.0 BAR |
|---|---|
| Connections thread diameter | 1/4 Inch |
| Extra info | Suitable for mounting on;, OMT, SMT |
| Material | Aluminium |
| Max flow rate | 120 l/min |
| Max working pressure | 210 BAR |
| Max working temperature | 90 °C |
| Min working temperature | -25 °C |
| Pilot ratio | 1:3.0 |
| Primary application | Vehicle technology |
| Sealing material | Buna-N |

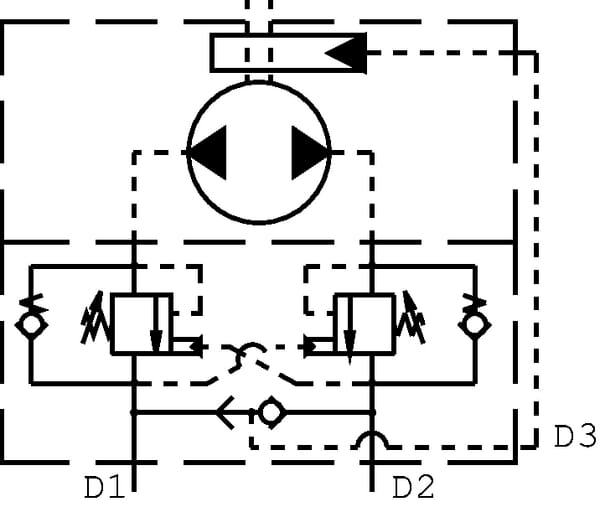

| Technical info | Dual Counter balance valve with shuttle valve. The purpose of the shuttle valve is the operation of a (negative) multiple disc brake. Operation of this valve is influenced by the pressure in the return port (port D). |

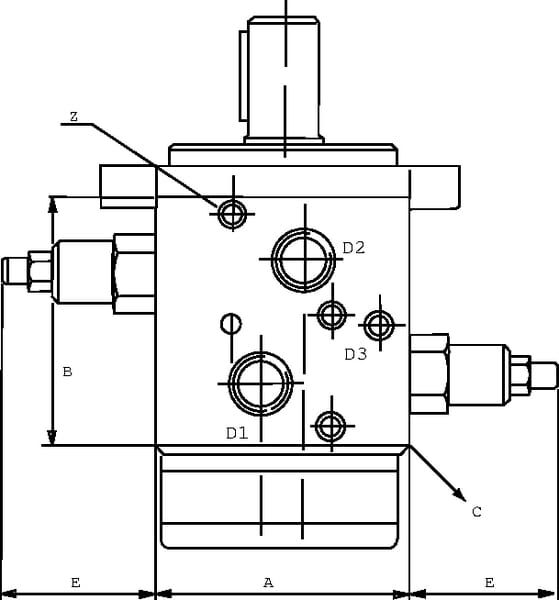

| Total height | 130 mm |
| Total length | 130 mm |
| Total width | 100 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 4800 g |
| Dimensions | 240 × 130 × 110 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000356939
Walvoil Control valve SD18/5-P-4x18 AET SD185001
£1,175.01 excl.
£1,410.01 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000350085

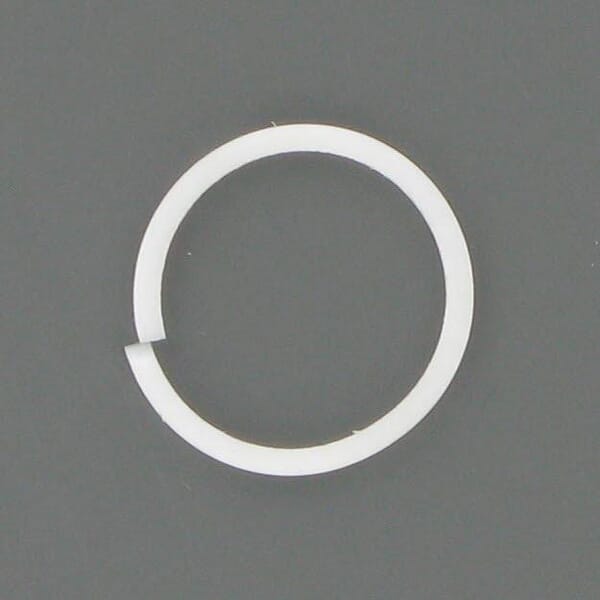

Walvoil PTFE backup ring15,84X13,2X1,1 RP910158413211PTFE
£0.76 excl.
£0.91 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000395772
Walvoil Flow control Steel 3 Way VPR3ET05006ST
£460.85 excl.
£553.02 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000252434

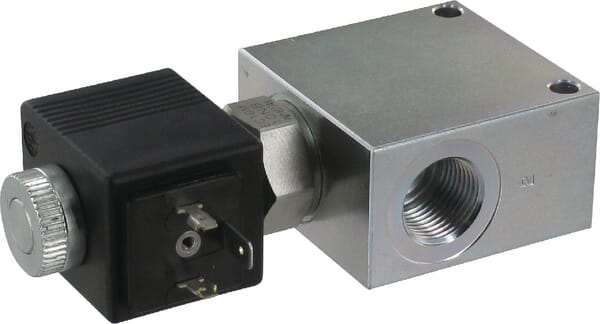

Walvoil Control valve 2/2 EC10M NO 24VDC 1/2" BSP EC10MNO002
