£259.30
excl. VAT
£311.16 incl. VAT
£311.16
incl. VAT
£259.30 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Adjustable pressure range | 50-350.0 BAR |
|---|---|
| Connections thread diameter | 1/2 Inch, 1/4 Inch |
| Extra info | Suitable for mounting on;, OMR, OMP |
| Material | Aluminium |
| Max flow rate | 40 l/min |
| Max working pressure | 210 BAR |
| Max working temperature | 90 °C |
| Min working temperature | -25 °C |
| Pilot ratio | 1:3.0 |
| Primary application | Vehicle technology |
| Sealing material | Buna-N |

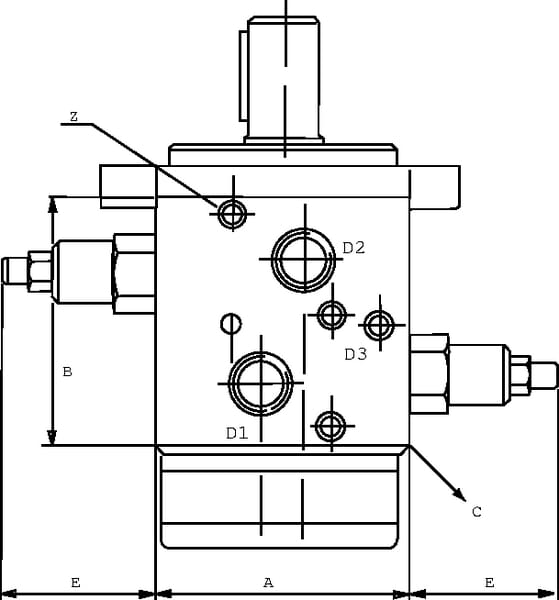

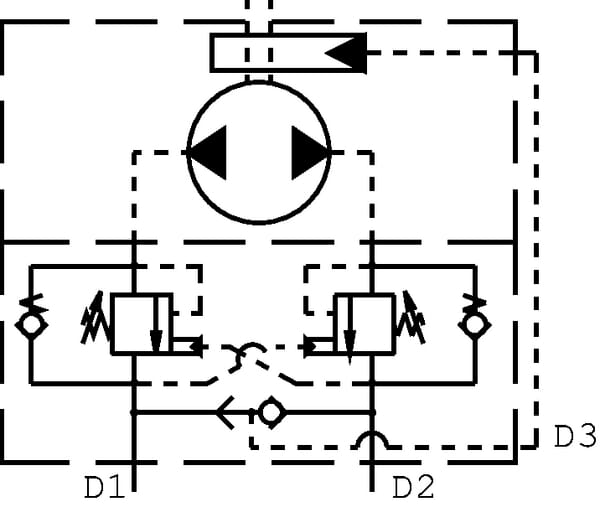

| Technical info | Dual Counter balance valve with shuttle valve. The purpose of the shuttle valve is the operation of a (negative) multiple disc brake. Operation of this valve is influenced by the pressure in the return port (port D). |
| Total height | 100 mm |
| Total length | 100 mm |
| Total width | 50 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2065 g |
| Dimensions | 210 × 100 × 60 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000395771

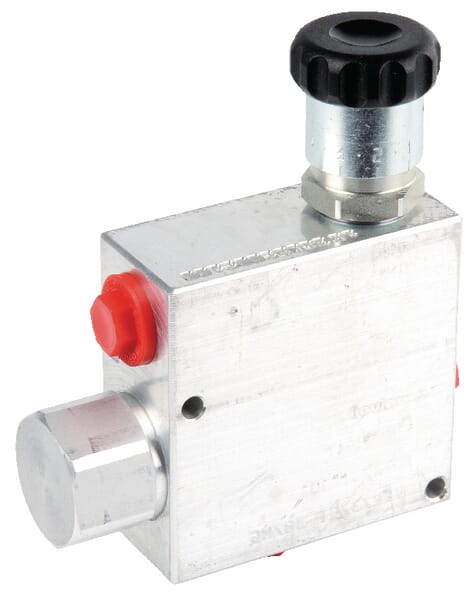

Walvoil Flow control 3 Way VPR3ET05005
£181.69 excl.
£218.03 incl.
In stock
Expected to ship on Friday 18 September
BPA000357308

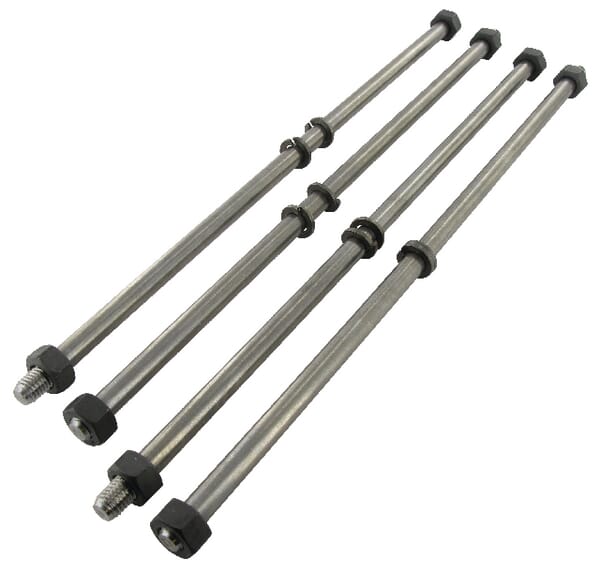

Walvoil Bolt set (4) for SD 16-5 SD916T5
£31.61 excl.
£37.93 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000396100

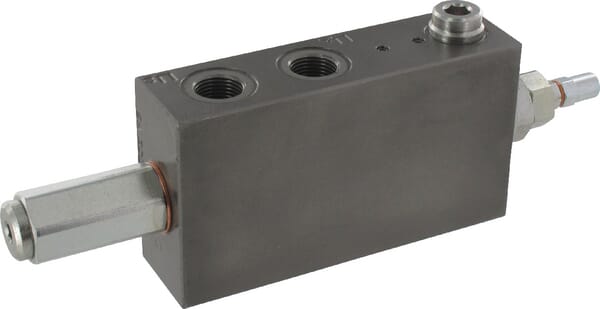

Walvoil Regenerative valve 1/2" VRCL10001
£326.77 excl.
£392.12 incl.
In stock
Expected to ship on Friday 18 September
BPA000357261

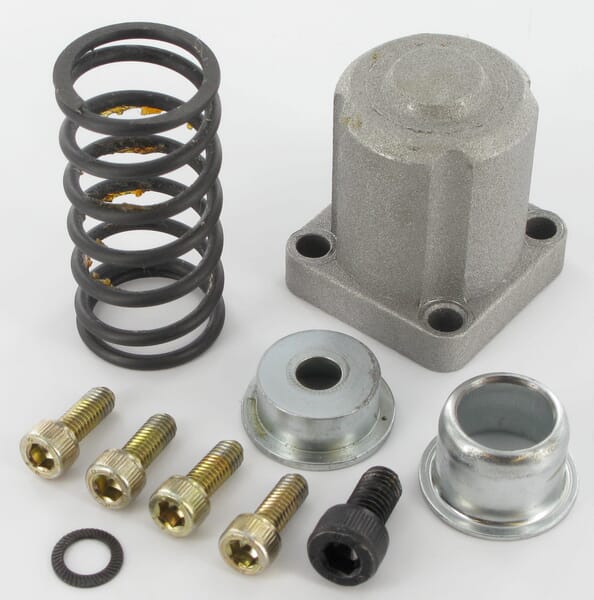

Walvoil Detent kit Type 17 SD11/SDS150/SD16 SD911A17
£16.03 excl.
£19.24 incl.
In stock
Expected to ship on Friday 18 September
BPA000357387

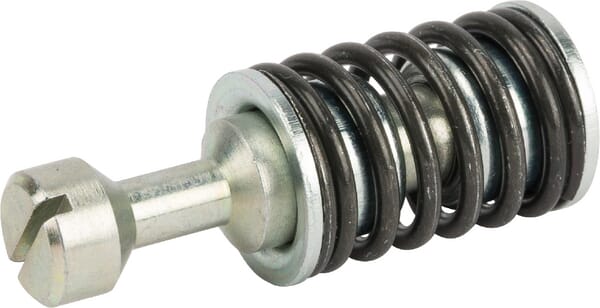

Walvoil Stopper 8MS1 Control Microswit SD95A8MS1PEN
