£362.66
excl. VAT
£435.19 incl. VAT
£435.19
incl. VAT
£362.66 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Max. flow rate | 80 l/min |
|---|---|
| Max. leakage | 3 cm³/min |
| Max medium temperature | 80 °C |
| Max return line pressure | 10 BAR |
| Max working pressure | 250 BAR |
| Min medium temperature | -20 °C |
| Number of sections | 2 |
| Outlet port option | Open centre |
| Pressure port P - Thread diameter | 3/4 Inch |
| Pressure port P - Thread type | BSP |
| Pressure range relief valve | 180-180 BAR |
| Product details | 2-section DLM122 monobloc directional valve, Built-in pressure relief valve, setting: 180 bar, Two spools in parallel, Manually actuated with cables and handlevers., Front loader valve with closed center for Load Sensing systems LS, 2x double acting with port A and B closed in neutral position, spring centered |
| Sealing material | Nitrile rubber [NBR] |
| Tank port T - Thread diameter | 3/4 Inch |
| Tank port T - Thread type | BSP |
| Type | Monobloc |
| Type actuation | Cable operated |
| Unit | Each |
| Valve series | DLM122 |
| Workports thread diameter | 1/2 Inch |
| Workports thread type | BSP |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 12330 g |
| Dimensions | 320 × 170 × 110 mm |
| Dangerous goods | No |
You might also like
BPA000357393
Walvoil Micro switch Set 8MI-SD 5 (no) SD95AMI1NO
£47.00 excl.
£56.40 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000357140

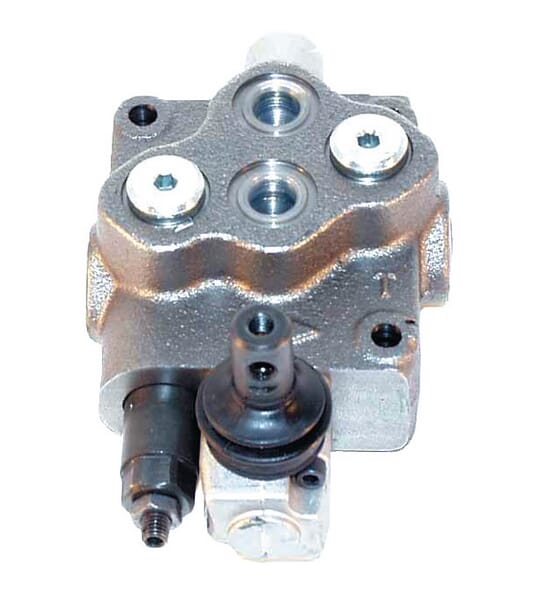

Walvoil Control valve SD5/1-N-310L-AET SD51009
£167.41 excl.
£200.89 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000376630
Walvoil Pressure relief valve VDSDB20001
£176.40 excl.
£211.68 incl.
In stock
Expected to ship on Friday 18 September
BPA000357434
Walvoil Piston Type 6 SD95P6
£20.71 excl.
£24.85 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000357239

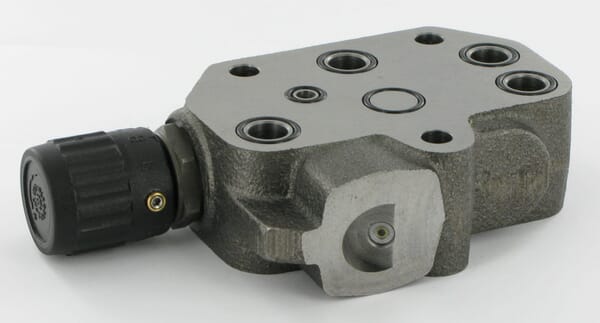

Walvoil Section Flow reg. SD6/EVP91 3 Way SD61EVP91
