£146.02
excl. VAT
£175.22 incl. VAT
£175.22
incl. VAT
£146.02 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Adjustable pressure range | 180-350 BAR |
|---|---|
| Adjustment type | Socket screw |

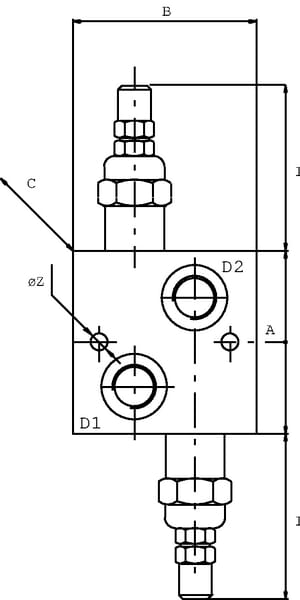

| AHousing height | 70 mm |
| Application range | High pressure and moderate volume flow, For use as a cushion valve for a hydraulic motor with separate pressure value, Protects hydraulic motors from pressure spikes in response to external forces that may occur due to an abrupt stop or change of rotational direction |
| BHousing length | 70 mm |
| CHousing width | 35 mm |
| Connection thread diameter | 3/8 Inch |
| Connection thread type | Inch |
| Connection type | Thread |
| JCartridge length | 60 mm |
| Max. flow rate | 25 l/min |
| Max working pressure | 350 BAR |

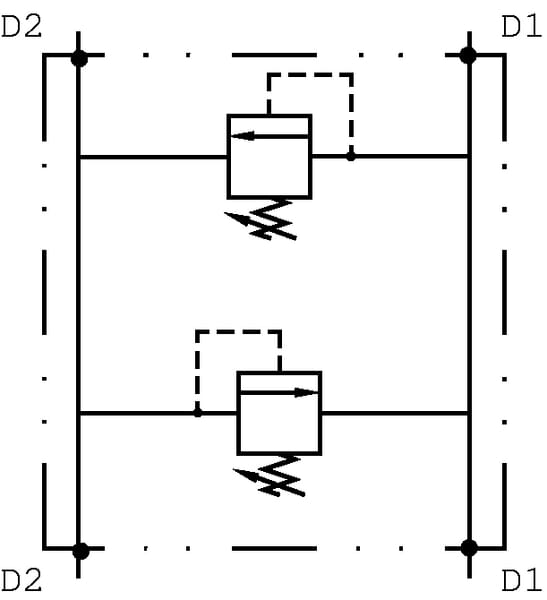

| Properties | Type: spring-loaded valve, direct control, Opens from D1 to D2 or vice versa, Intermittent fast-reacting circuit |
| Technical info | For the best possible performance, this valve should be placed as close as possible to the consumer |
| Type | Spring-loaded valve |
| Unit | Each |
| ZMounting holes diameter | 6.5 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1302 g |
| Dimensions | 185 × 70 × 54 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000382541

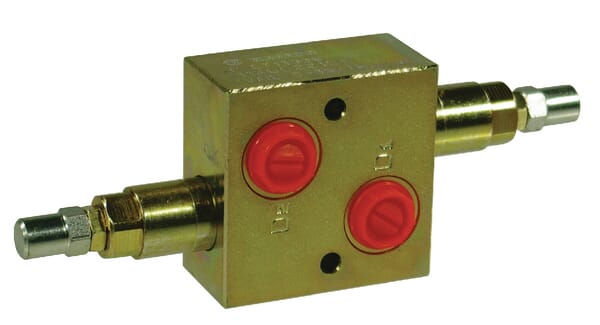

Walvoil Pressure relief valve Steel VAIL10001ST
£197.52 excl.
£237.02 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000382544
Walvoil Pressure relief valve Steel VAIL20001ST
£265.55 excl.
£318.66 incl.
In stock
Expected to ship on Thursday 17 September
BPA000357464

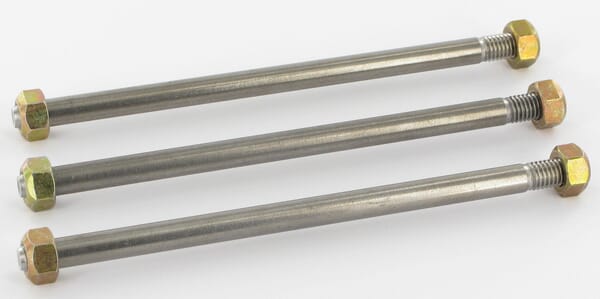

Walvoil Bolt set (3) SD 6-2 (30 NM) SD96T2
£14.94 excl.
£17.93 incl.
In stock
Expected to ship on Thursday 17 September
BPA000247183

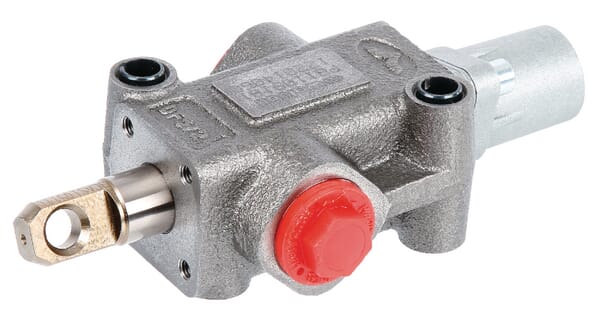

Walvoil Valve 2-way 2B 17SL 3/8 BSP DF052003
£85.35 excl.
£102.42 incl.
In stock
Expected to ship on Friday 18 September
BPA000357596

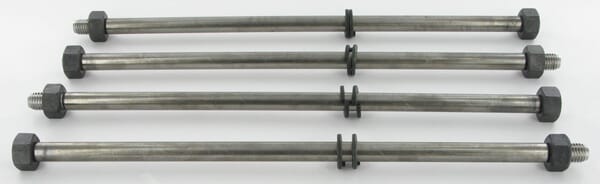

Walvoil Bolt set (4) SDS 150-4 50NM SDS9150T4
£25.55 excl.
£30.66 incl.
In stock
Expected to ship on Friday 18 September
BPA000227248

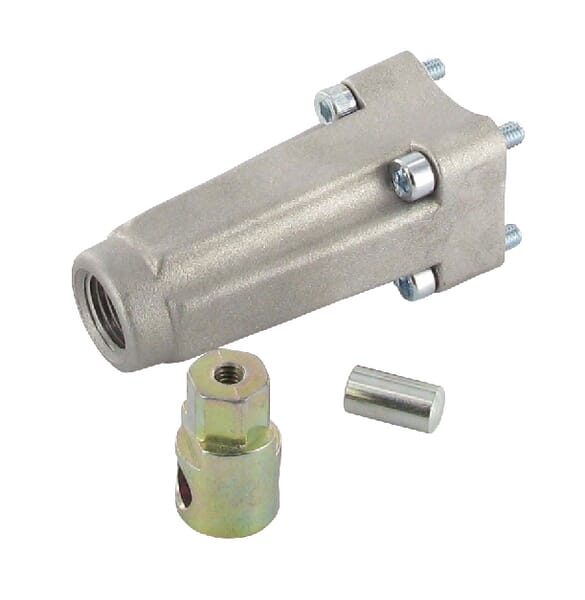

Walvoil Attachment kit P5B AKTC95
