£140.58
excl. VAT
£168.70 incl. VAT
£168.70
incl. VAT
£140.58 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Adjustable pressure range | 100-350 BAR |
|---|---|
| Adjustment type | Socket screw |
| Cartridge length | 59 mm |
| Connection 2, thread diameter | 3/8 Inch |
| Connection thread diameter | 3/8 Inch |

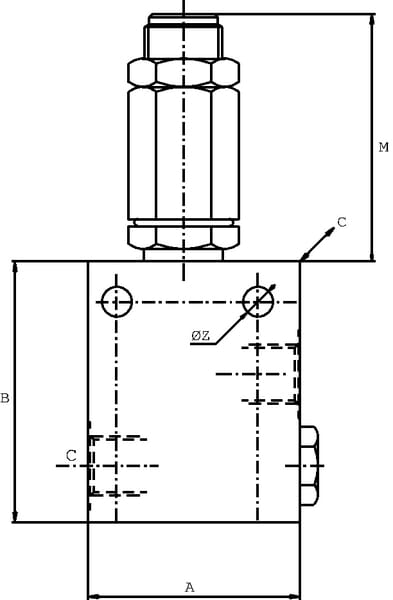

| Housing height | 74 mm |
| Housing length | 60 mm |
| Housing width | 30 mm |
| Includes | Steel housing, Differential controlled pressure relief valve, Bypass check valve for free return |
| Long description | A differential controlled sequence valve, also known as a pre-tank valve, is a valve that will open at a preset pressure. These are mainly used in multi-cylinder systems, where the sending in or out has to happen in a certain order. |
| Max. flow rate | 30 l/min |
| Max working pressure | 350 BAR |
| Mounting holes diameter | 8.5 mm |

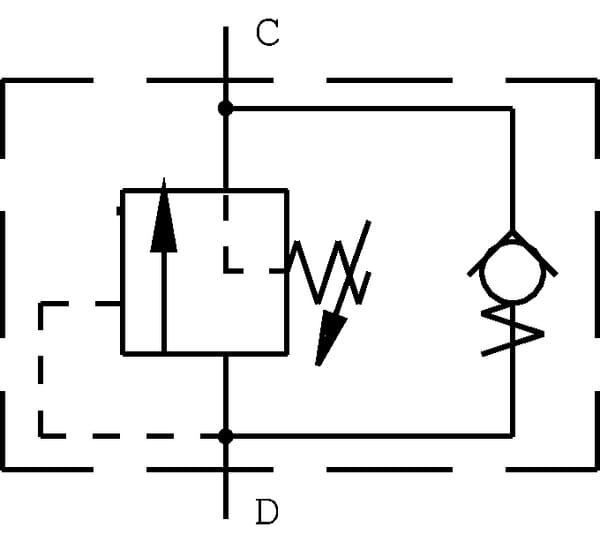

| Product details | High pressure and medium volume flow, For inline mounting, To be used as sequential switching, Version: individual parts in housing, Works from D to C, Free flow from C to D, The pressure setting depends on the load in C, No external leakage connection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1081 g |
| Dimensions | 130 × 75 × 30 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000376631

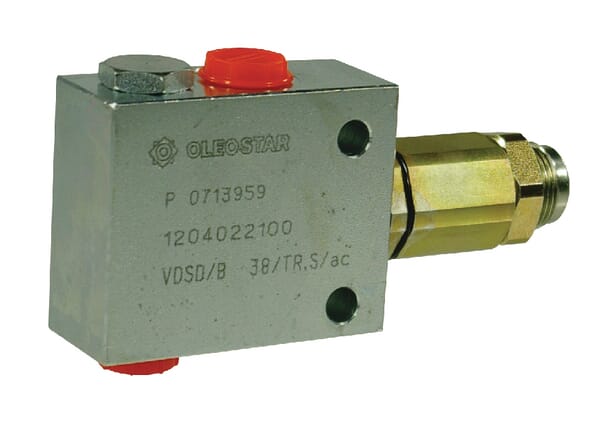

Walvoil Pressure relief valve Steel VDSDB20001ST
£186.24 excl.
£223.49 incl.
In stock
Expected to ship on Friday 18 September
BPA000102637

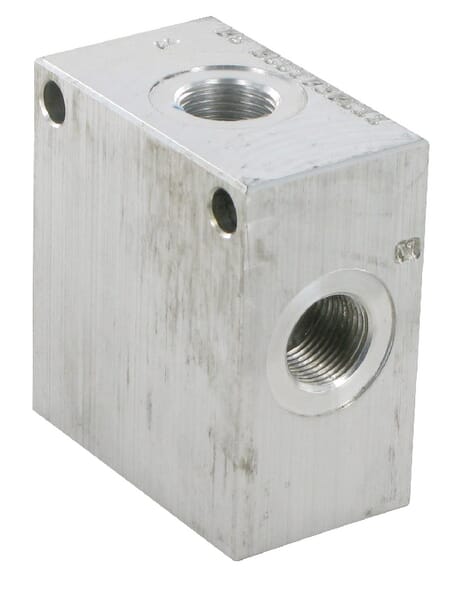

Walvoil Aluminimum housing 12/3 - 3/4" 3CC12312
£71.33 excl.
£85.60 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000365969

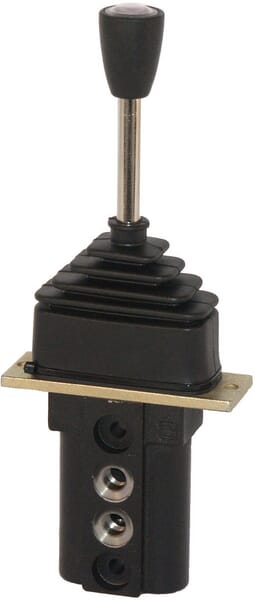

Walvoil Servo handle SV10-B/01G-001Ax2 SV10B01G
£292.33 excl.
£350.80 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000386683
Walvoil Control valve 1.5MM/ 3L/MIN VPF3EP05001
£128.39 excl.
£154.07 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000357561
Walvoil Magnet SDM122 Can-bus 4p SDM9122EME13
£835.55 excl.
£1,002.66 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000395782

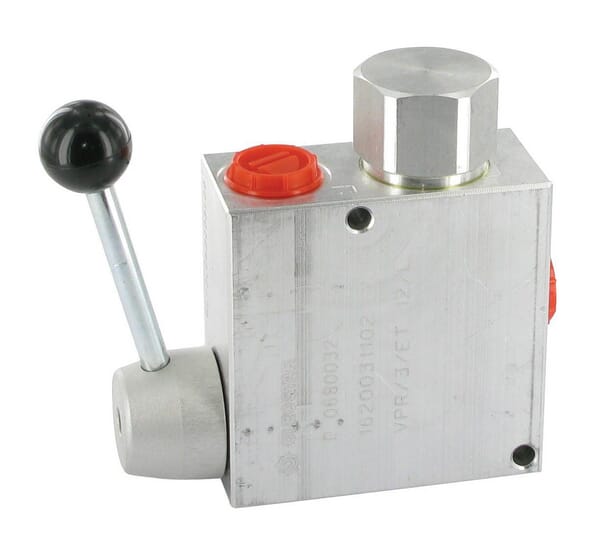

Walvoil Flow control 3-Way A12-L 3/4" VPR3ET20002
