£44.77
excl. VAT
£53.72 incl. VAT
£53.72
incl. VAT
£44.77 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

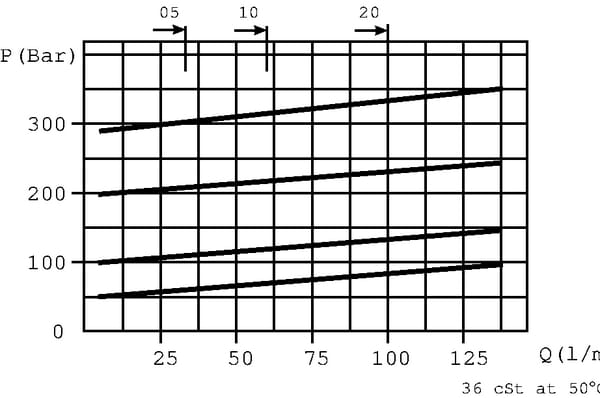

| Adjustable pressure range | 5-40 BAR |
|---|---|
| Adjustment type | Socket screw |

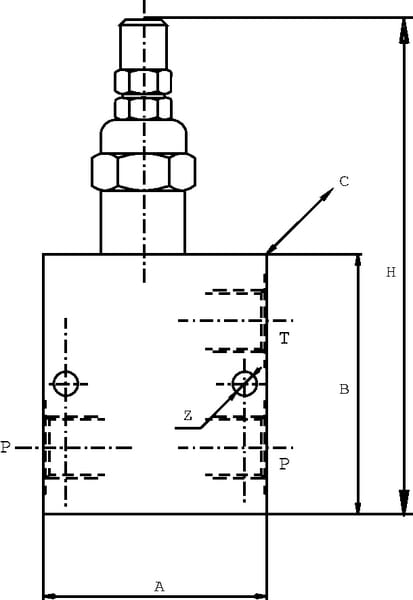

| AHousing length | 70 mm |
| Application range | For installation between lines, High pressure and moderate to high volume flow, For use as a pump safety device |
| CHousing width | 35 mm |
| Connection thread diameter | 3/8 Inch |
| Connection thread type | Inch |
| Connection type | Thread |
| Housing material | Aluminium |
| HTotal height | 129 mm |
| Max. flow rate | 35 l/min |
| Max working pressure | 210 BAR |

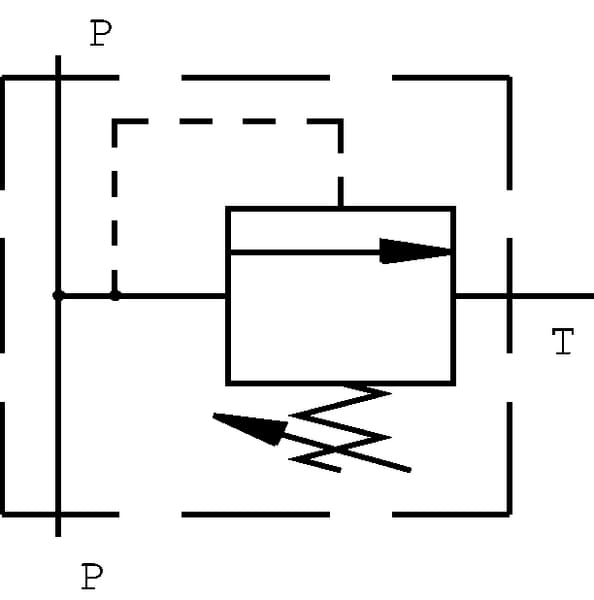

| Properties | Type: spring-loaded valve, direct control, Opens from P to T, Intermittent fast-reacting circuit |
| Type | Spring-loaded valve |
| Unit | Each |
| ZMounting holes diameter | 6.5 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 476 g |
| Dimensions | 130 × 80 × 35 mm |
| Dangerous goods | No |
You might also like
BPA000396425

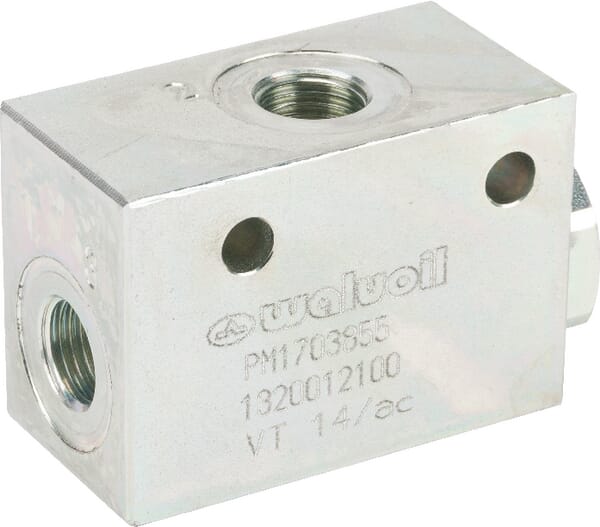

Walvoil Shuttle valve VT 05 3/8 BSP VT05001W
£42.57 excl.
£51.08 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000382540

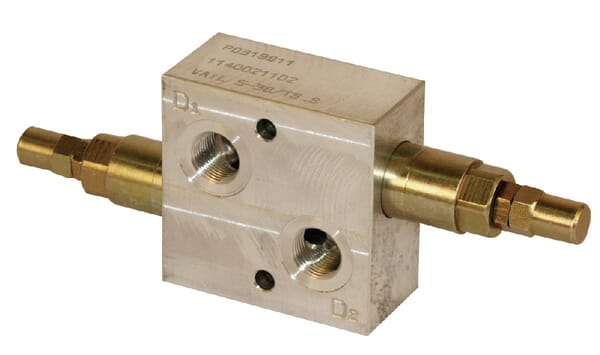

Walvoil Relief val 10 A 08 S C 1/2"BSP VAIL10001
£152.80 excl.
£183.36 incl.
In stock
Expected to ship on Friday 18 September
BPA000247322

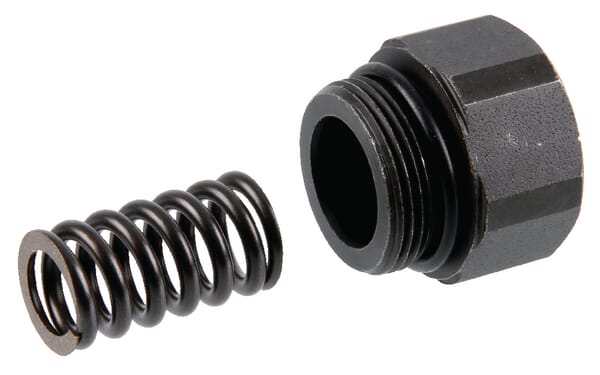

Walvoil overflow oil line connection f DFE92018Y
£16.19 excl.
£19.43 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000343280

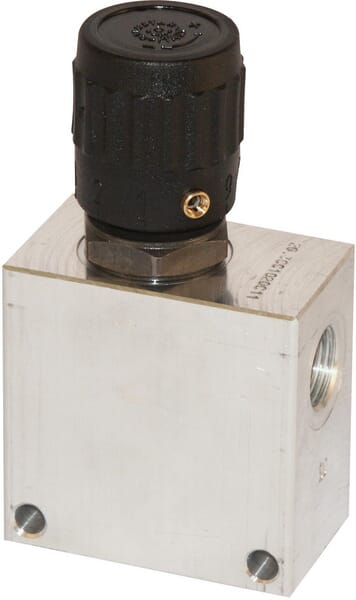

Walvoil Flow control valve 2 Way A04 A Z PU08001
£202.28 excl.
£242.74 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000247312
Walvoil Leakage oil port for DFE DFE908018Y
£14.88 excl.
£17.86 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000389030

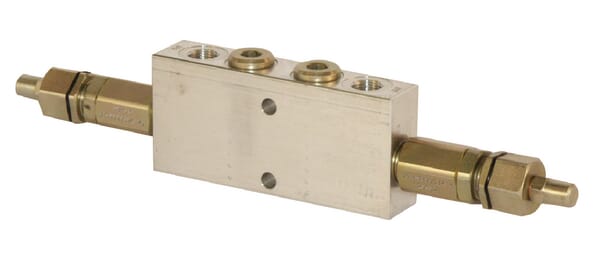

Walvoil Counter balance valve VODL/SC12 VODL10002
