£70.48
excl. VAT
£84.58 incl. VAT
£84.58
incl. VAT
£70.48 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

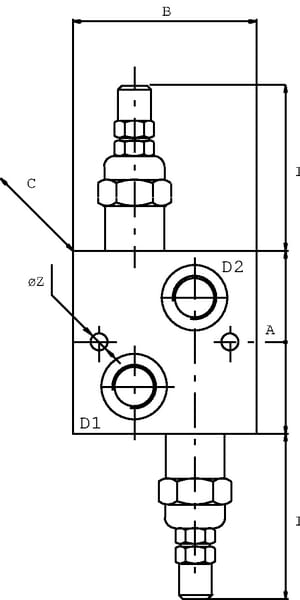

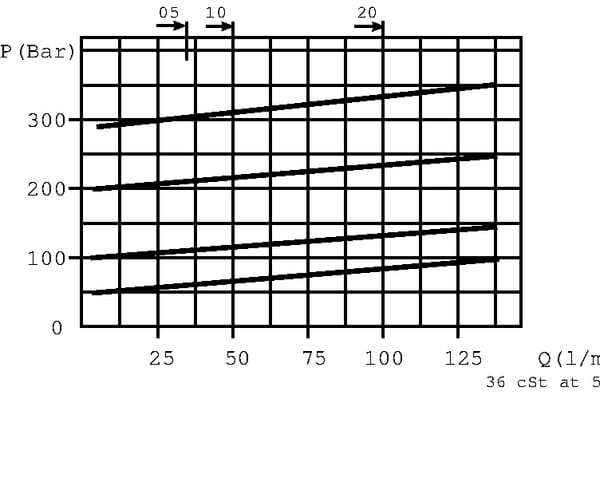

| Adjustable pressure range | 50-220 BAR |
|---|---|
| Adjustment type | Socket screw |
| AHousing height | 70 mm |
| Application range | High pressure and moderate volume flow, For use as a cushion valve for a hydraulic motor with separate pressure value, Protects hydraulic motors from pressure spikes in response to external forces that may occur due to an abrupt stop or change of rotational direction |
| BHousing length | 70 mm |
| CHousing width | 35 mm |
| Connection thread diameter | 3/8 Inch |
| Connection thread type | Inch |
| Connection type | Thread |
| JCartridge length | 60 mm |
| Max. flow rate | 25 l/min |
| Max working pressure | 210 BAR |

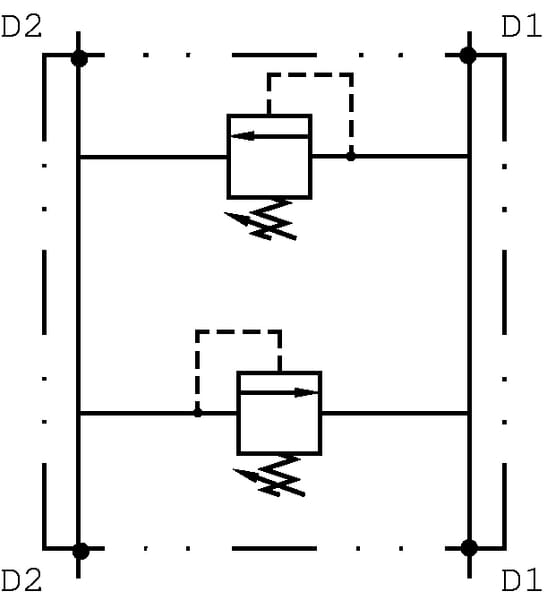

| Properties | Type: spring-loaded valve, direct control, Opens from D1 to D2 or vice versa, Intermittent fast-reacting circuit |
| Technical info | For the best possible performance, this valve should be placed as close as possible to the consumer |
| Type | Spring-loaded valve |
| Unit | Each |
| ZMounting holes diameter | 8.5 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 685 g |
| Dimensions | 187 × 71 × 53 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000376629

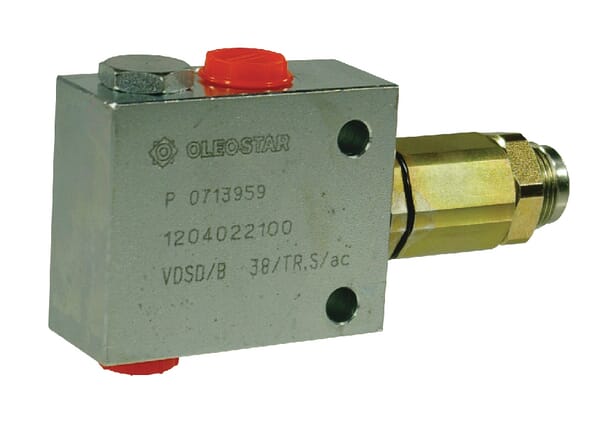

Walvoil Sequence valve Steel 1/2 " VDSDB10001ST
£165.80 excl.
£198.96 incl.
In stock
Expected to ship on Friday 18 September
BPA000247318

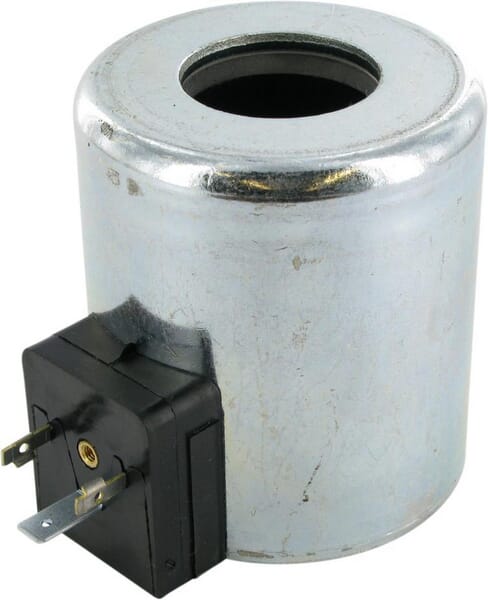

Walvoil Coil 24V for DFE valve size 10/20 > 2022 DFE91024
£70.44 excl.
£84.53 incl.
In stock
Expected to ship on Friday 18 September
BPA000384620
Walvoil Relief val V-C 3/8" 50-220 Bar VMPK05002
£67.39 excl.
£80.87 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000357152
Walvoil Control valve SD5/2-P-2x28-AET BEW.HU SD52004
£297.71 excl.
£357.25 incl.
In stock
Expected to ship on Friday 18 September
BPA000148417

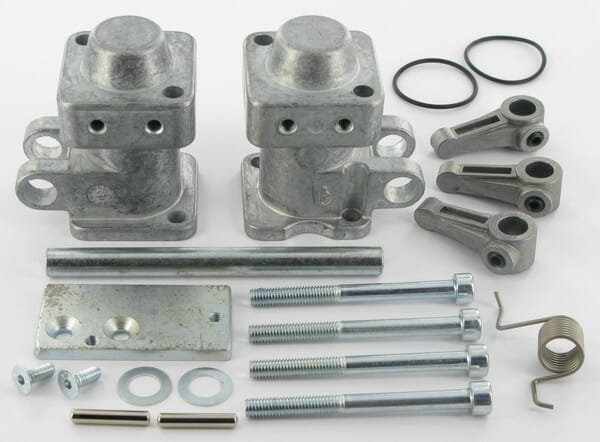

Walvoil 5KM2S6702 5KM2S6702
£56.51 excl.
£67.81 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000357414

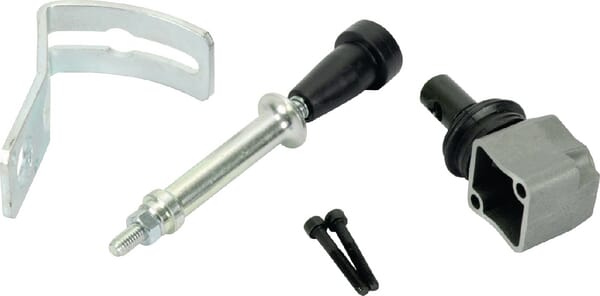

Walvoil Safety lever SD5 SD95BLEB
