£183.41
excl. VAT
£220.09 incl. VAT
£220.09
incl. VAT
£183.41 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Adjustable pressure range | 0-210 BAR |
|---|---|
| Adjustment type | Socket screw |

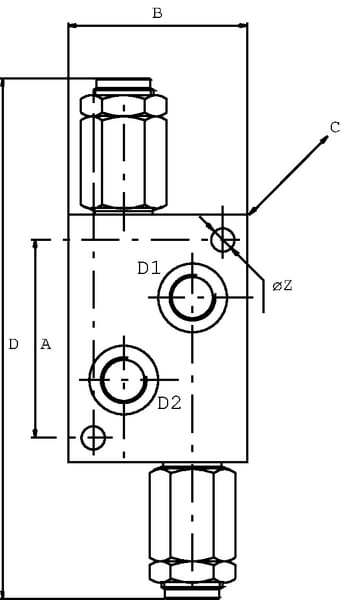

| BHousing length | 90 mm |
| Cartridge length | 57.7 mm |
| CHousing width | 30 mm |
| Connections distance | 90 mm |
| Connection thread diameter | 3/8 Inch |
| Connection thread type | Inch |
| Connection type | Thread |
| DTotal height | 194 mm |
| Housing height | 65 mm |
| Max. flow rate | 35 l/min |
| Max working pressure | 210 BAR |

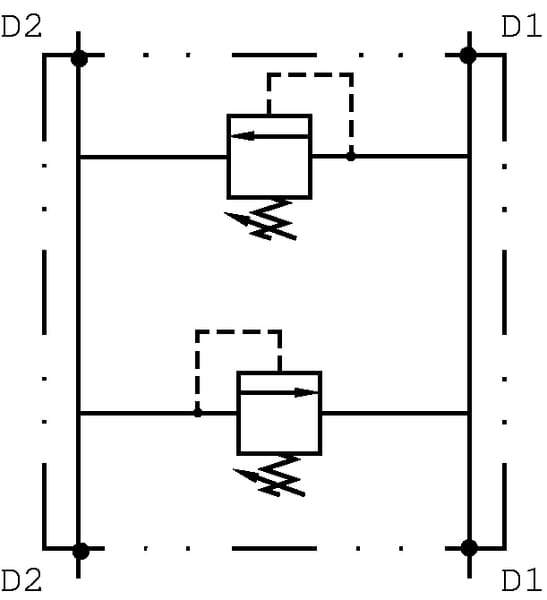

| Technical info | Double-acting pressure relief valve protects a hydro motor against occurring pressure peaks as a result of external forces which can cause an abrupt stop or the direct reversal of the direction of rotation. |
| Type | Spring-loaded differential valve |
| Unit | Each |
| ZMounting holes diameter | 8.5 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 898 g |
| Dimensions | 193 × 66 × 40 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000357126

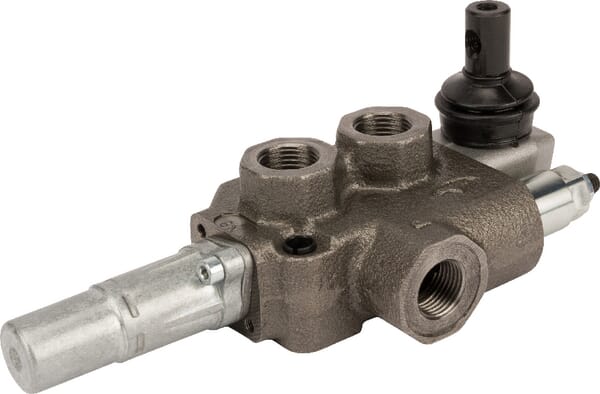

Walvoil Control valve SD4/1-8N13FZL-AET SD41013
£140.12 excl.
£168.14 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000261464

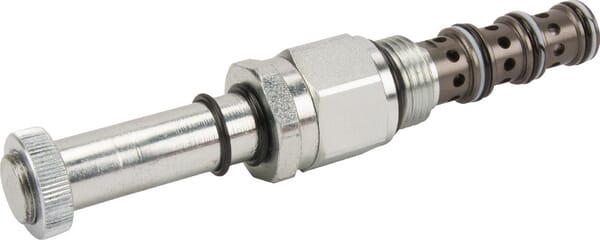

Walvoil Valve 4/2 cartridge ER10M/10B ER10M10B
£99.20 excl.
£119.04 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000357382
Walvoil Detent kit TYPE 8D TBV SD5 SD95A8D
£14.36 excl.
£17.23 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000268268
Walvoil Coil 12V DC EW9BIN12
£36.78 excl.
£44.14 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000395747

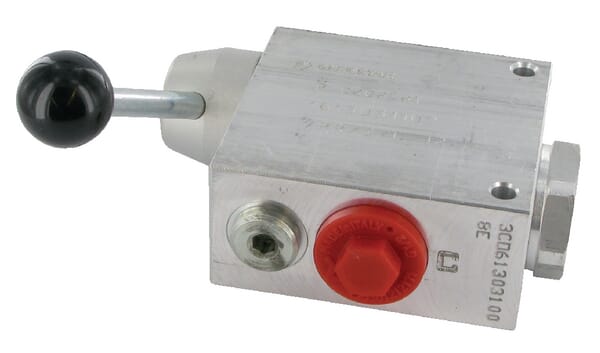

Walvoil Flow control valve 2-way VPR/2/U 12/V VPR2U12V
£205.11 excl.
£246.13 incl.
In stock
Expected to ship on Friday 18 September
BPA000357594

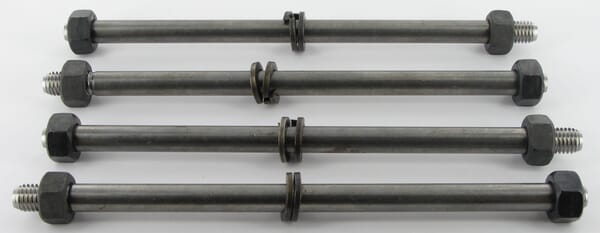

Walvoil Bolt set (4) SDS 150-2 50NM SDS9150T2
