£210.53
excl. VAT
£252.64 incl. VAT
£252.64
incl. VAT
£210.53 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details

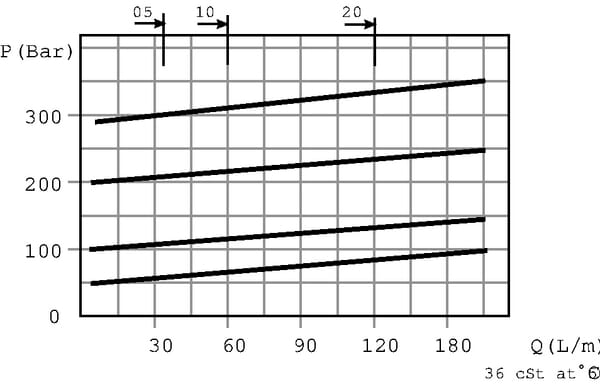

| Adjustable pressure range | 0-210 BAR |
|---|---|
| Adjustment type | Socket screw |

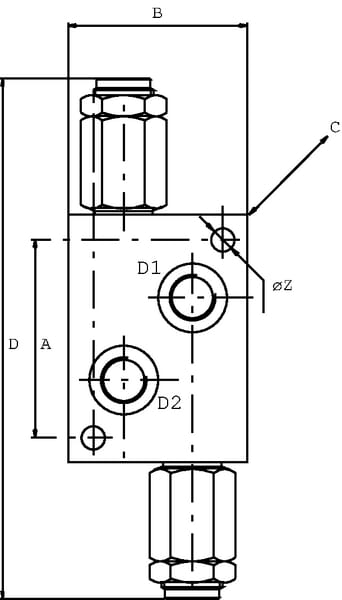

| BHousing length | 100 mm |
| Cartridge length | 56.2 mm |
| CHousing width | 35 mm |
| Connections distance | 100 mm |
| Connection thread diameter | 1/2 Inch |
| Connection thread type | Inch |
| Connection type | Thread |
| DTotal height | 208 mm |
| Housing height | 70 mm |
| Max. flow rate | 60 l/min |
| Max working pressure | 210 BAR |

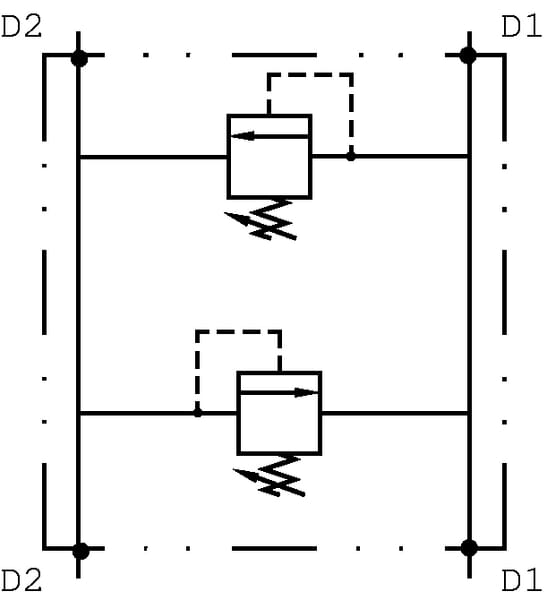

| Technical info | Double-acting pressure relief valve protects a hydro motor against occurring pressure peaks as a result of external forces which can cause an abrupt stop or the direct reversal of the direction of rotation. |
| Type | Spring-loaded differential valve |
| Unit | Each |
| ZMounting holes diameter | 8.5 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1150 g |
| Dimensions | 215 × 70 × 35 mm |
| Dangerous goods | No |
You might also like
BPA000357345

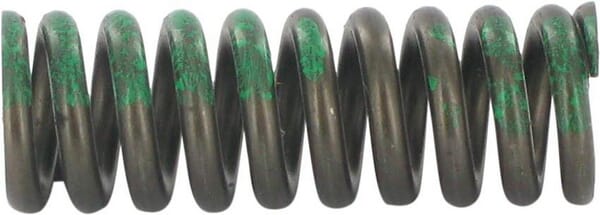

Walvoil Spring 2, VMPK20, 30-80 Bar, groen SD918V02
