£271.34
excl. VAT
£325.61 incl. VAT
£325.61
incl. VAT
£271.34 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

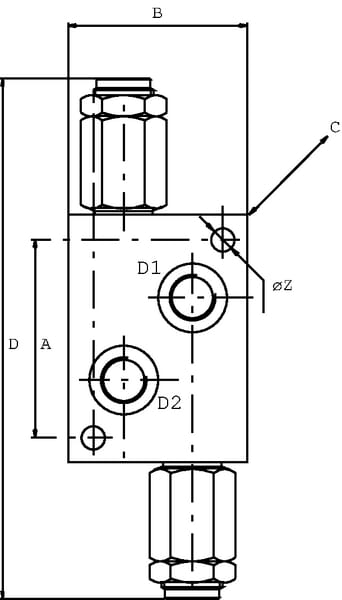

| Adjustable pressure range | 0-210 BAR |
|---|---|
| Adjustment type | Socket screw |
| BHousing length | 110 mm |
| Cartridge length | 68.8 mm |
| CHousing width | 40 mm |
| Connections distance | 110 mm |
| Connection thread diameter | 3/4 Inch |
| Connection thread type | Inch |
| Connection type | Thread |
| DTotal height | 242 mm |
| Housing height | 90 mm |
| Max. flow rate | 120 l/min |
| Max working pressure | 210 BAR |

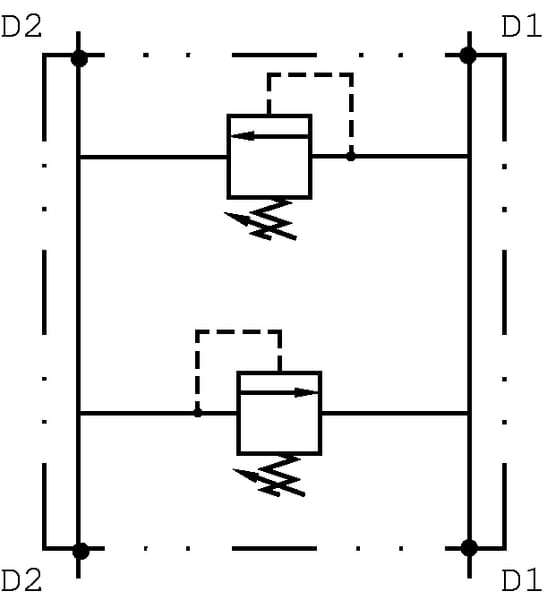

| Technical info | Double-acting pressure relief valve protects a hydro motor against occurring pressure peaks as a result of external forces which can cause an abrupt stop or the direct reversal of the direction of rotation. |
| Type | Spring-loaded differential valve |
| Unit | Each |
| ZMounting holes diameter | 8.5 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1995 g |
| Dimensions | 300 × 150 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000357294

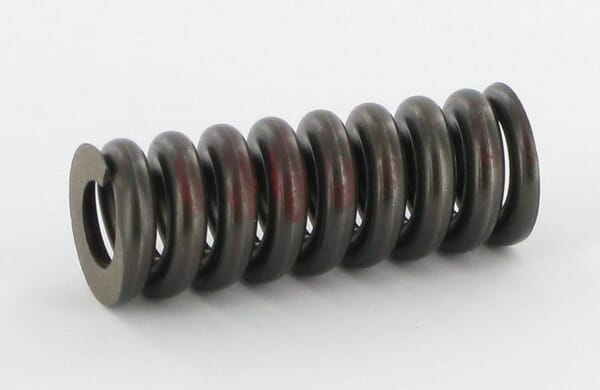

Walvoil Spring 4 Red 180-400 Bar VMPK10 SD911V04
£3.82 excl.
£4.58 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000382092

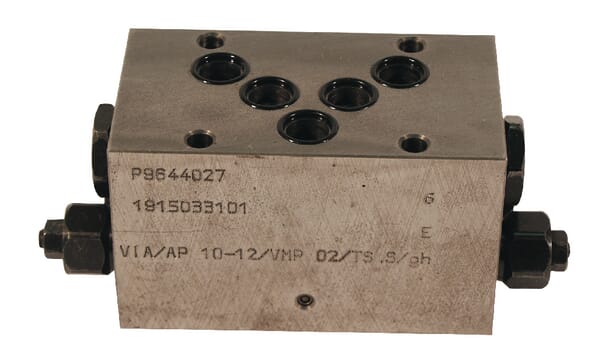

Walvoil Valve VIAAP1040
£347.12 excl.
£416.54 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000357001
Walvoil Section SD25-RE CARRY-OVER SD25RE
£196.78 excl.
£236.14 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000357332

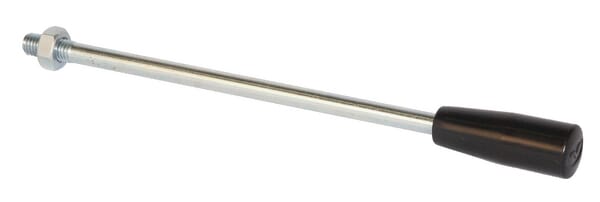

Walvoil Handle AL01 12X250 SD918L01
£8.29 excl.
£9.95 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000227686

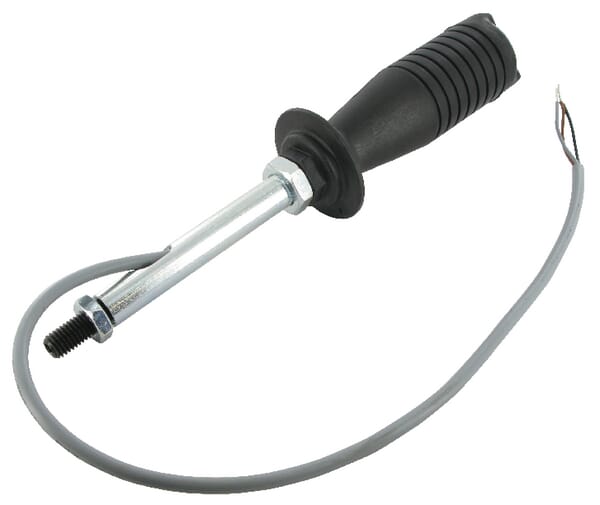

Walvoil Control lever, M10x250, 1x switch on/off/on with spring return AL17T
£43.89 excl.
£52.67 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000357164

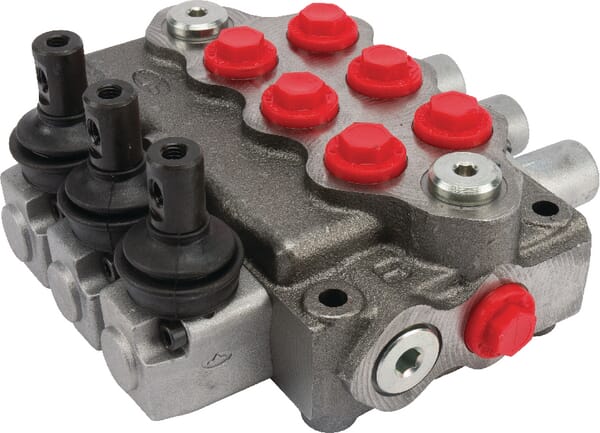

Walvoil Control valve SD5/3-P-3x18L-AET SD53006
