£216.79
excl. VAT
£260.15 incl. VAT
£260.15
incl. VAT
£216.79 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September

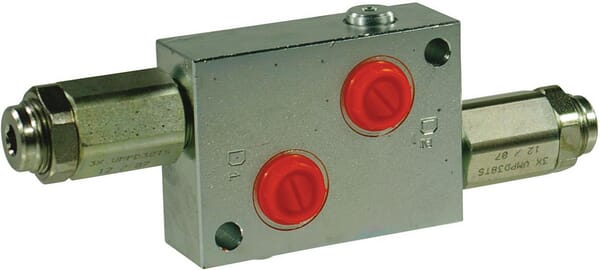

Product details
| Adjustable pressure range | 5-210 BAR |
|---|---|
| Adjustment type | Socket screw |

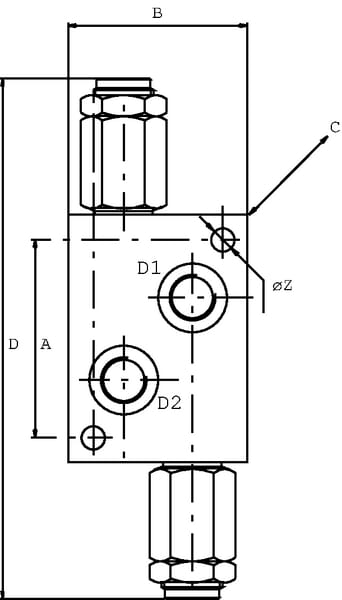

| BHousing length | 100 mm |
| Cartridge length | 56.2 mm |
| CHousing width | 40 mm |
| Connections distance | 100 mm |
| Connection thread diameter | 1/2 Inch |
| Connection thread type | Inch |
| Connection type | Thread |
| DTotal height | 214 mm |
| Housing height | 70 mm |
| Max. flow rate | 60 l/min |
| Max working pressure | 350 BAR |
| Technical info | This double-acting pressure relief valve protect a hydro motor against occurring pressure peaks as a result of external forces which appear at an abrupt stop or the direct reversal of the direction of rotation. |
| Type | Spring-loaded differential valve |
| Unit | Each |
| ZMounting holes diameter | 8.5 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2030 g |
| Dimensions | 200 × 80 × 48 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000382524
Walvoil Relief valve steel A08-SA 1/2" BSP 1/2" BSP VADDL10002ST
£234.65 excl.
£281.58 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000395767

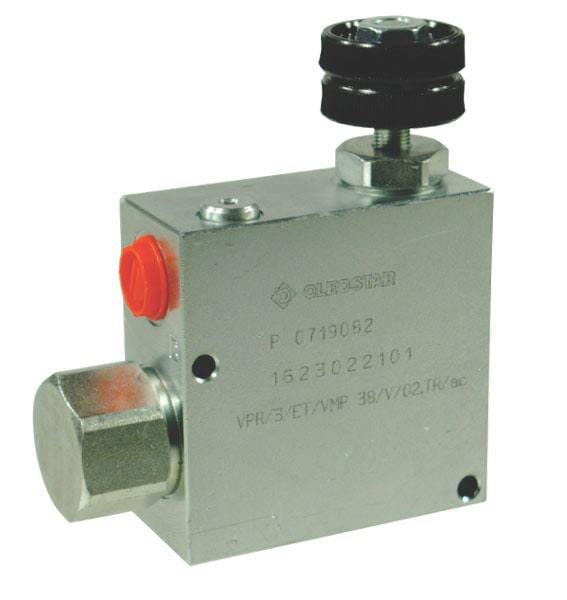

Walvoil Flow Control valve Steel VPR3ET05001ST
£116.40 excl.
£139.68 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000258308
Walvoil Cartridge Valve 2/2 NO 40l/min EH08M10NB
£144.06 excl.
£172.87 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000366041
Walvoil Servo foot pedals SV40-B/001C-001C double SV40B
£375.97 excl.
£451.16 incl.
In stock
Expected to ship on Monday 21 September
BPA000357432

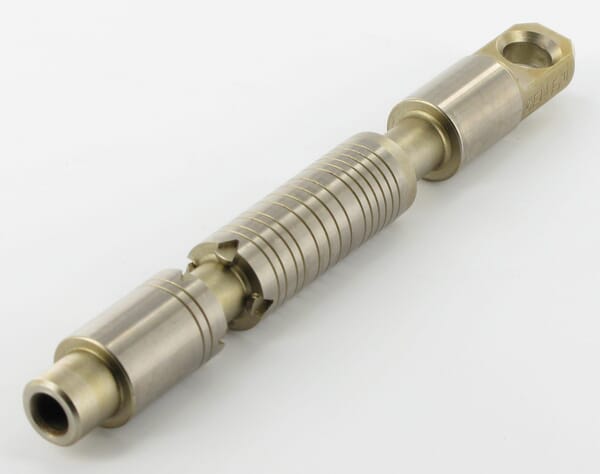

Walvoil Piston Type 3 SD95P3
