£265.04
excl. VAT
£318.05 incl. VAT
£318.05
incl. VAT
£265.04 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

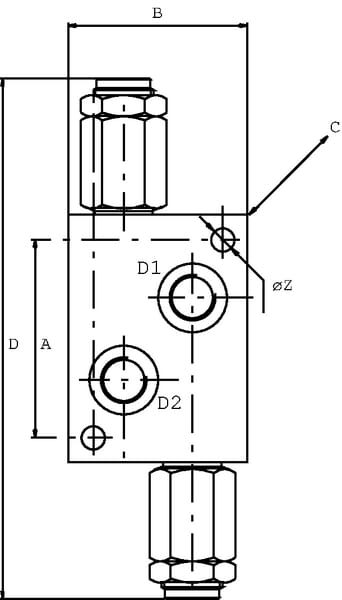

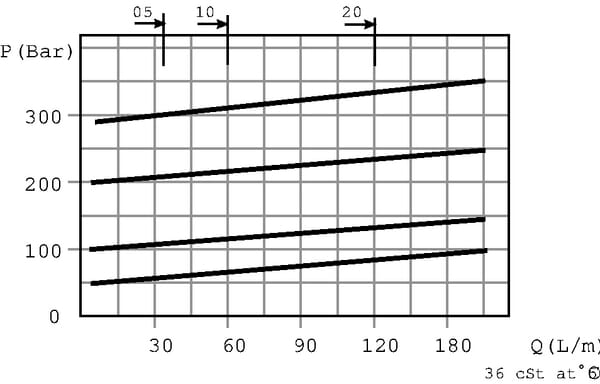

| Adjustable pressure range | 50-350 BAR |
|---|---|
| Adjustment type | Socket screw |
| BHousing length | 110 mm |
| Cartridge length | 68.8 mm |
| CHousing width | 60 mm |
| Connections distance | 110 mm |
| Connection thread diameter | 3/4 Inch |
| Connection thread type | Inch |
| Connection type | Thread |
| DTotal height | 242 mm |
| Housing height | 90 mm |
| Max. flow rate | 120 l/min |
| Max working pressure | 350 BAR |

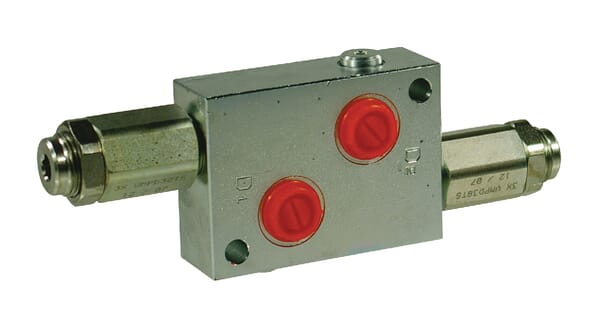

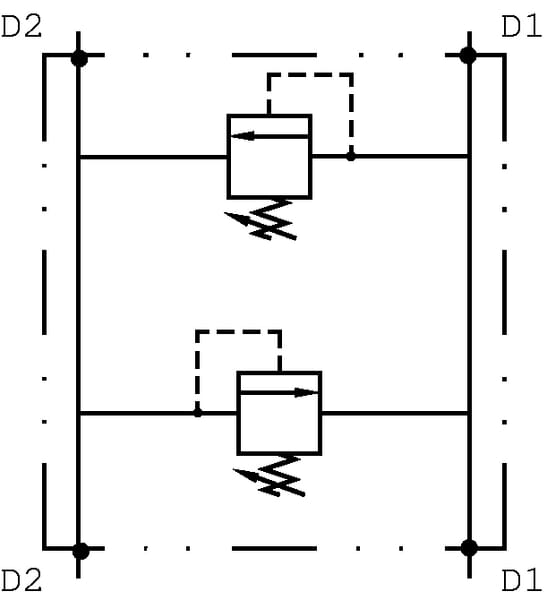

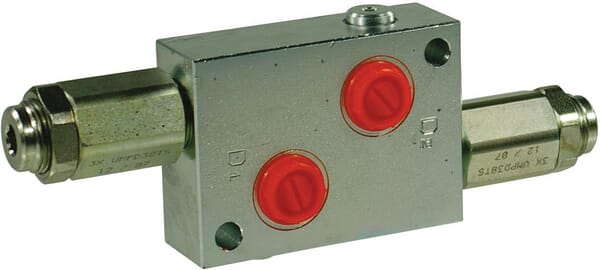

| Technical info | This double-acting pressure relief valve protect a hydro motor against occurring pressure peaks as a result of external forces which appear at an abrupt stop or the direct reversal of the direction of rotation. |
| Type | Spring-loaded differential valve |
| Unit | Each |
| ZMounting holes diameter | 8.5 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3360 g |
| Dimensions | 237 × 90 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000357613

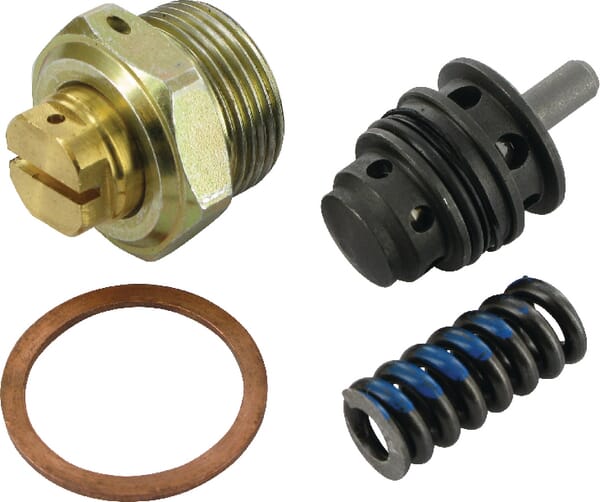

Walvoil Anti-shock valve PB1-PB2 SDS150 100-250 bar SDS9150VPB1
£67.23 excl.
£80.68 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000357547

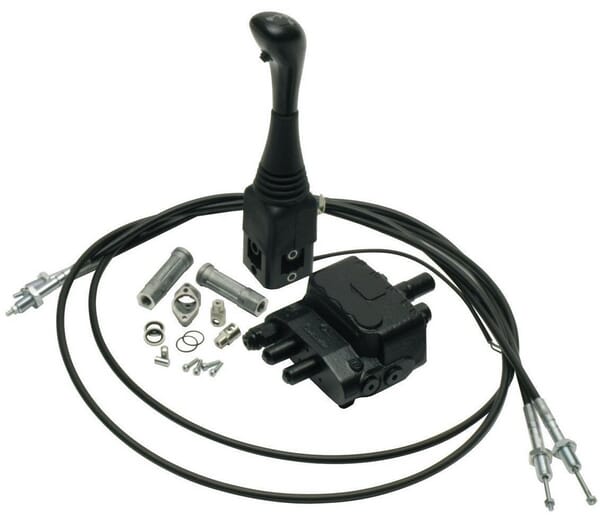

Walvoil Front loader valve set, SDM102/2-2000 SDM10222000
£537.72 excl.
£645.26 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000357473
Walvoil Spring 3 Blue 120-220 Bar VMPY 5 SD96V23
£2.12 excl.
£2.54 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000357444

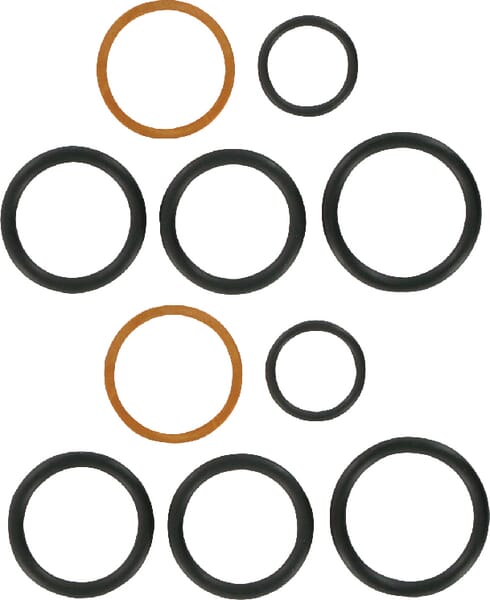

Walvoil Gasket set for SD5-2 SD95VAFD2
£7.33 excl.
£8.80 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000247279

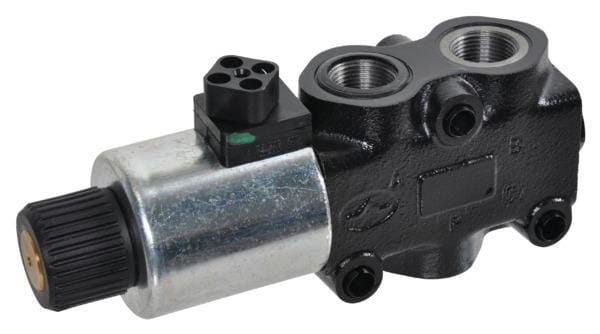

Walvoil Valve 3/2 24v DC 05 3A G 06 2 DFE0523002
£104.84 excl.
£125.81 incl.
In stock
Expected to ship on Friday 18 September
BPA000357328

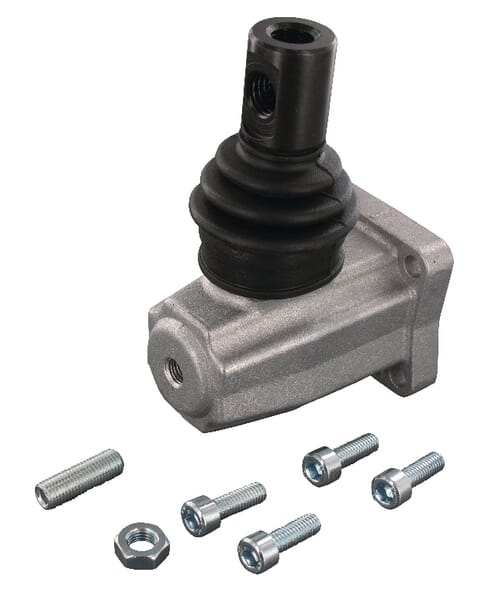

Walvoil Stroke limit valve, FA SD18/25 SD918BFA
