£256.68
excl. VAT
£308.02 incl. VAT
£308.02
incl. VAT
£256.68 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

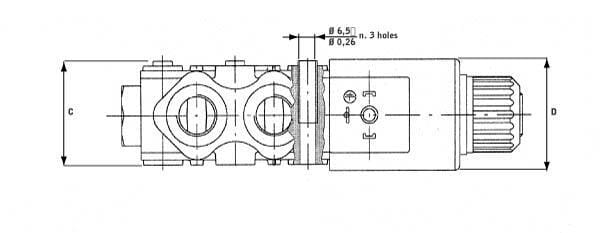

| Coil diameter | 65 mm |
|---|---|
| Connection thread diameter | 3/4 Inch |
| Connection thread type | BSP |
| Distance between mounting holes (length) | 60 mm |
| Length of coil with nut | 107 mm |

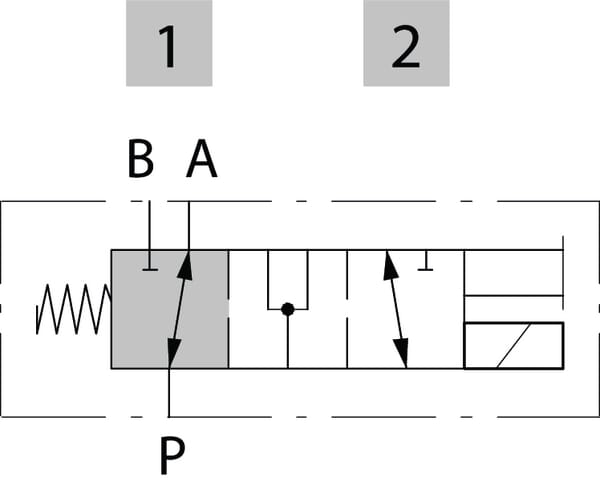

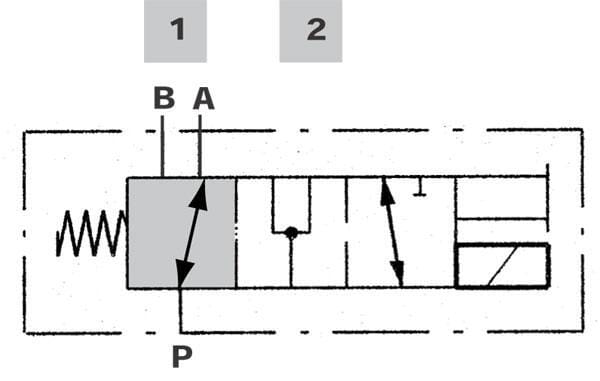

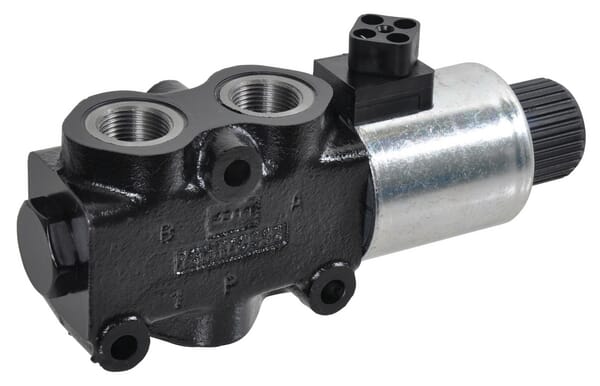

| Long description | Transfer valves allow oil flows to be switched between multiple users in a simple and compact way. This makes it possible to control multiple hydraulic functions with one control valve. These Walvoil 6/2 shuttle valves are available in several construction sizes and electrical voltage versions. The Walvoil DFE valve is designed for tough applications and can withstand extreme environmental conditions, making it ideally suited for use in agriculture, construction and industry. |

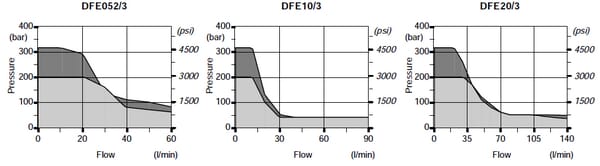

| Max. flow rate | 140 l/min |
| Max working pressure | 200 BAR |
| Plunger type code | A |

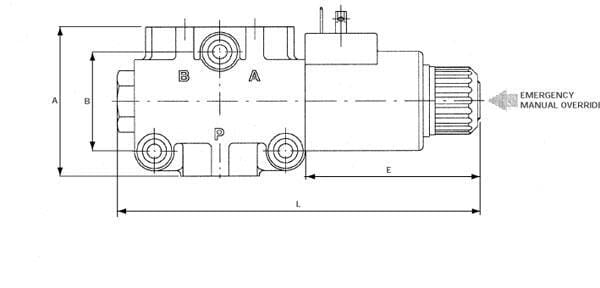

| Product details | Max. Operating pressure: 200 bar without leakage oil connection, 315 bar with leakage oil connection, Limited switchability under pressure, With emergency control |
| Supply voltage | 12 V |
| Total height | 85 mm |
| Total length | 226 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 4251 g |
| Dimensions | 225 × 111 × 69 mm |
| Dangerous goods | No |
You might also like
BPA000357382
Walvoil Detent kit TYPE 8D TBV SD5 SD95A8D
£14.36 excl.
£17.23 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000247195

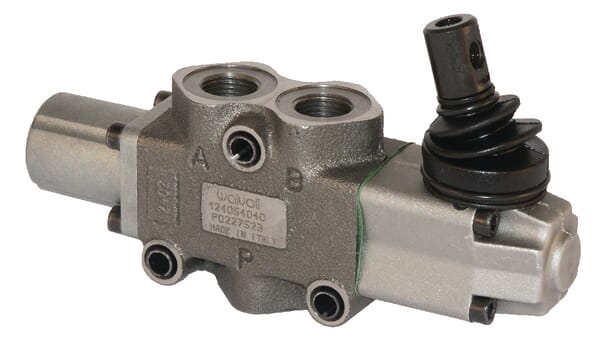

Walvoil Valve 3-way DF5/3A-12L DF053007
£138.35 excl.
£166.02 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000357238

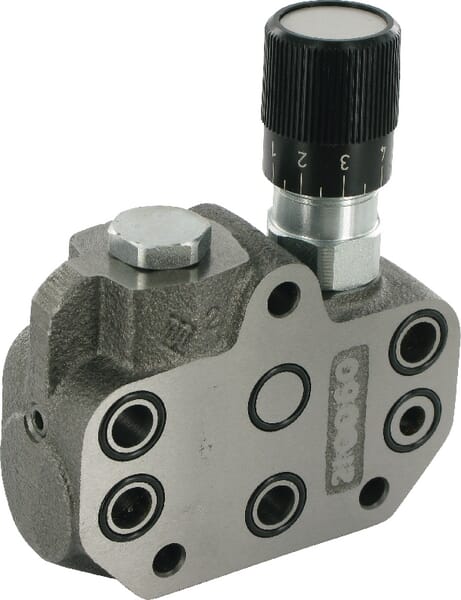

Walvoil Section Flow reg. SD6/DFG SD61DFG
£278.11 excl.
£333.73 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000357424
Walvoil Plunger type 1-CEX SD5 SD95P1CEX
£24.87 excl.
£29.84 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000247210
Walvoil Valve 3-way 3A-17L 1/2 BSP DF103001
£135.43 excl.
£162.52 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000357160

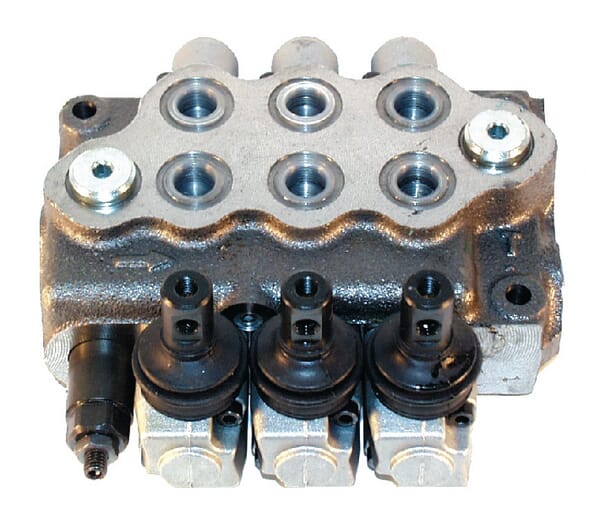

Walvoil Control valve SD5/3-18-18-38L AET SD53002
