£659.40
excl. VAT
£791.28 incl. VAT
£791.28
incl. VAT
£659.40 excl. VAT
Free shipping
In stock
Expected to ship on Friday 25 September
Product details

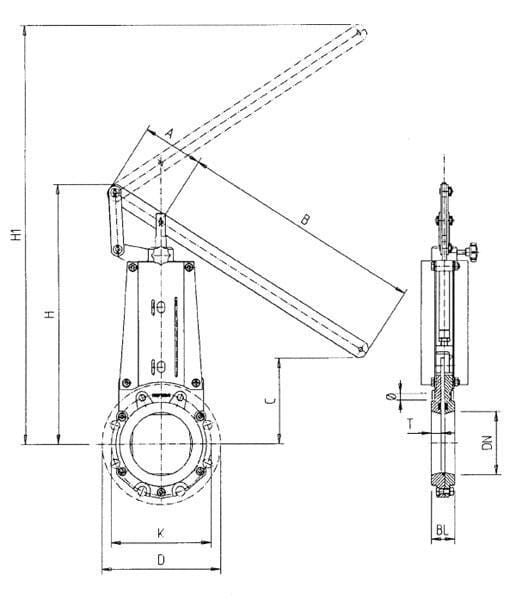

| ALever length - short side | 126 mm |
|---|---|
| Application range | Biogas plants: food scraps, manure, renewables (renewable raw materials) etc., Wastewater treatment plants: untreated wastewater, raw sludge, faecal matter etc., Sugar industry: beet washing plant etc., Food industry: conveyors for cereals, vegetables etc., Pulp and paper industry |
| Benefits | 100% waterproof, Long service life, High level of operational reliability |
| BLever length - long side | 454 mm |
| BLFlange thickness | 52 mm |
| Details | Connection flange valve with quick-release handle control, Pipe boot sealed by sealing on the narrow side of the plate, Adjustable transverse seal prevents medium from leaking externally, Blade-shaped valve plate shears off solid objects, No deposits thanks to scraper strips and special plate geometry |
| DFlange outside diameter | 220 mm |
| DNPassage hole nominal diameter | 100 mm |
| H1Total height | 717 mm |
| HPassage hole centre to top distance (closed) | 493 mm |
| KFlange mounting bolts/holes distance | 180 mm |
| ØFlange mounting bolts/holes thread diameter | M16 |
| Properties | Material from housing: GG25 with epoxy plastic coating EKB, Upper construction: stainless steel with epoxy plastic coating EKB, Plate: stainless steel 1.4404, Spindle/piston rod: stainless steel 1.4404, Seal: EPDM, Temperature range: -20 to +130°C |
| Technical info | Flanged hole: PN 10/16 - tested according to EN 1092/ISO 7005, Length: EN 558-1/ISO 5752 Series 20, Other designs can be supplied upon request |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 13000 g |
| Dimensions | 600 × 550 × 100 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000253406

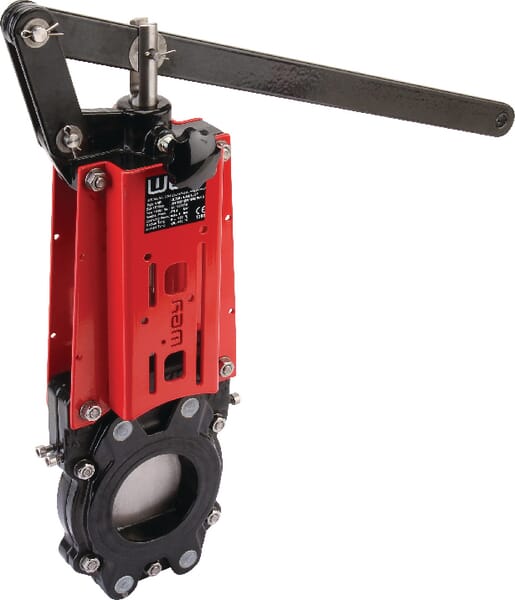

WEY Knife valve+lever DN 80 DN80VNBN
£685.69 excl.
£822.83 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000253341
WEY Metal valve+hand wheel DN150 DN150VNAN
£704.90 excl.
£845.88 incl.
In stock
Expected to ship on Friday 25 September
Free shipping
BPA000253325

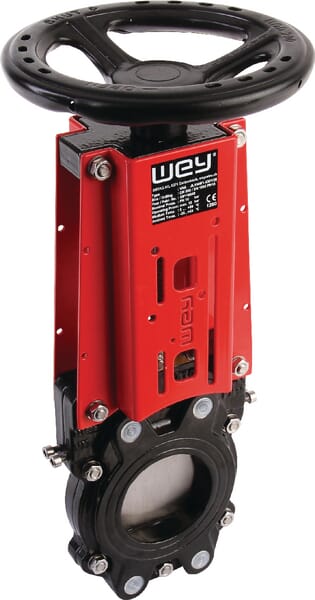

WEY Knife valve+hand wheel DN80 DN080VNAN
£510.42 excl.
£612.50 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000237234
WEY Cylinder gasket set 160 mm BCE160D
£151.81 excl.
£182.17 incl.
In stock
Expected to ship on Friday 25 September
Free shipping
BPA000253348
WEY Pneumatic metal valve DN200 DN200VNCN
£1,746.98 excl.
£2,096.38 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000232451
WEY Gas flap valve DN200 ASKDN200
£557.64 excl.
£669.17 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000278931

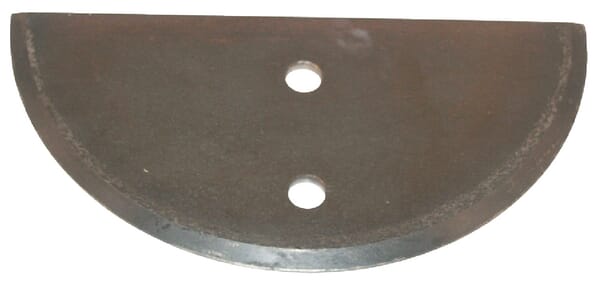

Blade Half Moon Unimix FM21156
