£981.66
excl. VAT
£1,177.99 incl. VAT
£1,177.99
incl. VAT
£981.66 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

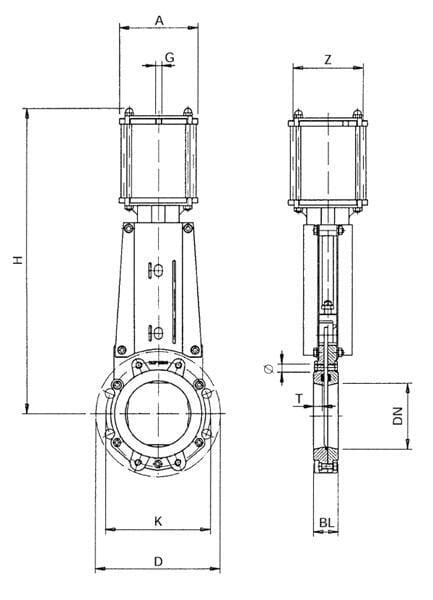

| ACylinder total width | 140 mm |
|---|---|
| Application range | Biogas plants: food scraps, manure, renewables (renewable raw materials) etc., Wastewater treatment plants: untreated wastewater, raw sludge, faecal matter etc., Sugar industry: beet washing plant etc., Food industry: conveyors for cereals, vegetables etc., Pulp and paper industry |
| Benefits | 100% waterproof, Long service life, High level of operational reliability |
| BLFlange thickness | 46 mm |

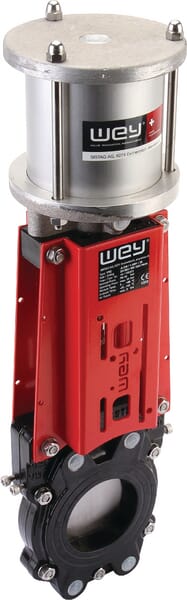

| Details | Intermediate knife gate valve actuated by dual-action pneumatic cylinder, Pipe boot sealed by sealing on the narrow side of the plate, Adjustable transverse seal prevents medium from leaking externally, Blade-shaped valve plate shears off solid objects, No deposits thanks to scraper strips and special plate geometry |
| DFlange outside diameter | 200 mm |
| DNPassage hole nominal diameter | 80 mm |
| GCylinder mounting thread diameter | 1/4 Inch |
| HPassage hole centre to lever end distance | 462 mm |
| KFlange mounting bolts/holes distance | 160 mm |
| Max working pressure | 10 BAR |
| ØFlange mounting bolts/holes thread diameter | M16 |
| Properties | Control pressure 6 to 8 bar in cylinder, Cushioned pneumatic cylinder prevents pressure shock, Housing material: GG25 with epoxy plastic coating EKB, Upper construction: stainless steel with epoxy plastic coating EKB, Plate: stainless steel 1.4404, Spindle/piston rod: stainless steel 1.4404, Seal: EPDM, Temperature range: -20 to +130°C |
| Technical info | Flanged hole: PN 10/16 - tested according to EN 1092/ISO 7005, Length: EN 558-1/ISO 5752 Series 20, Other designs can be supplied upon request |
| Unit | Each |
| ZCylinder outside diameter | 100 mm |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8719607040204 |
|---|---|
| Unit of measure | EA |
| Weight | 11407 g |
| Dimensions | 550 × 180 × 140 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000253337
WEY Metal valve+handwheel 125mm DN125VNAN
£595.00 excl.
£714.00 incl.
In stock
Expected to ship on Friday 25 September
Free shipping
BPA000253366
WEY Pneumatic knife valve DN 400 DN400VNCN
£5,944.57 excl.
£7,133.48 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000253341
WEY Metal valve+hand wheel DN150 DN150VNAN
£704.90 excl.
£845.88 incl.
In stock
Expected to ship on Friday 25 September
Free shipping
BPA000237353

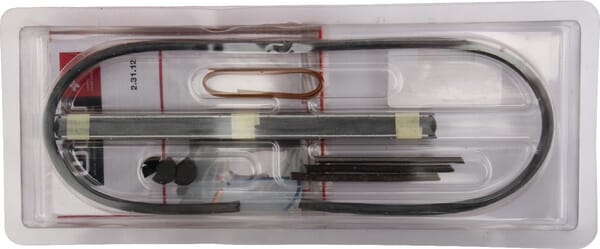

WEY Housing seal kit DN200 type 28 BDE28VN200
£340.91 excl.
£409.09 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000265038
WEY Mounting plt forsens. limit swt F27922
£14.26 excl.
£17.11 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000232448

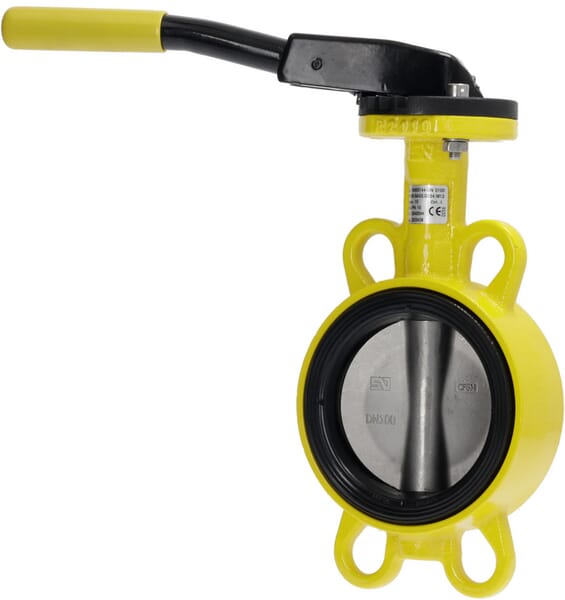

WEY Gas flap valve DN100 ASKDN100
