£1,180.21
excl. VAT
£1,416.25 incl. VAT
£1,416.25
incl. VAT
£1,180.21 excl. VAT
Free shipping
In stock
Expected to ship on Monday 28 September
Product details

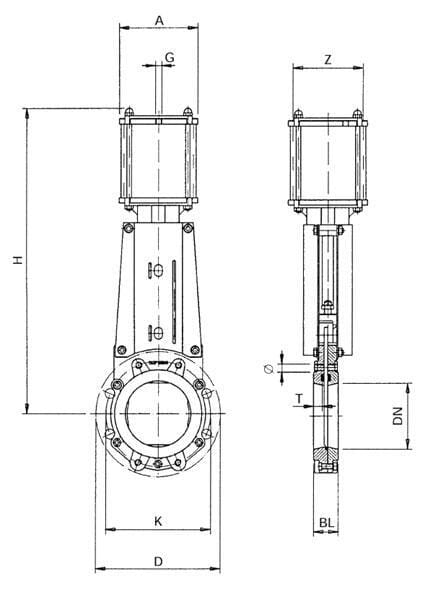

| ACylinder total width | 140 mm |
|---|---|
| Application range | Biogas plants: food scraps, manure, renewables (renewable raw materials) etc., Wastewater treatment plants: untreated wastewater, raw sludge, faecal matter etc., Sugar industry: beet washing plant etc., Food industry: conveyors for cereals, vegetables etc., Pulp and paper industry |
| Benefits | 100% waterproof, Long service life, High level of operational reliability |
| BLFlange thickness | 56 mm |

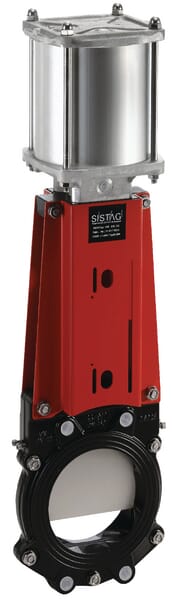

| Details | Intermediate knife gate valve actuated by dual-action pneumatic cylinder, Pipe boot sealed by sealing on the narrow side of the plate, Adjustable transverse seal prevents medium from leaking externally, Blade-shaped valve plate shears off solid objects, No deposits thanks to scraper strips and special plate geometry |
| DFlange outside diameter | 250 mm |
| DNPassage hole nominal diameter | 125 mm |
| GCylinder mounting thread diameter | 1/4 Inch |
| HPassage hole centre to lever end distance | 601 mm |
| KFlange mounting bolts/holes distance | 210 mm |
| Max working pressure | 5 BAR |
| ØFlange mounting bolts/holes thread diameter | M16 |
| Properties | Control pressure 6 to 8 bar in cylinder, Cushioned pneumatic cylinder prevents pressure shock, Housing material: GG25 with epoxy plastic coating EKB, Upper construction: stainless steel with epoxy plastic coating EKB, Plate: stainless steel 1.4404, Spindle/piston rod: stainless steel 1.4404, Seal: EPDM, Temperature range: -20 to +130°C |
| Technical info | Flanged hole: PN 10/16 - tested according to EN 1092/ISO 7005, Length: EN 558-1/ISO 5752 Series 20, Other designs can be supplied upon request |
| Unit | Each |
| ZCylinder outside diameter | 100 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 18000 g |
| Dimensions | 720 × 360 × 320 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000237358

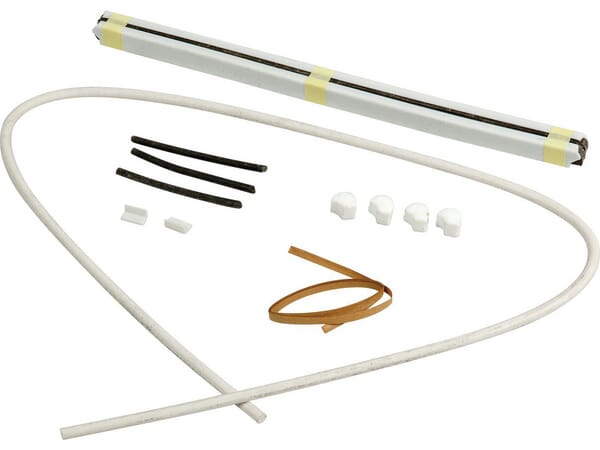

WEY Seal kit DN300 type 30 BDE30MF300
£518.26 excl.
£621.91 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000253334

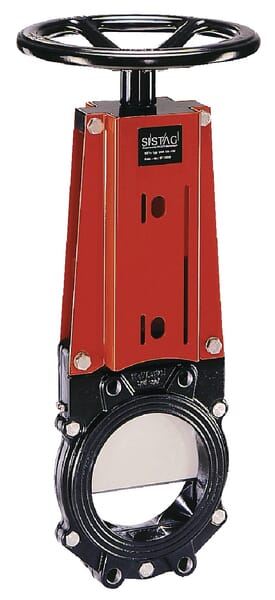

WEY Metal valve+handwheel 100mm DN100VNAN
£589.46 excl.
£707.35 incl.
In stock
Expected to ship on Friday 25 September
Free shipping
BPA000237235

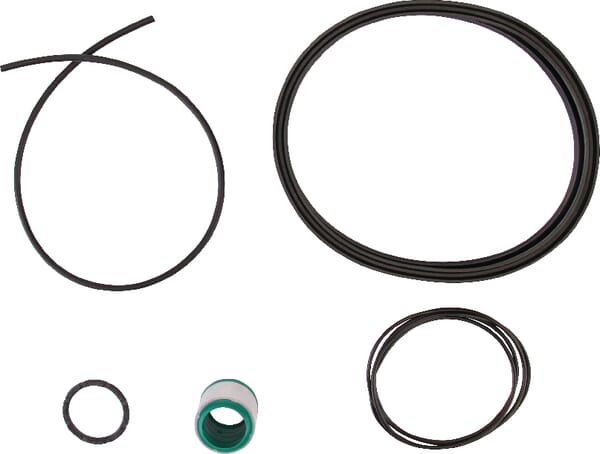

WEY Cylinder gasket set 200 mm BCE200D
£237.19 excl.
£284.63 incl.
In stock
Expected to ship on Friday 25 September
Free shipping
BPA000237343

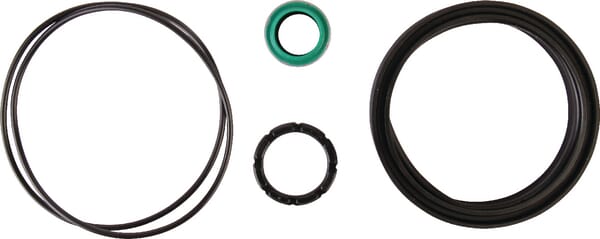

WEY Housing seal kit DN65 type 07 BDE07VN065
£218.21 excl.
£261.85 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000253396

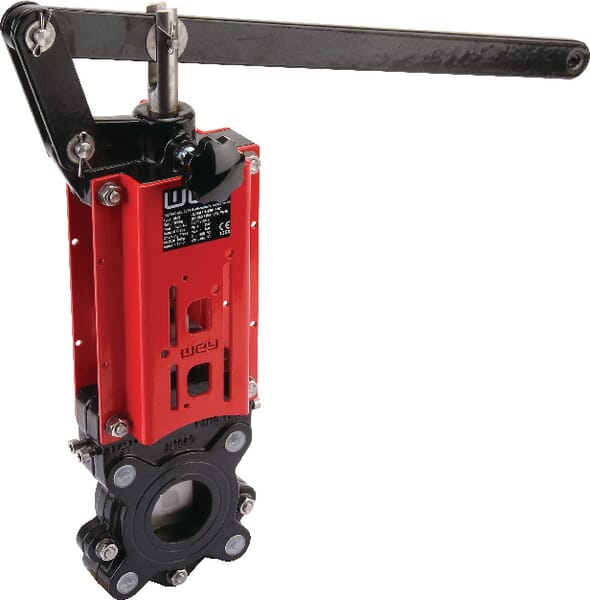

WEY Knife valve+lever DN 65 DN65VNBN
