£673.41
excl. VAT
£808.09 incl. VAT
£808.09
incl. VAT
£673.41 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 24 September
Product details
| Displacement | 50 cm³/rev |
|---|---|
| Flange code | A2 |
| Housing length | 132 mm |

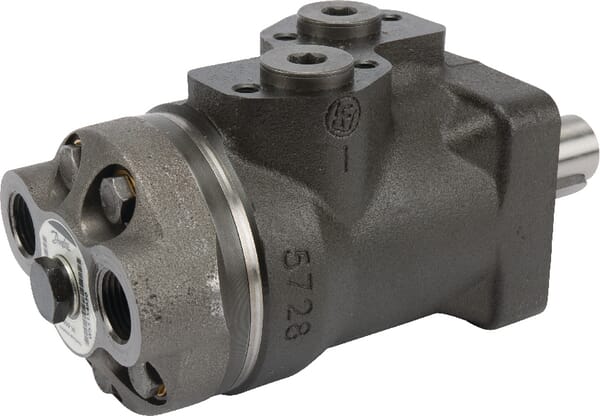

| Long description | Orbital motor type OMP with drain connection |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | BSP |
| Max. continous working pressure | 140 BAR |
| Max continuous torque | 93 N·m |
| Max. flow rate | 60 l/min |
| Max intermittend working pressure | 175 BAR |
| Max. power | 10 kW |
| Max pressure peak | 225 BAR |
| Max rotation speed | 1230 r/min |
| Min rotation speed | 10 r/min |
| Number of mounting holes | 4 |
| Original number equivalent | 1515211 |
| Product details | Robust and compact construction, High axial and radial load carrying capacity of the axle, High starting torque, Equipped with leakage oil connection so that the product can easily be used in series with other engines, Can also be used in closed-centre hydraulic systems, P1 = operating pressure continuous, P2 = int. operating pressure max. 10%/min, - P3= peak pressure, Seal can be ordered under no. OMP 9-AFD 98 (older series on request) |
| Rotor length | 6.5 mm |
| Sealing type | Standard |
| Shaft diameter | 25 mm |
| Shaft thread diameter | M10 |
| Shaft thread type | Metric |
| Shaft type | Straight parallel |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 6388 g |
| Dimensions | 300 × 163 × 160 mm |
| Dangerous goods | No |
