£987.23
excl. VAT
£1,184.68 incl. VAT
£1,184.68
incl. VAT
£987.23 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Displacement | 160 cm³/rev |
|---|---|
| Drain port thread diameter | 1/4 Inch |
| Drain port thread type | G |
| Flange shape | Standard |
| Housing length | 182.2 mm |

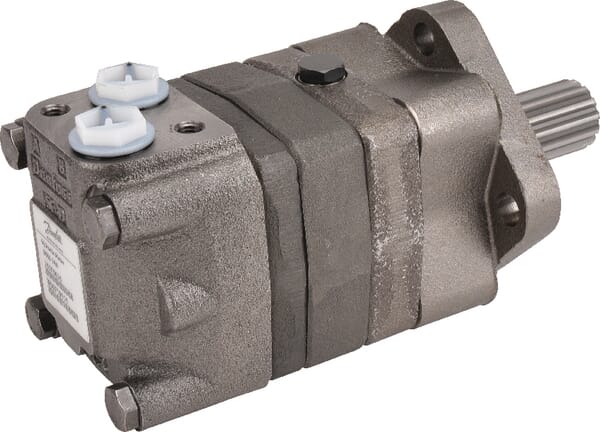

| Long description | Orbital motors are distinguished by their compact construction, large axial, radial shaft loads and high starting torque |
| Main port center to front flange distance | 137.9 mm |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | G |
| Main second port center to front flange distance | 159.9 mm |
| Max. continous working pressure | 210 BAR |
| Max continuous torque | 490 N·m |
| Max. flow rate | 75 l/min |
| Max intermittend working pressure | 260 BAR |
| Max. power | 16.5 kW |
| Max pressure peak | 280 BAR |
| Max rotation speed | 470 r/min |
| Min rotation speed | 8 r/min |
| Number of mounting holes | 4 |
| Original number equivalent | 151F0510 |
| Product details | Particularly suitable for continuous use in tough conditions, High continuous operating pressure, Very consistent operation at low speeds, Frequent reversing possible, High efficiency, Excellent start-up properties, Very high permissible radial load on the shaft is possible |
| Sealing type | Standard |
| Shaft diameter | 31.8 mm |
| Shaft number of teeth | 14 |
| Shaft type | Splined |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 11081 g |
| Dimensions | 393 × 174 × 153 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000333719
White Orbit motor short OMSS250151F0540
£957.70 excl.
£1,149.24 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000333605
White Orbit motor, shaft diameter 32.4-L,Drain OMR1001516002
£708.02 excl.
£849.62 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000333688
White Hydraulic Motor 160cc 1:10T35 OMS160151F0517
£941.04 excl.
£1,129.25 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000333599

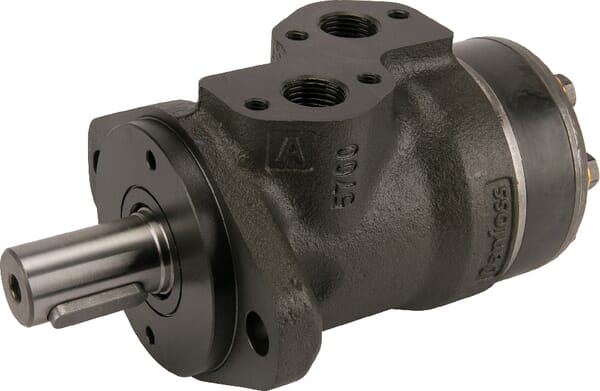

White Orbit motor, shaft diameter 25 OMPX6011186699
