£946.64
excl. VAT
£1,135.97 incl. VAT
£1,135.97
incl. VAT
£946.64 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Displacement | 125 cm³/rev |
|---|---|
| Drain port thread diameter | 1/4 Inch |
| Drain port thread type | G |
| Flange shape | Standard |

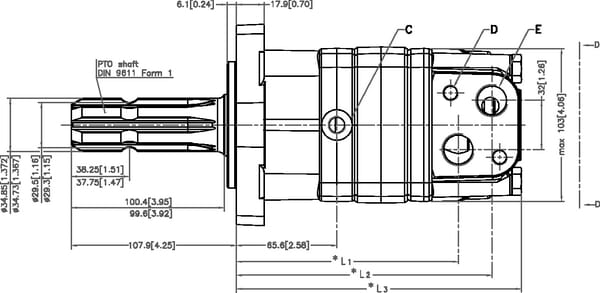

| Housing length | 176.2 mm |
| Long description | Orbital motors are distinguished by their compact construction, large axial, radial shaft loads and high starting torque |
| Main port center to front flange distance | 131.9 mm |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | G |
| Main second port center to front flange distance | 153.9 mm |
| Max. continous working pressure | 210 BAR |
| Max continuous torque | 375 N·m |
| Max. flow rate | 75 l/min |
| Max intermittend working pressure | 275 BAR |
| Max. power | 18 kW |
| Max pressure peak | 295 BAR |
| Max rotation speed | 600 r/min |
| Min rotation speed | 8 r/min |
| Number of mounting holes | 4 |
| Original number equivalent | 151F0562 |
| Product details | Particularly suitable for continuous use in tough conditions, High continuous operating pressure, Very consistent operation at low speeds, Frequent reversing possible, High efficiency, Excellent start-up properties, Very high permissible radial load on the shaft is possible |
| Sealing type | Standard |
| Shaft diameter | 35 mm |
| Shaft number of teeth | 6 |
| Shaft type | Straight parallel |
| Unit | Each |
Logistics
| EAN | 8719607084635 |
|---|---|
| Unit of measure | EA |
| Weight | 10989 g |
| Dimensions | 395 × 175 × 160 mm |
| Dangerous goods | No |
