£191.45
excl. VAT
£229.74 incl. VAT
£229.74
incl. VAT
£191.45 excl. VAT
Free shipping
In stock
Expected to ship on Wednesday 23 September
Product details
| Displacement | 20 cm³/rev |
|---|---|
| Drain port thread diameter | 1/8 Inch |
| Drain port thread type | G |

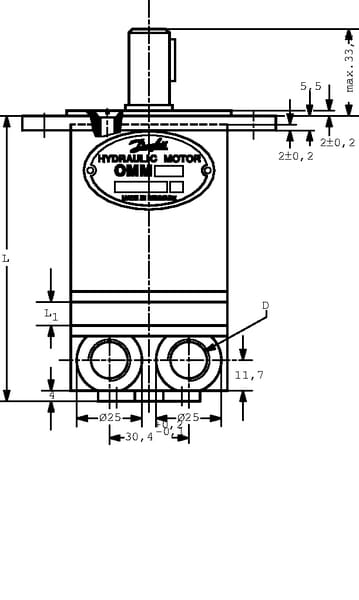

| L1Rotor length | 8.5 mm |
| LHousing length | 112.5 mm |
| Long description | Orbital motors are distinguished by their compact construction and high starting torque. |
| Main port thread diameter | 3/8 Inch |
| Main port thread type | G |
| Max. continous working pressure | 100 BAR |
| Max continuous torque | 25 N·m |
| Max. flow rate | 20 l/min |
| Max intermittend working pressure | 140 BAR |
| Max. power | 2.4 kW |
| Max pressure peak | 200 BAR |
| Max rotation speed | 1000 r/min |
| Min rotation speed | 30 r/min |
| Number of mounting holes | 3 |
| Original number equivalent | 151G0005 |
| Product details | Suitable for continuous operation at medium pressure or short-term operation at high pressure, Robust and compact design, Refer to technical information on maximum radial and axial loads, Belongs to the series of small orbit motors, Available with rear or side connections, A variety of shaft designs are available |
| Sealing type | Standard |
| Shaft diameter | 16 mm |
| Shaft thread diameter | M6 |
| Shaft thread type | Metric |
| Shaft type | Straight parallel |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2178 g |
| Dimensions | 194 × 95 × 93 mm |
| Dangerous goods | No |
