£397.68
excl. VAT
£477.22 incl. VAT
£477.22
incl. VAT
£397.68 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Displacement | 250 cm³/rev |
|---|---|
| Drain port thread diameter | 1/4 Inch |
| Drain port thread type | G |
| Flange code | A2 |
| Flange diameter | 82.5 mm |
| Flange shape | Oval |
| Housing length | 159.2 mm |

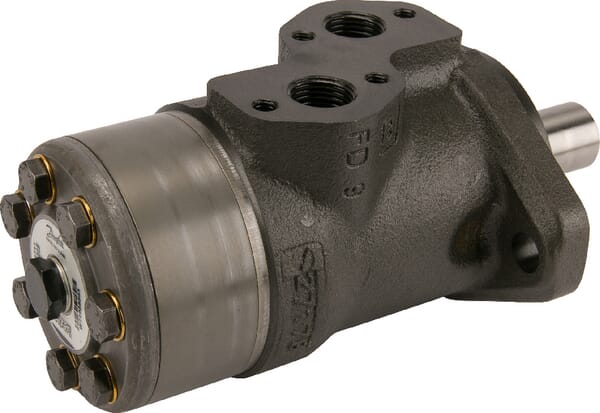

| Long description | Orbital motor offers compact construction and simple mounting. High torque and shaft load, because of shorter distance from mounting flange to the point of load application. |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | G |
| Max. continous working pressure | 120 BAR |
| Max continuous torque | 400 N·m |
| Max. flow rate | 60 l/min |
| Max intermittend working pressure | 155 BAR |
| Max. power | 8.4 kW |
| Max rotation speed | 250 r/min |
| Min. starting pressure | 5 BAR |
| Min. starting torque | 375 N·m |
| Mounting holes circle diameter | 106.4 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Product details | High starting torque, With leak oil outlet, Rotor design, Wide shaft slip bearing, Recessed flange mounting, Option of direct wheel hub mounting |
| Sealing type | High pressure |

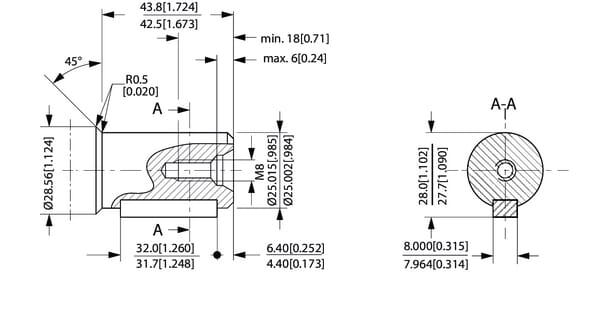

| Shaft diameter | 25 mm |
| Shaft type | Cylindrical |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7152 g |
| Dimensions | 300 × 165 × 155 mm |
| Dangerous goods | No |
