£771.31
excl. VAT
£925.57 incl. VAT
£925.57
incl. VAT
£771.31 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Displacement | 160 cm³/rev |
|---|---|
| Drain port thread diameter | 1/4 Inch |
| Drain port thread type | G |
| Flange code | A2 |

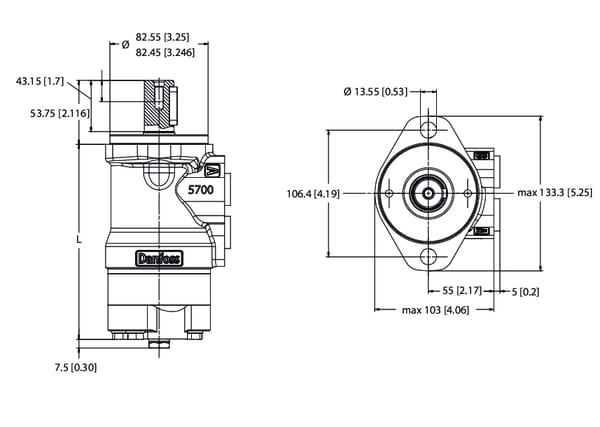

| Flange diameter | 106.4 mm |
| Flange shape | Oval |
| Housing length | 161.1 mm |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | G |
| Max. continous working pressure | 180 BAR |
| Max continuous torque | 380 N·m |
| Max. flow rate | 60 l/min |
| Max intermittend working pressure | 215 BAR |
| Max. power | 12.6 kW |
| Max rotation speed | 385 r/min |
| Min. starting pressure | 10 BAR |
| Min. starting torque | 335 N·m |
| Mounting holes circle diameter | 82.5 mm |
| Number of mounting holes | 2 |
| Port position | End |
| Product details | Flexibility thanks to a variety of shaft and flange combinations, With leak oil outlet, Roller design, Wide shaft slip bearing, Can be connected in series with other engines, Suitable for use in closed systems, Belongs to the series of medium-sized orbit motors, Well suited for frequent reversing operations, Highly efficient, High continuous pressure |
| Sealing type | High pressure |

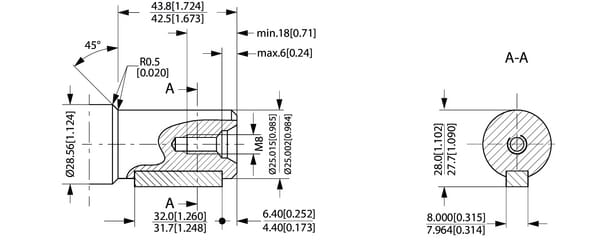

| Shaft diameter | 25 mm |
| Shaft type | Cylindrical |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 8740 g |
| Dimensions | 300 × 160 × 160 mm |
| Dangerous goods | No |
