Product details
| Displacement | 250 cm³/rev |
|---|---|
| Drain port thread diameter | 1/4 Inch |
| Drain port thread type | G |
| Flange shape | Standard |
| Housing length | 197.9 mm |
| Long description | Orbital motors are distinguished by their compact construction, large axial, radial shaft loads and high starting torque |

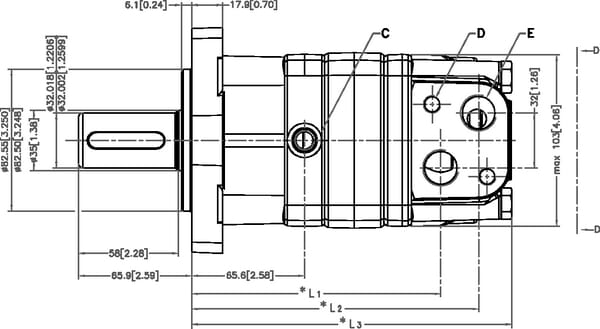

| Main port center to front flange distance | 153.6 mm |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | G |
| Main second port center to front flange distance | 175.6 mm |
| Max. continous working pressure | 200 BAR |
| Max continuous torque | 720 N·m |
| Max. flow rate | 75 l/min |
| Max intermittend working pressure | 250 BAR |
| Max. power | 14.5 kW |
| Max pressure peak | 270 BAR |
| Max rotation speed | 300 r/min |
| Min rotation speed | 6 r/min |

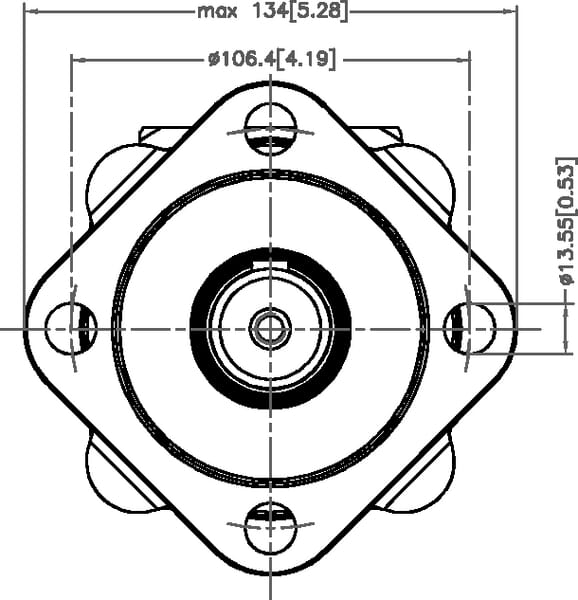

| Number of mounting holes | 4 |
| Original number equivalent | 151F0505 |
| Product details | Particularly suitable for continuous use in tough conditions, High continuous operating pressure, Very consistent operation at low speeds, Frequent reversing possible, High efficiency, Excellent start-up properties, Very high permissible radial load on the shaft is possible |
| Sealing type | Standard |

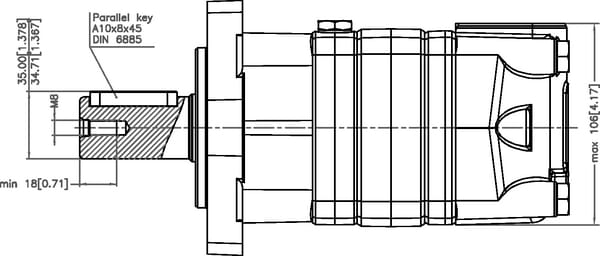

| Shaft diameter | 32 mm |
| Shaft type | Straight parallel |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 12140 g |
| Dimensions | 401 × 177 × 164 mm |
| Dangerous goods | No |
