£576.40
excl. VAT
£691.68 incl. VAT
£691.68
incl. VAT
£576.40 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Displacement | 315 cm³/rev |
|---|---|
| Drain port thread diameter | 1/4 Inch |
| Drain port thread type | G |
| Flange shape | Standard |
| Housing length | 209.2 mm |
| Long description | Orbital motors are distinguished by their compact construction, large axial, radial shaft loads and high starting torque |
| Main port center to front flange distance | 164.9 mm |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | G |
| Main second port center to front flange distance | 186.9 mm |
| Max. continous working pressure | 200 BAR |

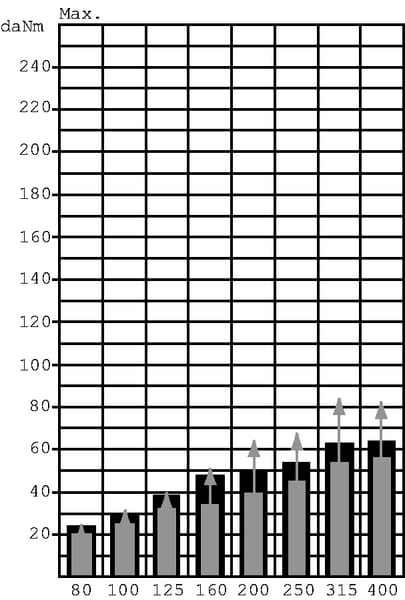

| Max continuous torque | 825 N·m |
| Max. flow rate | 75 l/min |
| Max intermittend working pressure | 240 BAR |

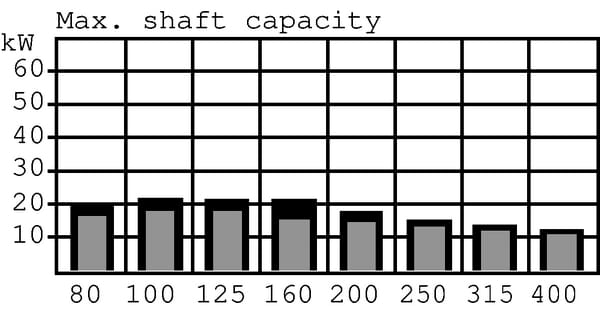

| Max. power | 15 kW |
| Max pressure peak | 260 BAR |

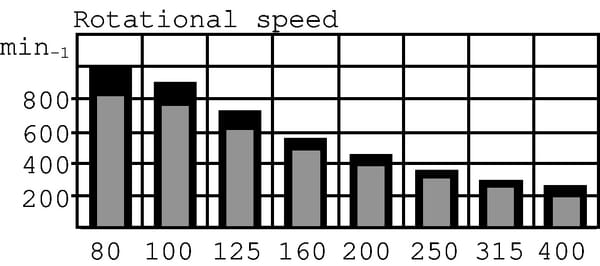

| Max rotation speed | 240 r/min |
| Min rotation speed | 5 r/min |
| Number of mounting holes | 4 |
| Original number equivalent | 151F0506 |
| Product details | Particularly suitable for continuous use in tough conditions, High continuous operating pressure, Very consistent operation at low speeds, Frequent reversing possible, High efficiency, Excellent start-up properties, Very high permissible radial load on the shaft is possible |
| Sealing type | Standard |
| Shaft diameter | 32 mm |
| Shaft type | Straight parallel |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 12769 g |
| Dimensions | 404 × 179 × 157 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000333691

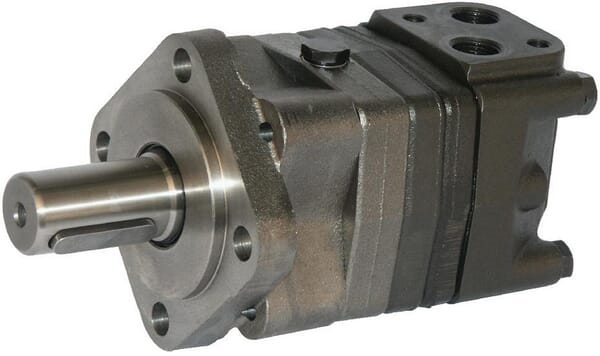

White Orbit motor, shaft diameter 32, standard OMS200151F0504
£623.73 excl.
£748.48 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000333703
White Orbit motor, shaft diameter 32, standard OMS80151F0500
£856.73 excl.
£1,028.08 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000333618
White Orbit motor, shaft diameter 32.4H,Drain OMR2501516006
£807.40 excl.
£968.88 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000333574

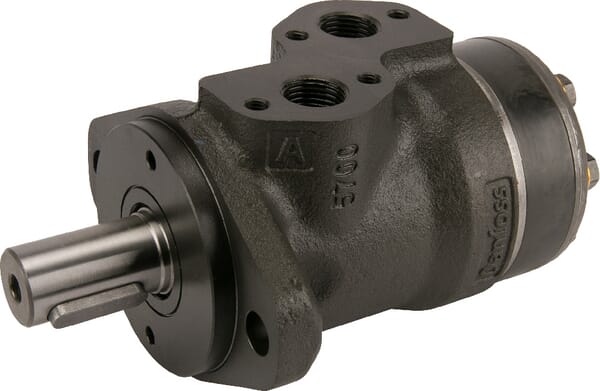

White Orbit motor, shaft diameter 1" A2 OMPX16011186726
£705.29 excl.
£846.35 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000333711
White Gasket set 151F0117 OMS9AFDPTO
£91.07 excl.
£109.28 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000333671

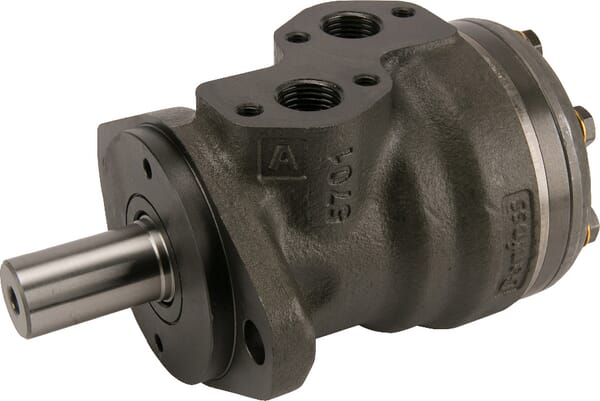

White Orbit motor, shaft diameter 25 A2 OMRX5011185537
