£1,251.09
excl. VAT
£1,501.31 incl. VAT
£1,501.31
incl. VAT
£1,251.09 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Displacement | 400 cm³/rev |
|---|---|
| Drain port thread diameter | 1/4 Inch |
| Drain port thread type | G |
| Flange shape | Wheel |
| L1Rotor length | 68.4 mm |
| LHousing length | 183 mm |
| Long description | Orbital motor offers compact construction and simple mounting. High torque and shaft load, because of shorter distance from mounting flange to the point of load application. |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | G |
| Max. continous working pressure | 160 BAR |
| Max continuous torque | 865 N·m |
| Max. flow rate | 75 l/min |
| Max intermittend working pressure | 190 BAR |
| Max. power | 11 kW |
| Max pressure peak | 210 BAR |
| Max rotation speed | 190 r/min |
| Min rotation speed | 5 r/min |
| Number of mounting holes | 4 |
| Original number equivalent | 151F0610 |
| Sealing type | Standard |

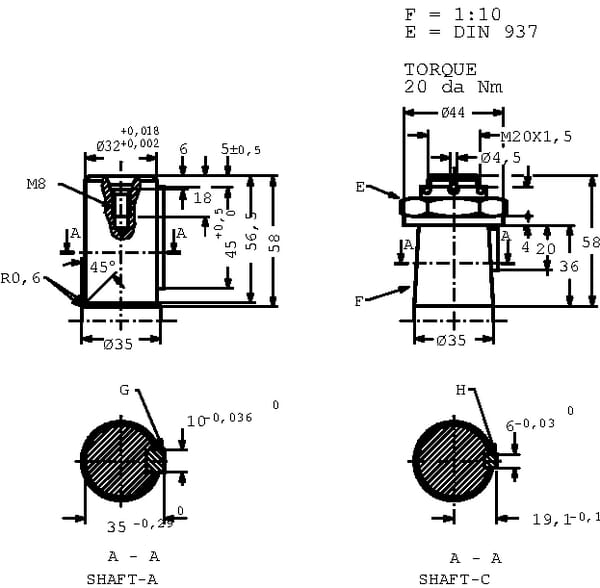

| Shaft diameter | 32 mm |
| Shaft type | Straight parallel |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 14574 g |
| Dimensions | 435 × 236 × 187 mm |
| Dangerous goods | No |
