£18.54
excl. VAT
£22.25 incl. VAT
£22.25
incl. VAT
£18.54 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details

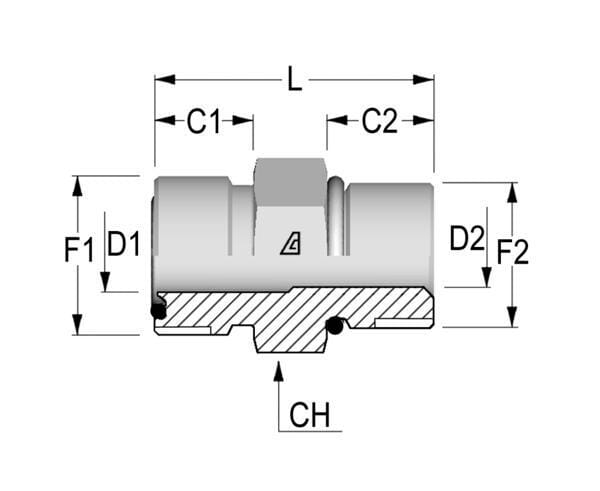

| C1Connection no 1 thread length | 17.5 mm |
|---|---|
| C2Connection 2, thread length | 18.5 mm |
| Connection 1, thread diameter | 1-7/16 Inch |
| Connection 1, thread type | ORFS |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1-5/16 Inch |
| Connection 2, threads per inch | 12 |
| Connection 2, thread type | ORFS |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection no 1 threads per inch | 12 |

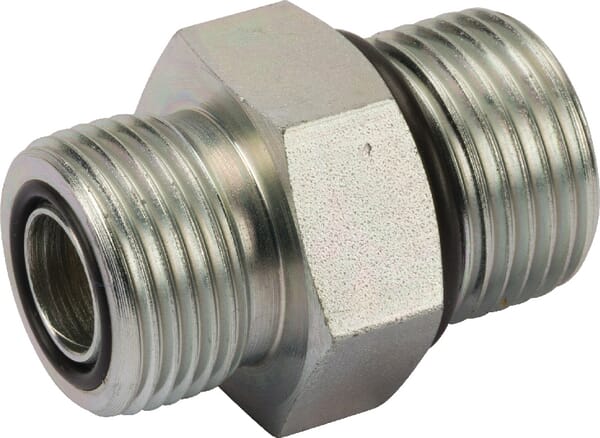

| Long description | ORFS couplings are ideal for high-pressure applications, mainly used in US products. The O-Ring Face Seals provide a reliable, leak-proof connection with a reusable design and easy assembly, significantly reducing installation and maintenance time. |
| LTotal length | 50.5 mm |
| Material | Steel |
| Max working pressure | 400 BAR |
| Product details | O-Ring Face Seals, O-ring in recess on the connection surface of the nipple, Standard : SAE I 1453, Material: Steel, Surface treatment : Zinc-plated, Viton seal available on request |
| Pros | High tightening torque, Reusable |
| Shape | Straight |
| Surface treatment | Galvanised |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 288 g |
| Dimensions | 60 × 43 × 40 mm |
| Dangerous goods | No |
You might also like
BPA000349134
Alfagomma Male stud 9/16 JIC x 1/2 BSP RIB0908WD
£4.66 excl.
£5.59 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000299492

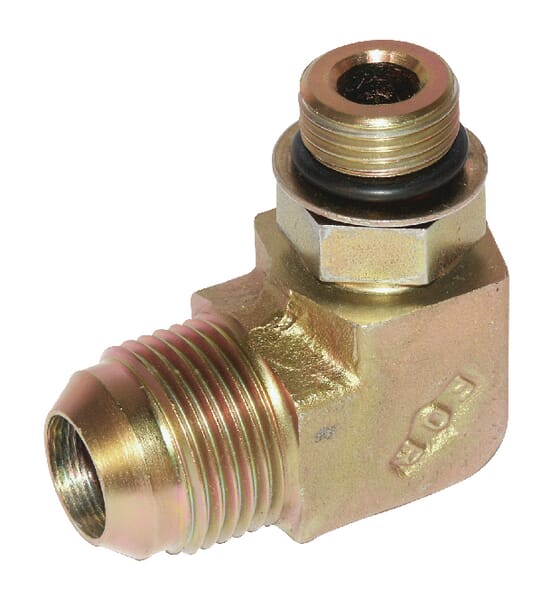

Alfagomma Elbow 1/2 JIC x 1/2 UNF KIU0808
£13.04 excl.
£15.65 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000343976

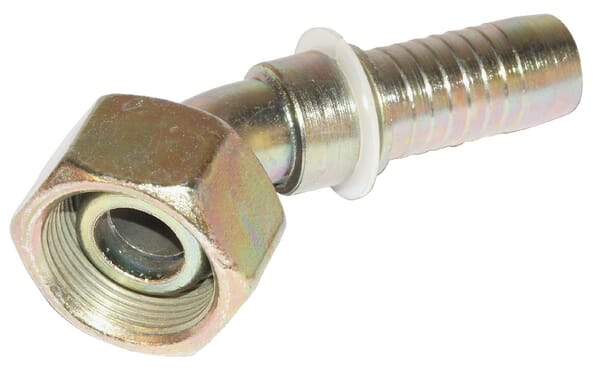

Alfagomma Insert DN06-M14x1,5-8L-45° PGL61445
£6.85 excl.
£8.22 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000336333
Alfagomma Insert DN16-7/8 UNF PA1614
£3.70 excl.
£4.44 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000253011
Alfagomma Hydraulic hose complete DN06 500-90° DKLO650090
£20.07 excl.
£24.08 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000253137

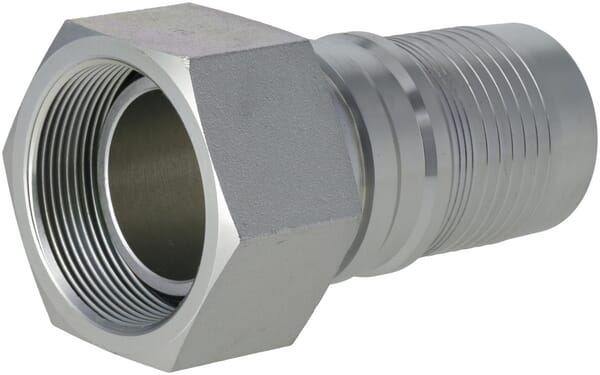

Alfagomma Swage coupling 4SH-DN50-2" BSP DKRH5032G2
£79.21 excl.
£95.05 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
BPA000357111
Kramp Sprocket Duplex 45 teeth 3/8" chain 06 B-2 for taperlock bush 1610 SD3845TL
£31.58 excl.
£37.89 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000289576
Alfagomma Hose HSKHF8 on reel HSKHF8P025M
£4.53 excl.
£5.44 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000083740

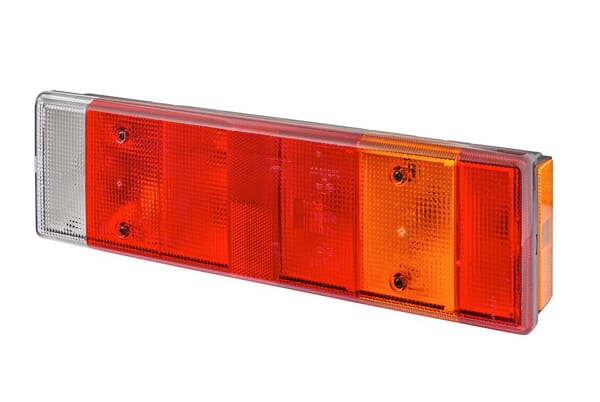

Hella Rear light rectangular, 24V, transparent/amber/red, bolt on, 476x83x131mm, 8-pin, 2VD007323131
£189.54 excl.
£227.45 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000083573
Hella Marker light LED, 0.60W, oval, 24V, transparent, bolt on, 2 LED's, 2PG964295111
£31.35 excl.
£37.62 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000329740
Kramp O-ring 43x1.5 75 shore Viton 10x OR43150VP010
£18.09 excl.
£21.71 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000356810
Kramp Sprocket Duplex 13 teeth 1" chain 16 B-2 for taperlock bush 1615 SD113TL
£37.02 excl.
£44.42 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000250378
TE Connectivity DEUTSCH Plug housing 23 P. Male HD30 DSHD362423PN
£78.41 excl.
£94.09 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000348863

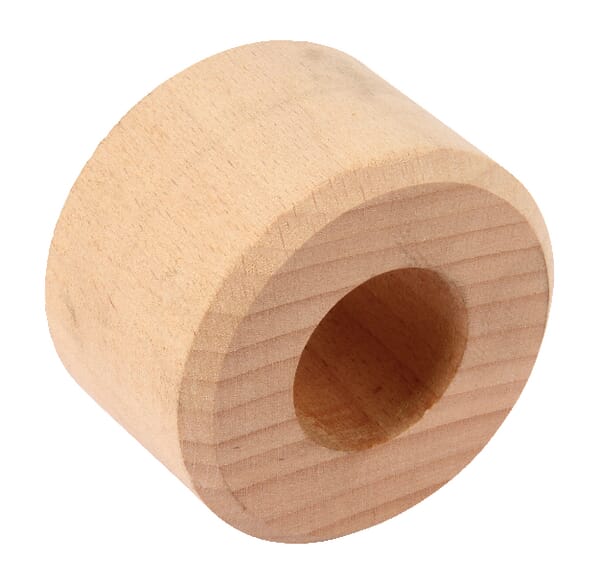

Kverneland / Rau Bearing 30mm Rau RG00096113
£5.98 excl.
£7.18 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000205394

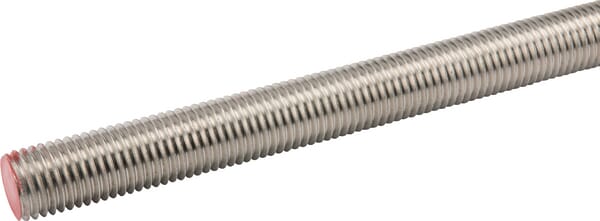

Kramp Threaded rod M16x2x1m stainless steel A4 DIN 975 97516RVSA4
