£24.81
excl. VAT
£29.77 incl. VAT
£29.77
incl. VAT
£24.81 excl. VAT
In stock
Expected to ship on Thursday 17 September

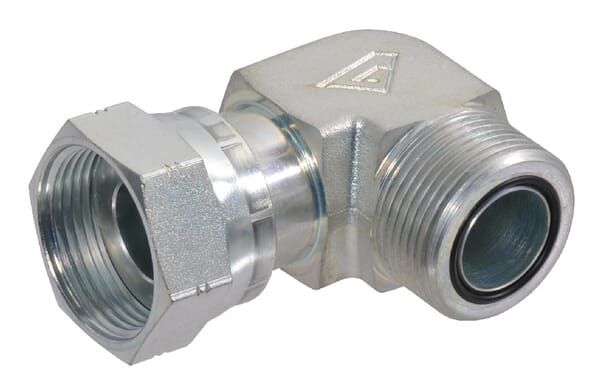

Product details

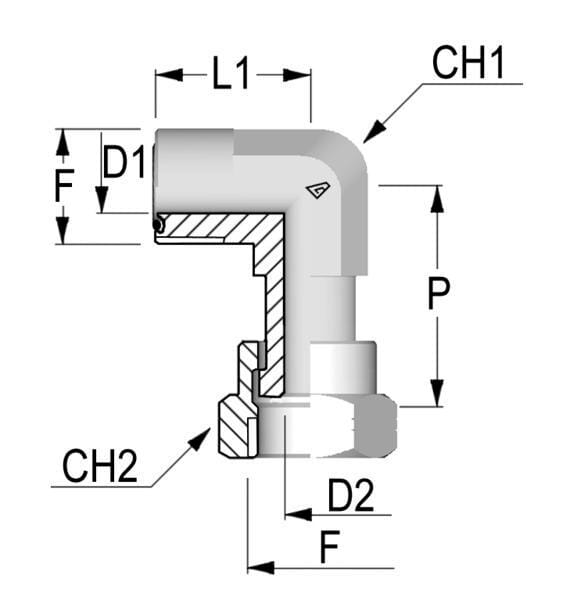

| CH1Connection no 1 wrench size | 27.0 mm |
|---|---|
| Connection 1, thread diameter | 1-13/16 Inch |
| Connection 1, thread type | ORFS |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | 1-13/16 Inch |
| Connection 2, threads per inch | 16 |
| Connection 2, thread type | ORFS |
| Connection 2, type | Stand pipe |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 36.0 mm |
| Connection no 1 threads per inch | 16 |
| L1Connection no 1 center to end distance | 37.5 mm |
| Long description | ORFS couplings are ideal for high-pressure applications, mainly used in US products. The O-Ring Face Seals provide a reliable, leak-proof connection with a reusable design and easy assembly, significantly reducing installation and maintenance time. |
| Material | Steel |
| Max working pressure | 400 BAR |
| PConnection 2, centre to end distance | 46.5 mm |
| Product details | O-Ring Face Seals, O-ring in recess on the connection surface of the nipple, Standard : SAE I 1453, Material: Steel, Surface treatment: Zinc-plated, Viton seal available on request |
| Pros | High tightening torque, Reusable |
| Series connection 1 | n/a |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 362 g |
| Dimensions | 147 × 46 × 35 mm |
| Dangerous goods | No |
You might also like
BPA000358597

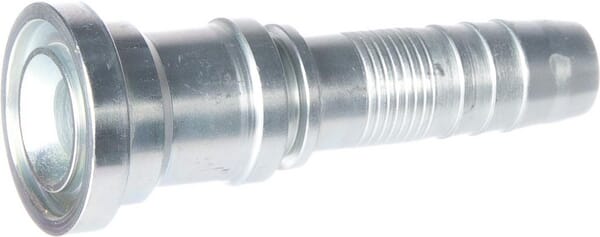

Alfagomma Insert NS-DN13-flange diameter 38,1 SFLNS1312G2
£16.35 excl.
£19.61 incl.
In stock
Expected to ship on Friday 18 September
BPA000358762
Alfagomma Swage coupling 4SH-DN25 with flange diameter 47,6mm 90° H175 SFSH251690H175G2
£93.53 excl.
£112.24 incl.
In stock
Expected to ship on Friday 18 September
BPA000299154

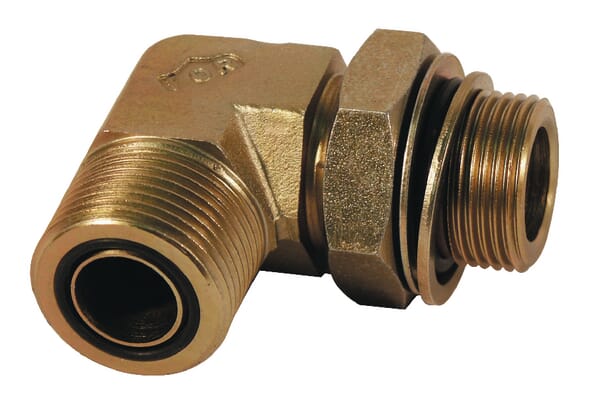

Alfagomma Elbow 1 ORFS x 1/2 BSP KIOB1608
£18.24 excl.
£21.89 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000358785
Alfagomma Swage coupling 4SH-DN40 with flange diameter 79,4mm 90° SFSH403290G2
£155.79 excl.
£186.95 incl.
In stock
Expected to ship on Thursday 17 September
BPA000344132
Alfagomma Insert DN08-M18x1.5-12L PGLO818
£2.17 excl.
£2.60 incl.
In stock
Expected to ship on Thursday 17 September
BPA000252909

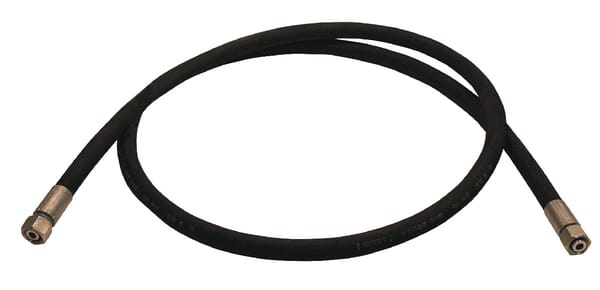

Alfagomma Hydraulic hose DN10 5000mm DKLO105000
£50.23 excl.
£60.28 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
BPA000208747
Kverneland Hose Hh2Sc12 N00-15L D00-15L A135357500
£55.00 excl.
£65.99 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000220045
Kverneland / Accord Bearing bow tellus welded AC48115977
£304.37 excl.
£365.24 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000217918
Kverneland Hose clamp-d3017-w1-b12mm-(150- A145536161
£20.28 excl.
£24.34 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000143051

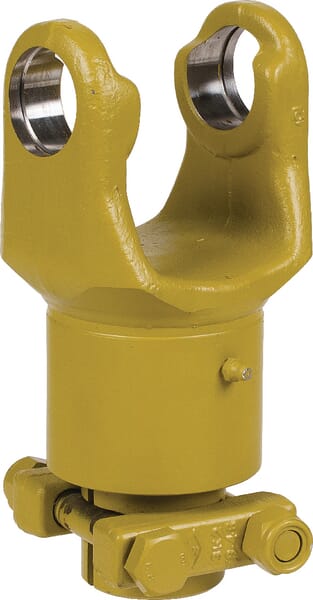

Walterscheid Over.clutch F5 13/4 20spl+clutch 5612941
