£15.32
excl. VAT
£18.38 incl. VAT
£18.38
incl. VAT
£15.32 excl. VAT
In stock
Expected to ship on Tuesday 22 September

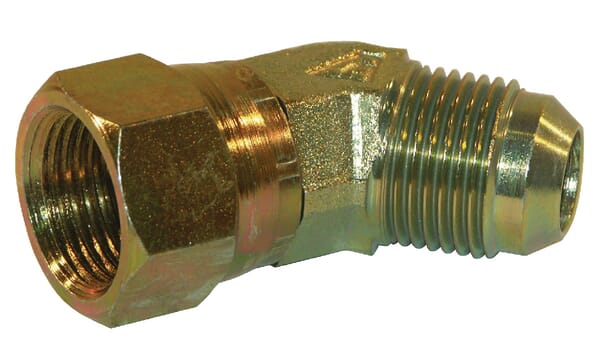

Product details
| Connection 1, thread diameter | 7/8 Inch |
|---|---|
| Connection 1, thread type | JIC |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |

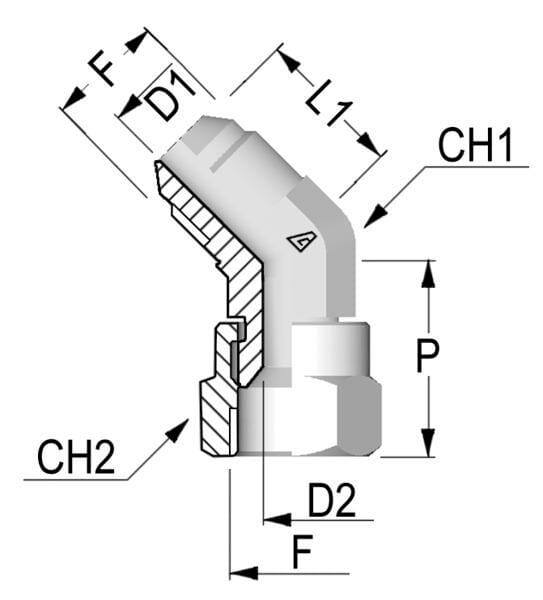

| Connection 2, centre to end distance | 29.5 mm |
| Connection 2, thread diameter | 7/8 Inch |
| Connection 2, threads per inch | 14 |
| Connection 2, thread type | JIC |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection no 1 diameter | 16 mm |
| Connection no 1 threads per inch | 14 |
| Max working pressure | 280 BAR |
| Pipe diameter | 5/16 Inch |
| Product details | For pipe with 37º (74º) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514, Connection thread on the 37º cone side is UNF in accordance with ANSI |
| Shape | Elbow 45° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 135 g |
| Dimensions | 74 × 45 × 27 mm |
| Dangerous goods | No |
You might also like

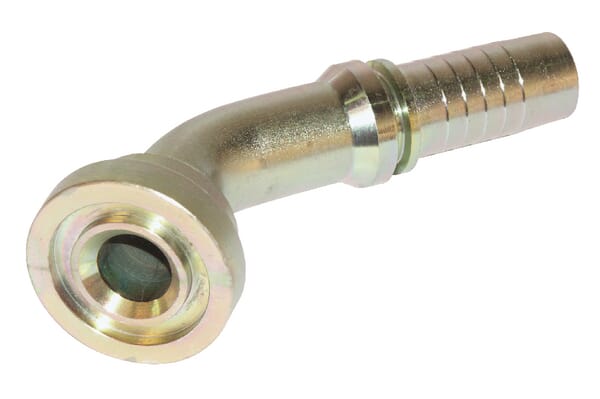

BPA000343843
Alfagomma Insert with flange DN32-diameter 54.0mm-45° PFS322045
£44.29 excl.
£53.15 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000253020
Alfagomma Hydraulic hose DN08 1100mm DKLO81100
£24.93 excl.
£29.92 incl.
In stock
Expected to ship on Tuesday 22 September

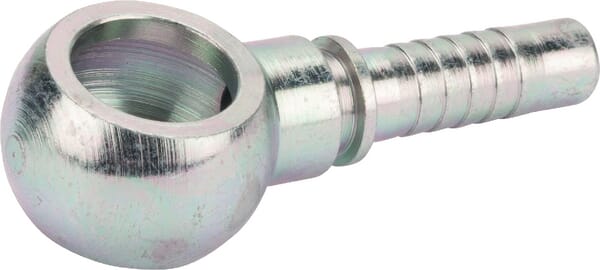

BPA000341332
Alfagomma Banjo insert DN10-diameter 3/8 BSP PQB106
£3.30 excl.
£3.96 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000365498

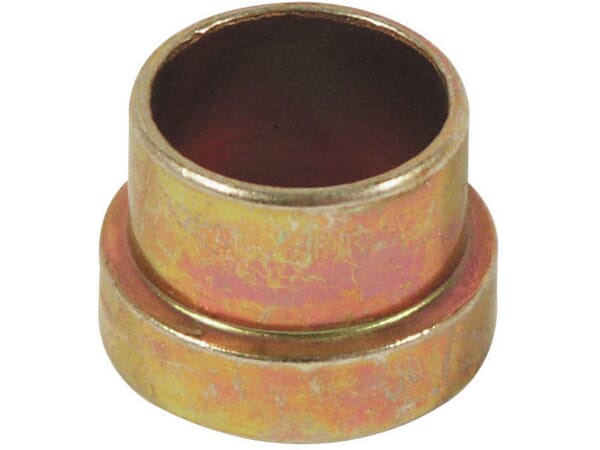

Alfagomma Support ring 15 mm SRM15
£1.81 excl.
£2.17 incl.
In stock
Expected to ship on Tuesday 22 September

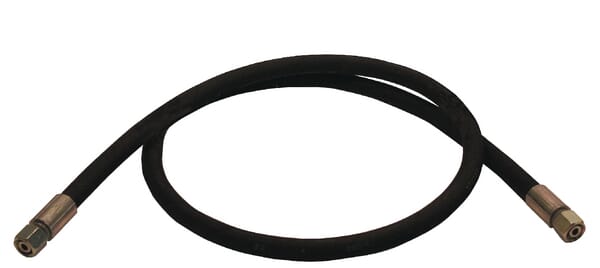

BPA000253012
