£12.58
excl. VAT
£15.10 incl. VAT
£15.10
incl. VAT
£12.58 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

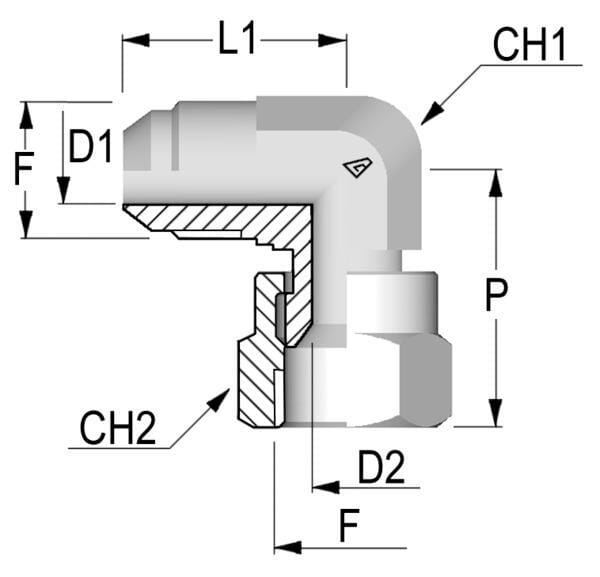

| Cone angle side 1 | 74 ° |
|---|---|
| Connection 1, thread diameter | 7/8 Inch |
| Connection 1, thread type | JIC |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, centre to end distance | 36.5 mm |
| Connection 2, diameter | 7/8 Inch |
| Connection 2, thread diameter | 7/8 Inch |
| Connection 2, thread pitch | 14.00 mm |
| Connection 2, thread type | JIC |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Connection no 1 diameter | 14 mm |
| Connection no 1 thread length | 40.7 mm |
| Connection no 1 threads per inch | 14 |
| Long description | Technical information:, For standpipes 37º (74º) against cone and inserts with UNF/JIC fittings acc. SAE I 514. Cone acc. To UNF ANSI. |
| Max working pressure | 280 BAR |
| Pipe diameter | 5/16 Inch |
| Product details | For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514, Connection thread on the 37º cone side is UNF in accordance with ANSI |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 163 g |
| Dimensions | 91 × 87 × 14 mm |
| Dangerous goods | No |
You might also like
BPA000343614
Alfagomma Insert DN06-1/4 BSP-90º PF6490
£2.37 excl.
£2.84 incl.
In stock
Expected to ship on Friday 18 September
BPA000343350

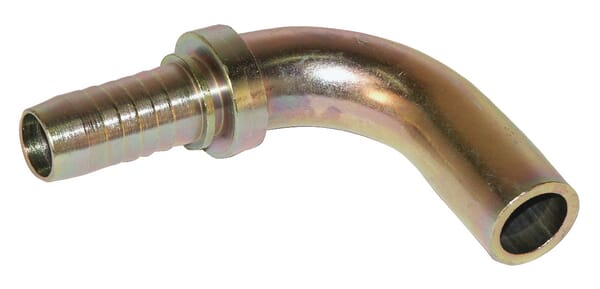

Alfagomma Insert DN06-diameter 12mm-90° PU61290
£5.09 excl.
£6.11 incl.
In stock
Expected to ship on Monday 21 September
BPA000343330

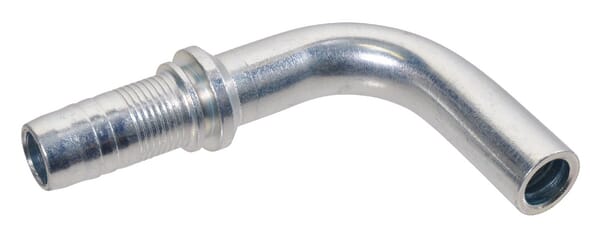

Alfagomma Insert DN20-diameter 20mm-90° PU202090
£14.18 excl.
£17.02 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000341074

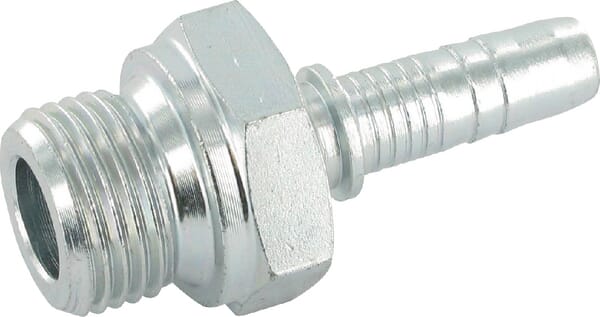

Alfagomma Swage coupling DN13-1/2 BSP PNV138
£5.84 excl.
£7.01 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000365526
Alfagomma HSK-PQ swage coupling set SWAGEKIT1HSKPQ
£966.03 excl.
£1,159.24 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000247873
Alfagomma Suction/pressure hose 102mm CR4100
£63.03 excl.
£75.64 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
Free shipping
BPA000367102
Faster Swivel M 3/4 BSP x F 3/4 BSP SZP12MP12F
£139.93 excl.
£167.92 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000151542
Truck-Lite Headlamp halogen, right (LHT), suitable for New Holland 6345104
£133.72 excl.
£160.46 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000210708
Kverneland Steel wire rope D 3mm x 840mm A131309300
£102.31 excl.
£122.77 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000214783
Kverneland Tarpaulin (275 cm) vicon A138960330
£520.33 excl.
£624.40 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000329088
Kramp O-ring 16.9x2.7 75 shore Viton 10x OR1690270VP010
£15.21 excl.
£18.25 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000109025
Arag Nozzle Holder dcv 3/8" BSP, Clamp 20mm tube 402025
£2.34 excl.
£2.81 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000220483
Kverneland / Accord Holder ADR CX- Share lang Accord AC497710
£140.92 excl.
£169.11 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000260912
Kramp Electric motor 0.75 kW EM90S6B14300IE3AKR
£248.40 excl.
£298.08 incl.
In stock
Expected to ship on Friday 18 September
BPA000171972
Honda machinery parts Regulation board 75110VE1R00
£54.68 excl.
£65.61 incl.
In stock
Expected to ship on Friday 18 September
BPA000196958

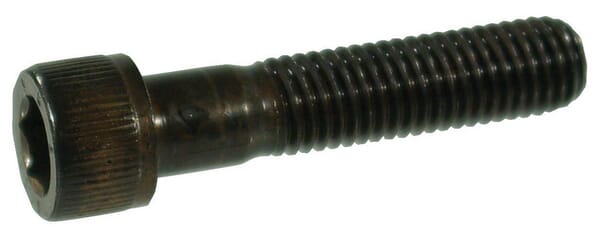

Kramp Hexagon socket head cap screw DIN912 M5x105 steel 12.9 9125105129B
