£213.00
excl. VAT
£255.60 incl. VAT
Pack of 50 · £4.26 each excl. VAT
£255.60
incl. VAT
£213.00 excl. VAT
Pack of 50 · £5.11 each incl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Bend radius | 75 mm |
|---|---|
| Burst pressure | 1600 BAR |
| DN | 6 mm |
| EN Standard | 857 2SC |
| Hose inside diameter | 6.4 mm |
| Hose outside diameter | 13 mm |
| Includes | Hose reel, These reels contain a maximum of two lengths per reel, with the shortest length being at least 10 metres. |
| Length | 50 m |
| Material inside | Synthetic rubber |
| Material outside | Synthetic rubber |
| Max working pressure | 400 BAR |
| Max working temperature | 100 °C |
| Medium | Hydraulic oil |
| Min working temperature | -40 °C |
| Packing type | Reel |
| Product details | Standard hose for all applications, very suitable for construction machinery and agriculture, Mineral and glycol-based liquids, vegetable and mineral lubricants, crude oils, cooling water, compressed air, etc., Essentially in line with DIN 20022- 2SN / EN857-2SC dimensions |
| Pros | Durable outer coating resistant to ozone and oil, Halogen free |
| Qty. Rounding | 50 |
| Reinforcement material | Steel |
| Reinforcement number of plies | 2 |
| Reinforcement type | Braid |
| Type | Hydraulic high pressure hose |
| Unit | Metre |
| Weight | 0.27 kg/m |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8719607319522 |
|---|---|
| Unit of measure | MTR |
| Weight | 280 g |
| Dimensions | 475 × 475 × 6 mm |
| Dangerous goods | No |
You might also like
BPA000289573
Alfagomma Hose HSKHF6 on reel HSKHF6P025M
£4.68 excl.
£5.62 incl.
In stock
Expected to ship on Friday 18 September
BPA000279054

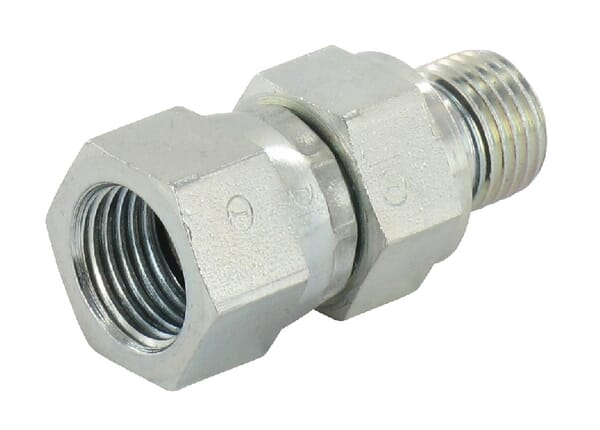

Alfagomma Swivel 1-7/8 JIC x 1/2 BSP FMUB3024
£62.27 excl.
£74.72 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000336315
Alfagomma Insert DN13-7/8-UNF-45° PA131445
£5.67 excl.
£6.80 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000343743

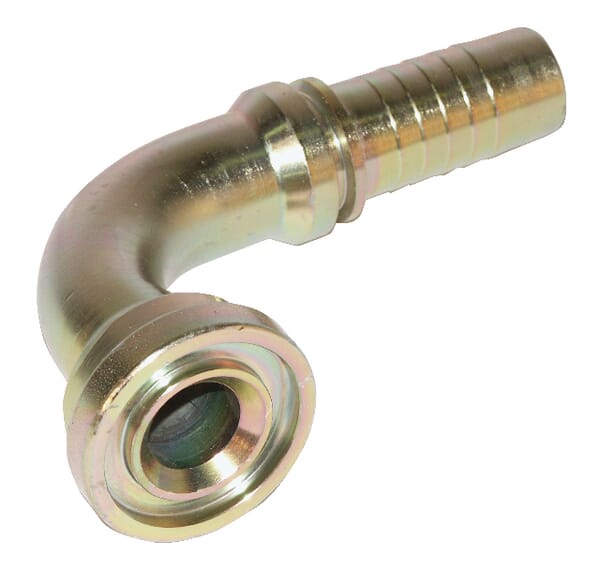

Alfagomma Insert with flange DN25-diameter 44.4mm-90° PFL251690
£24.93 excl.
£29.92 incl.
In stock
Expected to ship on Friday 18 September
BPA000299503

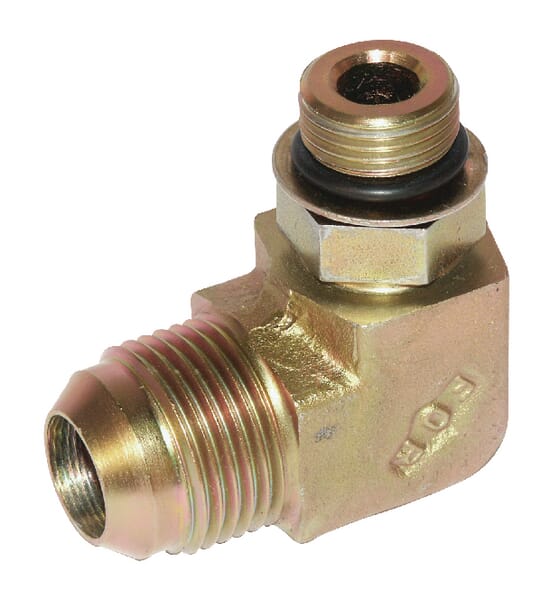

Alfagomma Elbow 1-1/16 JIC x 7/8 UNF KIU1714
