£25.36
excl. VAT
£30.43 incl. VAT
£30.43
incl. VAT
£25.36 excl. VAT
In stock
Expected to ship on Friday 18 September

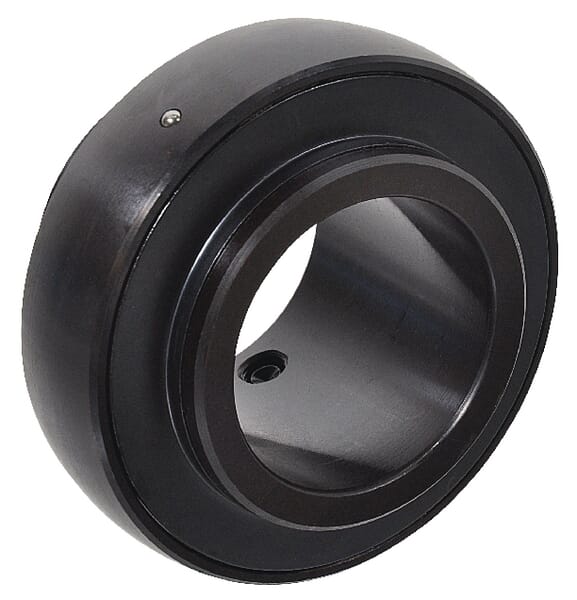

Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| Ball centre to end distance | 19 mm |
| Ball centre to grease hole distance | 6.3 mm |
| Basic radial load dynamic | 32500 N |
| Basic radial load static | 20400 N |
| Inner ring width | 49.2 mm |
| Inside diameter | 45 mm |
| Locking screw centre to end distance | 8 mm |
| Manufacturer | Schaeffler |
| Max working temperature | 100 °C |
| Min working temperature | -20 °C |
| Original number equivalent | UC209 |
| Outer ring width | 22.6 mm |
| Outside diameter | 85 mm |
| Outside diameter of inner ring | 57.9 mm |
| Properties | Both sides: extended inner ring with 2 adjusting screws, RSR seal |
| Sealing width | 22.6 mm |
| Unit | Each |
| Wrench/spanner size | 4.0 mm |
Logistics
| EAN | 4012802627442 |
|---|---|
| Unit of measure | EA |
| Weight | 718 g |
| Dimensions | 96 × 95 × 55 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000155630
FAG Deep groove ball bearing 90x160x30mm INA/FAG 6218ZZ
£143.24 excl.
£171.89 incl.
In stock
Expected to ship on Friday 18 September
BPA000088780

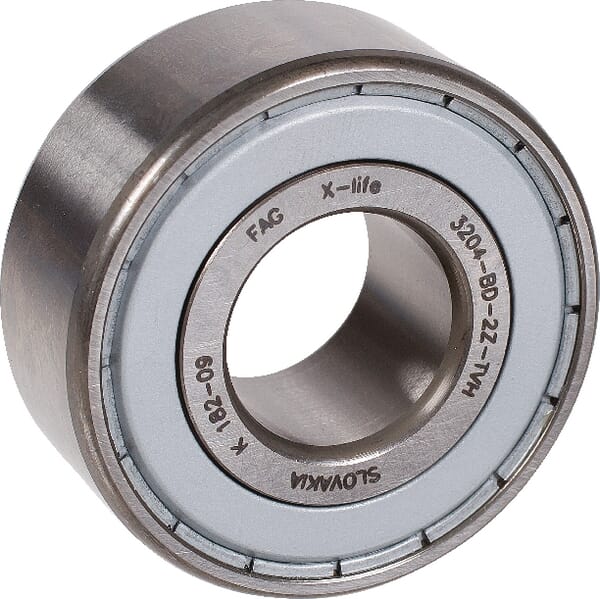

FAG Angular contact ball bearing 20x47x20.6mm INA/FAG 3204BZZTVH
