£32.02
excl. VAT
£38.42 incl. VAT
£38.42
incl. VAT
£32.02 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Approval | ABS, BV, DNN, KOMAG, GL, NKK, RINA |
|---|---|
| Connection 1, thread diameter | M22 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection series | 15L |
| EN Standard | 853-2SN |
| Includes | Complete hose with 1x straight and 1x 90° coupling (screw cap M22x1.5 (15L)) |
| Length | 1 m |
| Long description | Application range:, General use in hydraulic systems, Mineral oil-based and glycol-based fluids, Vegetable and mineral lubricants, Coolant, Compressed air, Benefits:, Very reasonably priced, <C |
| Material inside | Nitrile rubber [NBR] |
| Material outside | Styrene-butadiene rubber (SBR) |
| Max working pressure | 275 BAR |
| Max working temperature | 100 °C |
| Min working temperature | -40 °C |
| Product details | Screw cap M22x1.5 (15L) on one side, Screw cap M22x1.5 (15L - 90°) on one side, Length is the total length including couplings, Mineral oil-based and glycol-based fluids, Durable outer coating resistant to ozone and oil, General use in hydraulic systems, Not suitable for ester based oils |
| Pros | Very competitively priced, Available from stock, Fast assembly |
| Type code | HST-13-2SN |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 835 g |
| Dimensions | 265 × 245 × 70 mm |
| Dangerous goods | No |
You might also like
BPA000241197

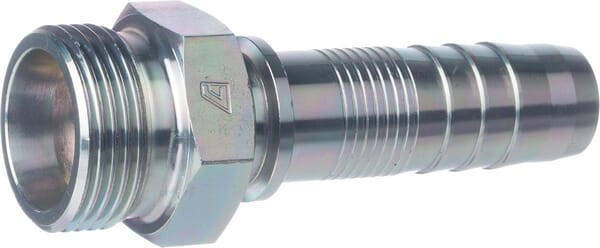

Alfagomma Insert M NS-DN25-30S-M42x2 CESNS2542G2
£16.95 excl.
£20.34 incl.
In stock
Expected to ship on Friday 18 September
BPA000336364

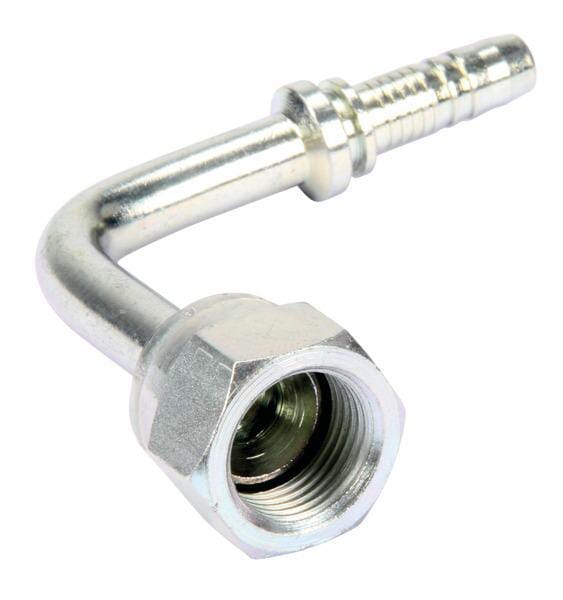

Alfagomma Insert DN20-1"5/16-UNF-90° PA202190L
£28.40 excl.
£34.08 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000365494

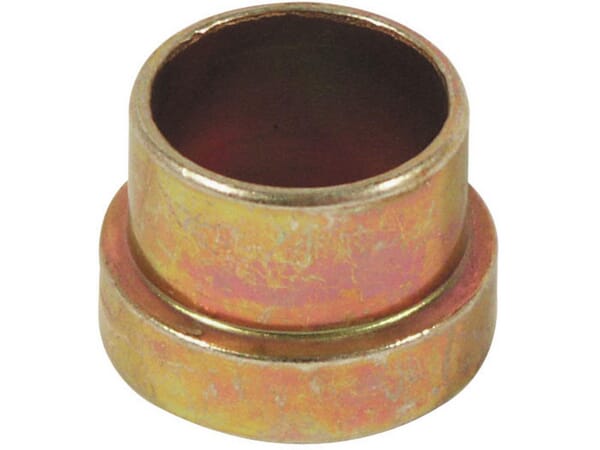

Alfagomma Support ring 8 mm SRM08
£0.66 excl.
£0.79 incl.
In stock
Expected to ship on Thursday 17 September
BPA000358750

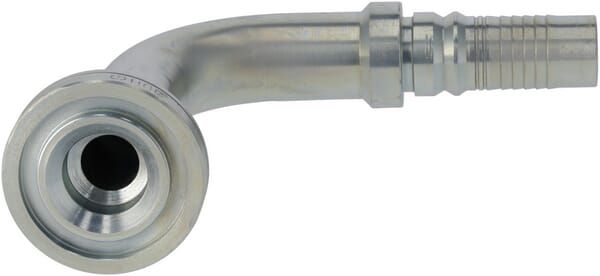

Alfagomma Swage coupling 4SH-DN20 with flange diameter 47,6mm 90° H100 SFSH201690H100G2
£47.00 excl.
£56.40 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000279077

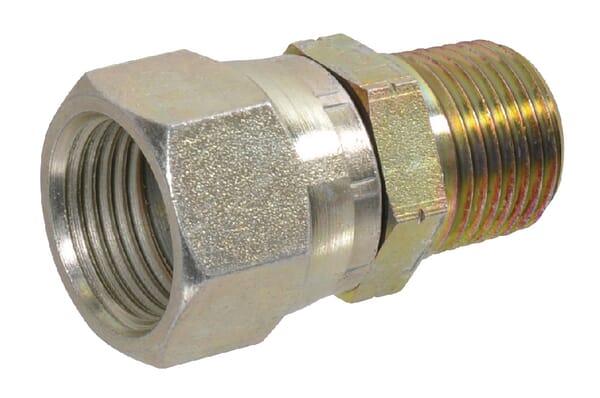

Alfagomma Swivel 7/16 JIC x 1/8 NPT FMUN0702
£11.13 excl.
£13.36 incl.
In stock
Expected to ship on Friday 18 September
BPA000374510

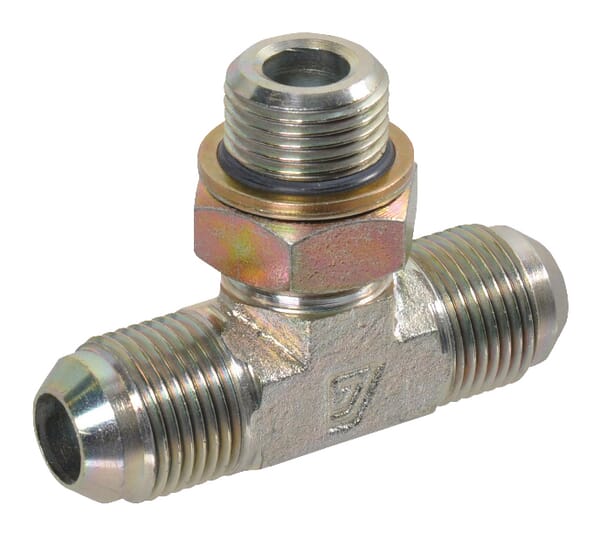

Alfagomma T piece 7/8 JIC x 1/2 BSP TIB1408
