£7.10
excl. VAT
£8.52 incl. VAT
£8.52
incl. VAT
£7.10 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Approval | MSHA |
|---|---|
| Bend radius | 64 mm |
| Burst pressure | 1400 BAR |
| DN | 10 mm |
| EN Standard | 857 2SC |
| Hose inside diameter | 9.5 mm |
| Hose outside diameter | 17.4 mm |
| Long description | Application range:, Standard applications in hydraulic systems, Agricultural equipment, Construction machines, Mineral oil-based and glycol-based fluids, Vegetable and mineral lubricants, Crude oils, heating oil, coola |
| Material inside | Synthetic rubber |
| Material outside | Synthetic rubber |
| Max working pressure | 350 BAR |
| Max working temperature | 100 °C |
| Medium | Hydraulic oil |
| Min working temperature | -40 °C |
| Number of plies | 2 |

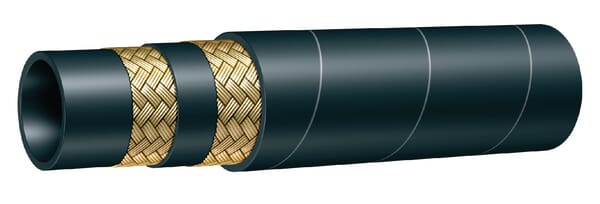

| Product details | Hydraulic rubber compact hose with 2 braided steel wire layers of high tensile strength, Essentially in line with DIN 20022- 2SN / EN857-2SC dimensions, Available by the metre, Available on 50-metre reel, up to 1/2", Available on 25-metre reel, up to 3/4", Always consult the latest press dimensions tables, see downloads at the bottom of each web page, For longer single-piece lengths, please contact our sales department |
| Pros | High operating pressure, Small bending radius, Extremely wear-resistant outer coating (15x vs standard), Outer coating resistant to ozone and oil |
| Qty. Rounding | 0.01 |
| Reinforcement material | Steel |
| Reinforcement number of plies | 2 |
| Reinforcement type | Braid |
| Type | Hydraulic high pressure hose |
| Unit | Metre |
| Weight | 0.4 kg/m |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | MTR |
| Weight | 360 g |
| Dimensions | 1000 × 18 × 18 mm |
| Dangerous goods | No |
You might also like
BPA000358622

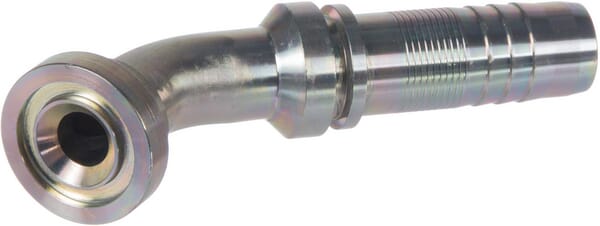

Alfagomma Insert NS-DN40-flange diameter 71,4 45 SFLNS403245G2
£98.98 excl.
£118.78 incl.
In stock
Expected to ship on Friday 18 September
BPA000376027
Alfagomma T piece bulkh M 9/16 JIC TS09
£21.10 excl.
£25.32 incl.
In stock
Expected to ship on Friday 18 September
BPA000371643
Alfagomma T piece 3/4 UNF x 3/4 JIC TIU1212
£15.73 excl.
£18.88 incl.
In stock
Expected to ship on Friday 18 September
BPA000253016

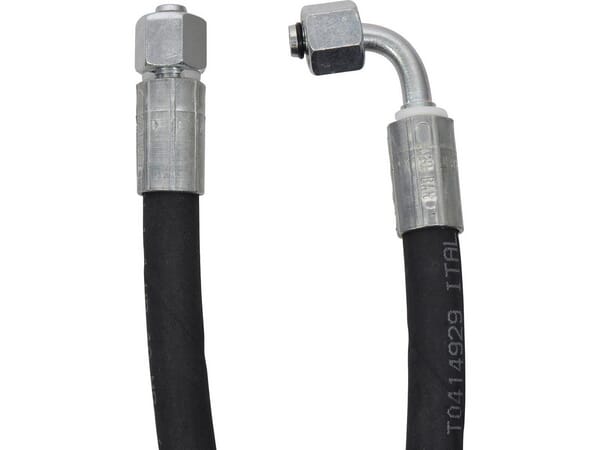

Alfagomma Hydr.Hose compl.DN06.800-90° DKLO680090
£22.74 excl.
£27.29 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000358702

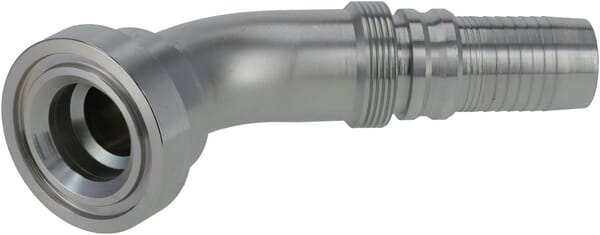

Alfagomma Swage coupling 4SH-DN32 flange diameter 63.5mm 45° SFSCH322445G2
£104.69 excl.
£125.63 incl.
In stock
Expected to ship on Friday 18 September
BPA000299163

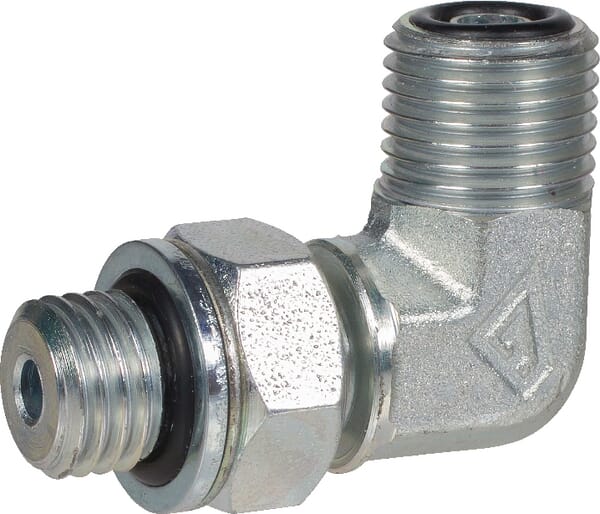

Alfagomma Elbow ORFS 11/16"xM14 KIOM1114
£19.02 excl.
£22.82 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
Free shipping
BPA000220586
Kverneland / Accord Push-on flange 1 3/8"-6 AC499702
£229.66 excl.
£275.59 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000302220

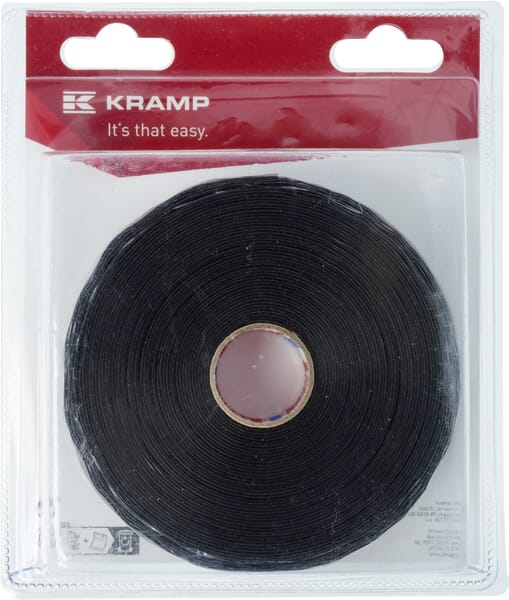

Kramp Vulcanising tape 25mm x 10m (1) KREM2049P01B
