£15.73
excl. VAT
£18.88 incl. VAT
£18.88
incl. VAT
£15.73 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

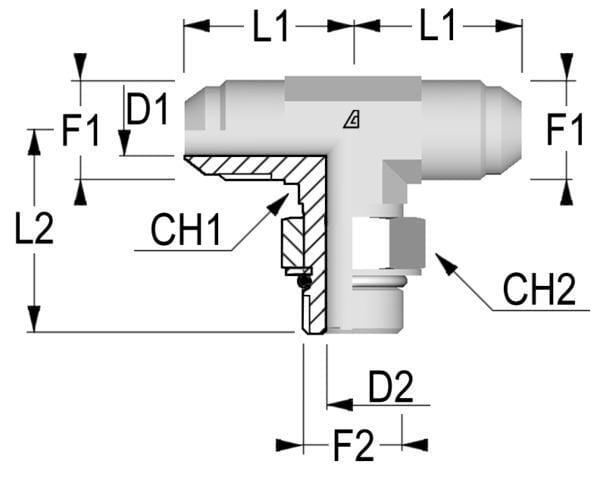

| CH1Connection no 1 wrench size | 19.0 mm |
|---|---|
| CH2Connection 3, wrench size | 24.0 mm |
| Connection 1, thread diameter | 3/4 Inch |
| Connection 1, thread type | UNF |
| Connection 1, type | Thread |
| Connection 2, thread diameter | 3/4 Inch |
| Connection 2, thread type | UNF |
| Connection 2, type | Thread |
| Connection 3, thread diameter | 3/4 Inch |
| Connection 3, thread type | UNF |
| Connection 3, type | Thread |
| L1Connection centre to insert distance | 32 mm |
| L2Connection no 1 center to end distance | 38.7 mm |
| Material | Steel |
| Pipe diameter | 1/2 Inch |
| Product details | For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514, Connection thread on the 37º cone side is UNF in accordance with ANSI |
| Shape | Tee (T) |
| Surface treatment | Galvanised |
| Unit | Each |
| Working pressure | 340 BAR |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 145 g |
| Dimensions | 66 × 52 × 25 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000343852

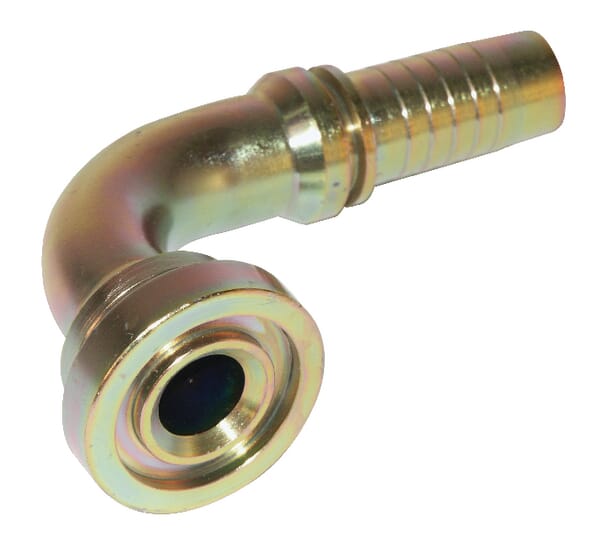

Alfagomma Insert with flange DN40-diameter 79.4mm-90° PFS403290
£200.68 excl.
£240.82 incl.
In stock
Expected to ship on Monday 21 September
BPA000338372

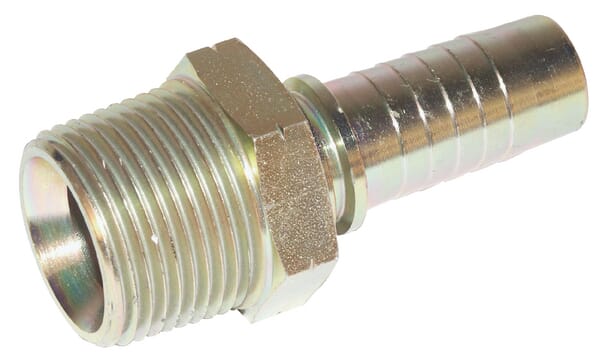

Alfagomma Insert DN20-1" NPT PE2016
£12.03 excl.
£14.44 incl.
In stock
Expected to ship on Monday 21 September
BPA000252827
Alfagomma Swage coupling 4SH-DN20-1.1/16" UNF-45° DKJH201745G2
£25.90 excl.
£31.08 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000358762
Alfagomma Swage coupling 4SH-DN25 with flange diameter 47,6mm 90° H175 SFSH251690H175G2
£93.53 excl.
£112.24 incl.
In stock
Expected to ship on Friday 18 September
BPA000252913

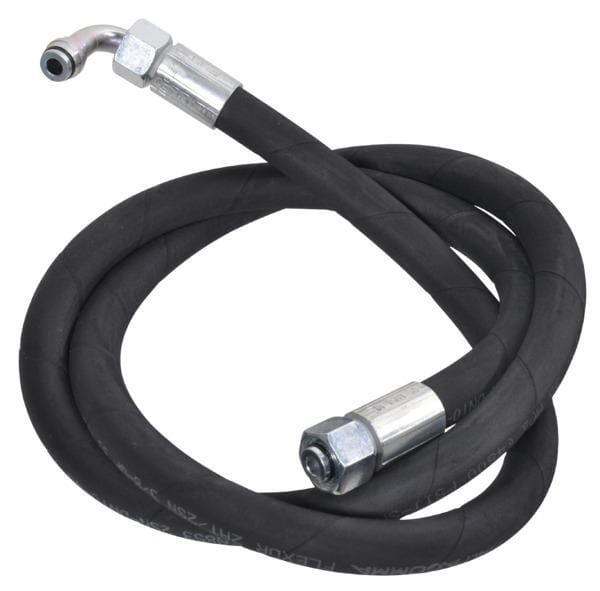

Alfagomma Hydraulic Hose complete DN10.600-90° DKLO1060090
£21.27 excl.
£25.52 incl.
In stock
Expected to ship on Friday 18 September
BPA000253445

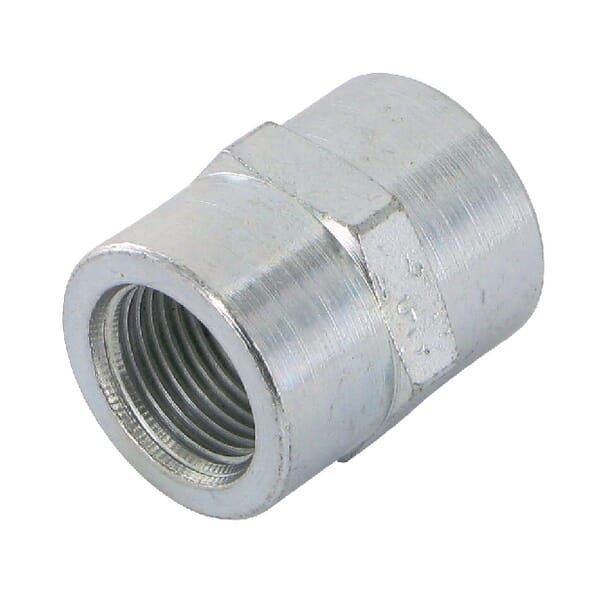

Alfagomma Double nipple 1 1/4 BSP female DNBC20
