£87.16
excl. VAT
£104.59 incl. VAT
£104.59
incl. VAT
£87.16 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.

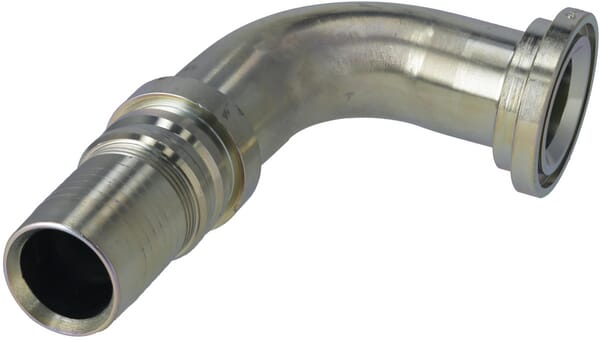

Product details
| Connection 1, type | Hose end |
|---|---|
| Connection 1, type code | SFL |
| Connection 2, diameter | 1-1/2 Inch |
| Connection 2, type | Flange |

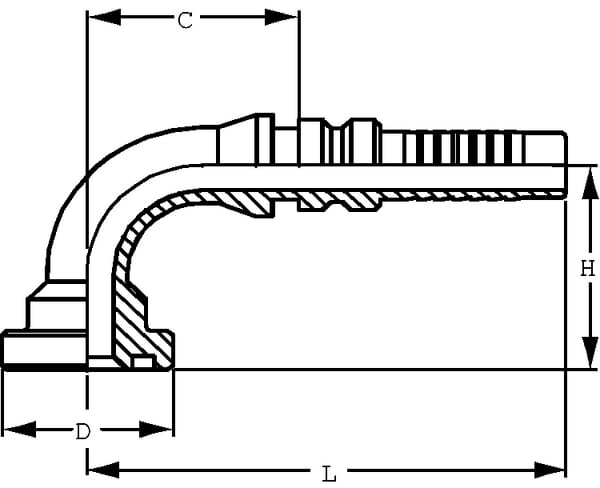

| DConnection no 1 diameter | 1-1/2 Inch |
| DFlange outside diameter | 60.3 mm |
| Flange standard pressure series | 3000 |
| Flange thickness | 8 mm |
| Includes | Insert, Without OVP-ring or O-ring |
| ISO standard | 6162 |
| LConnection no 1 center to end distance | 95.5 mm |
| Material | Steel |
| Product details | Alfagomma Evolution G2, Anchoring by means of interlock system, OVP-ring or O-ring seal, Heavy duty machines with high operating and peak pressures, Hydrostatic drives, Series H17, Always consult the most up to date press tables, see downloads at the bottom of each web page |
| Pros | Press-fitting with heavy-duty anti-slip protection |
| Series | SFLH |
| Shape | Elbow 90° |
| Surface treatment | White passivated, Zinc-plated |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
AFH612
Oleo Tecnica SAE split flange 6000-3/4 AFH612
£6.88 excl.
£8.26 incl.
OR249935390P010
Kramp O-ring 24.99x3.53mm (SAE 3/4") 90 shore 10x OR249935390P010
£1.90 excl.
£2.28 incl.
OVP2308
Hallite Seal ring SAE 3/4 OVP2308
£1.98 excl.
£2.38 incl.
SFAH440
Alfagomma Ferrule DN40 Interlock SFAH440
£30.72 excl.
£36.86 incl.
SFAH4640
Alfagomma Ferrule DN40 Interlock SFAH4640
£41.39 excl.
£49.67 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1055 g |
| Dimensions | 195 × 110 × 60 mm |
| Dangerous goods | No |
You might also like
BPA000343614
Alfagomma Insert DN06-1/4 BSP-90º PF6490
£2.37 excl.
£2.84 incl.
In stock
Expected to ship on Friday 18 September
BPA000343744
Alfagomma Insert with flange DN25-diameter 50.8mm PFL2520
£20.04 excl.
£24.05 incl.
In stock
Expected to ship on Monday 21 September
BPA000252938

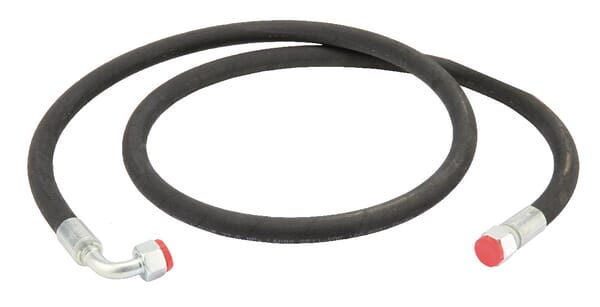

Alfagomma Hydr.Hose compl.DN12.2000-90° DKLO13200090
£42.86 excl.
£51.43 incl.
In stock
Expected to ship on Friday 18 September
BPA000362226

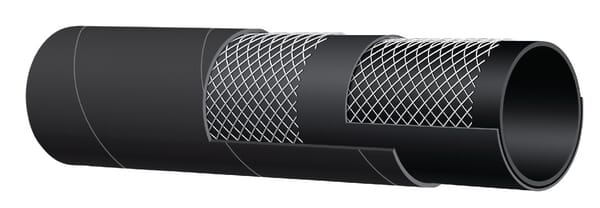

Alfagomma Rubber irrigation hose 18bar 3" SL556076
£26.13 excl.
£31.36 incl.
In stock
Expected to ship on Friday 18 September
BPA000344193
Alfagomma Insert DN16-M30x2.0-20S PGSO1630
£5.21 excl.
£6.25 incl.
In stock
Expected to ship on Friday 18 September
BPA000253080

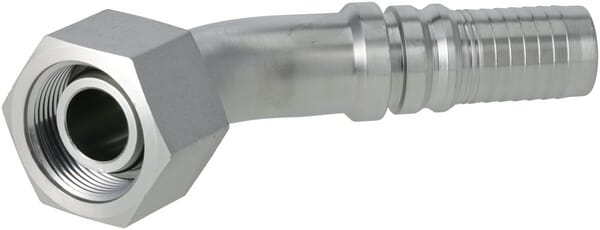

Alfagomma Swage coupling 4SH-DN25-25S-M36x2,0-45° DKOSH253645G2
£38.72 excl.
£46.46 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
BPA000198538
Kramp Hexagon head bolt DIN931 M5x65 steel 8.8 931565B
£0.27 excl.
£0.32 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000122507
Arag Spray control monitor Bravo 300S 7 46730701
£2,634.48 excl.
£3,161.38 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000209344
Kramp Shim diameter 110x140x0.1mm DIN 988 98811014001
£0.88 excl.
£1.06 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000403986
SKF Bearing insert 2-11/16" / 68.27x120x27mm YAR2132112F
£173.20 excl.
£207.84 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000070119
Honda machinery parts V-belt 22431VE0800
£25.19 excl.
£30.23 incl.
In stock
Expected to ship on Friday 18 September
BPA000197138
Kramp Hexagon socket head cap screw DIN912 M6x45 steel 12.9 912645129B
£0.26 excl.
£0.31 incl.
In stock
Expected to ship on Friday 18 September
BPA000070427

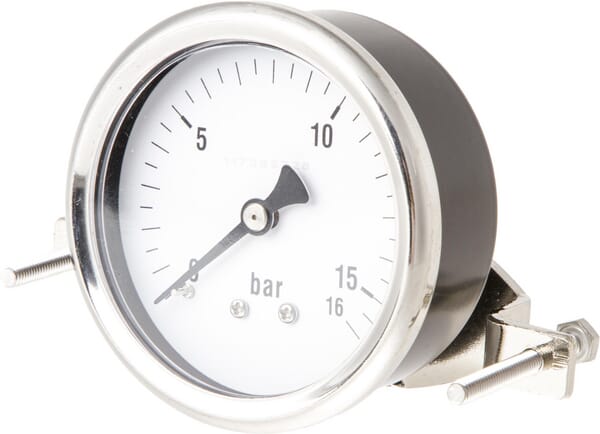

ET Pressure gauge diameter 63mm 0-16bar 1/4"JATO 228016
