£177.19
excl. VAT
£212.63 incl. VAT
£212.63
incl. VAT
£177.19 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Benefits | Press-fitting with heavy-duty anti-slip protection |
|---|---|
| CConnection centre to insert distance | 146 mm |
| Connection 1, type | Hose end |
| Connection 1, type code | SFS |
| Connection 2, diameter | 2 Inch |
| Connection 2, type | Flange |
| Connection no 1 diameter | 2 Inch |
| DFlange outside diameter | 79.4 mm |
| Flange standard pressure series | 6000 |
| Flange thickness | 12.57 mm |
| HConnection 2, centre to end distance | 145 mm |
| Includes | Insert, Without OVP-ring or O-ring |
| ISO standard | 6162 |
| LConnection no 1 center to end distance | 138.5 mm |
| Material | Steel |
| Product details | Alfagomma Evolution G2, Anchoring by means of interlock system, OVP-ring or O-ring seal, Heavy duty machines with high operating and peak pressures, Hydrostatic drives, Series H17, Always consult the most up to date press tables, see downloads at the bottom of each web page |
| Pros | Press-fitting with heavy-duty anti-slip protection |
| Series | SFSH |
| Shape | Elbow 90° |
| Surface treatment | White passivated, Zinc-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2880 g |
| Dimensions | 310 × 175 × 85 mm |
| Dangerous goods | No |
You might also like
BPA000152469

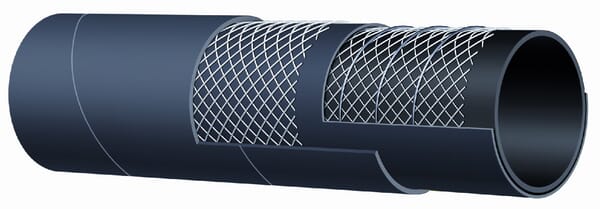

Alfagomma Suction/pressure hose SAE100-R4-DN25 604AA25
£14.75 excl.
£17.70 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000251375

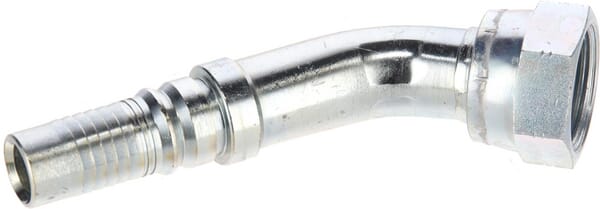

Alfagomma Swage coupling 4SH-DN20-1.3/16" ORFS-45° DAVH201945G2
£16.76 excl.
£20.11 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000298851
Alfagomma Elbow coupling 9/16JIC x 3/8BSPT KIBT0906
£8.55 excl.
£10.26 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000299002

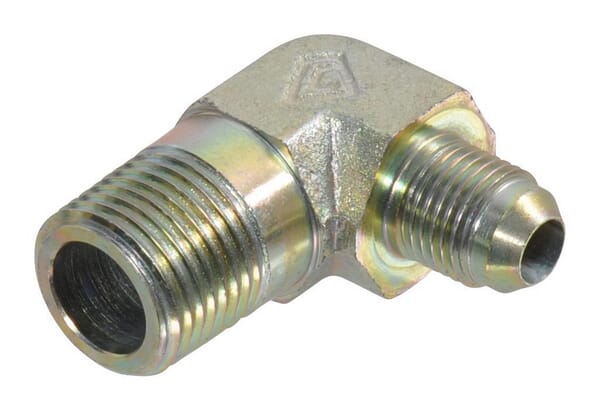

Alfagomma Elbow coupling 9/16JIC x 1/4NPT KIN0904
£5.84 excl.
£7.01 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000337612

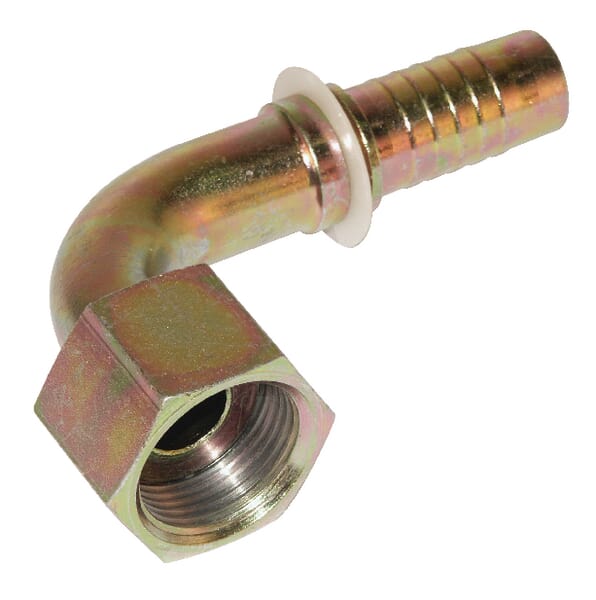

Alfagomma Insert DN06-11/16 ORFS 90° PAV61190S
£5.99 excl.
£7.19 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000358831

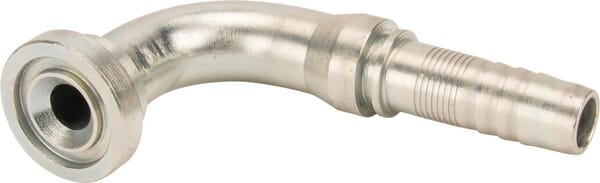

Alfagomma Insert NS-DN40-flange diameter 79,4 90 SFSNS403290G2
