£25.76
excl. VAT
£30.91 incl. VAT
£30.91
incl. VAT
£25.76 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Body height | 60.5 mm |
|---|---|
| Cone angle | 74 ° |
| Connection 1, thread diameter | 1-5/16 Inch |
| Connection 1, thread type | JIC |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | 1 Inch |
| Connection 2, thread length | 15.5 mm |
| Connection 2, threads per inch | 11 |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection no 1 threads per inch | 12 |
| LConnection no 1 length | 30 mm |
| Material | Steel |
| Max working pressure | 190 BAR |
| Product details | For pipe with 37º (74º) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514. Connection thread on the 37º cone side is UNF in accordance with ANSI |
| Series connection 1 | n/a |
| Shape | Straight |
| Surface treatment | Galvanised |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 260 g |
| Dimensions | 70 × 44 × 43 mm |
| Dangerous goods | No |
You might also like
BPA000343805

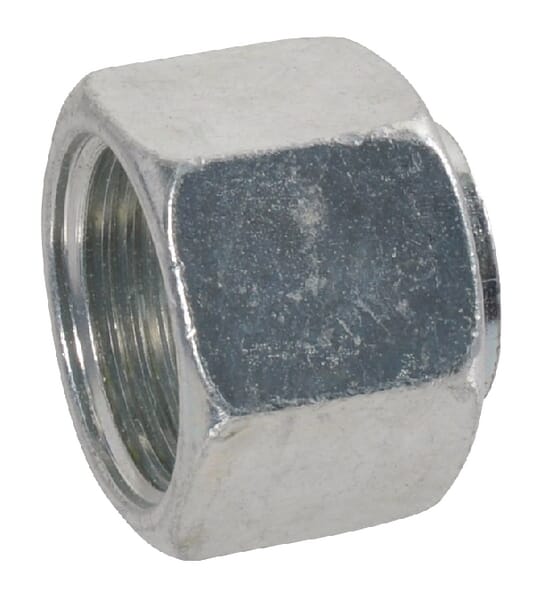

Alfagomma End cap 11/16 ORFS PFO11
£3.34 excl.
£4.01 incl.
In stock
Expected to ship on Friday 18 September
BPA000253444

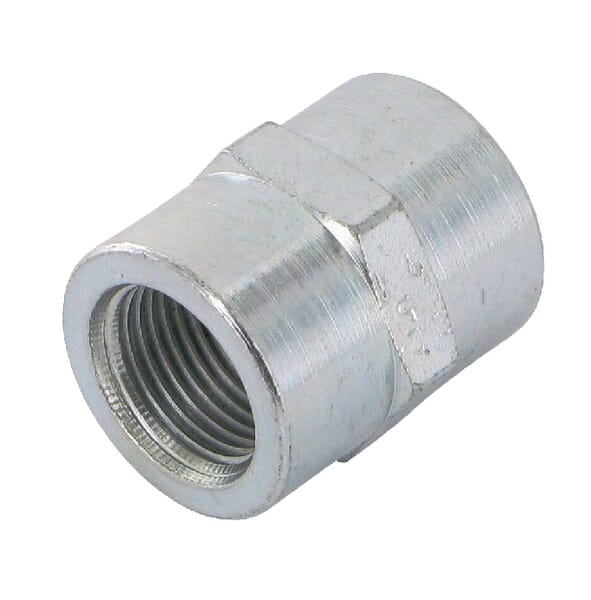

Alfagomma Double nipple 3/4 BSP, female DNBC12
£8.98 excl.
£10.78 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000341075

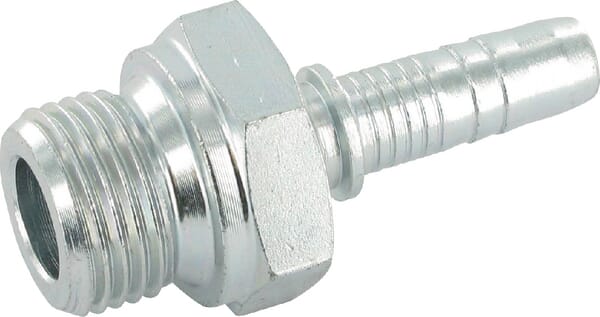

Alfagomma Insert DN16 M 5/8" BSP PNV1610
£11.19 excl.
£13.43 incl.
In stock
Expected to ship on Friday 18 September
BPA000343814

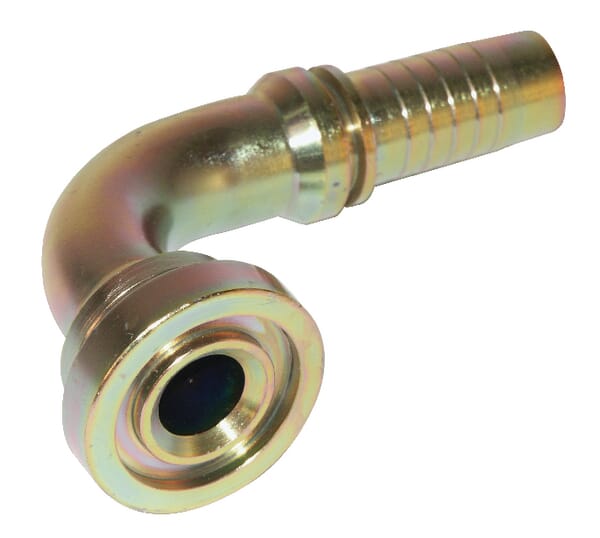

Alfagomma Insert with flange DN13-diameter 41.3mm-90° PFS131290
£20.58 excl.
£24.70 incl.
In stock
Expected to ship on Friday 18 September
BPA000289574

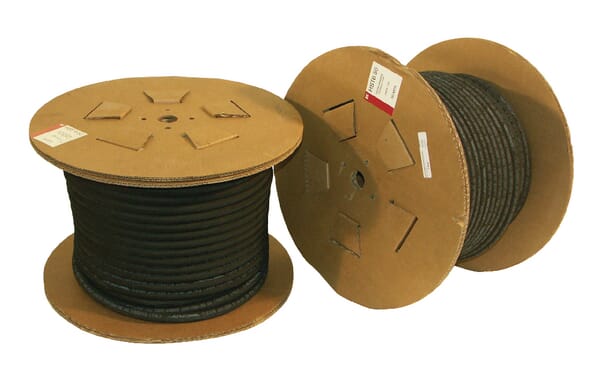

Alfagomma Hose HSKHF6 on reel HSKHF6P050M
£4.26 excl.
£5.11 incl.
In stock
Expected to ship on Friday 18 September
BPA000253007

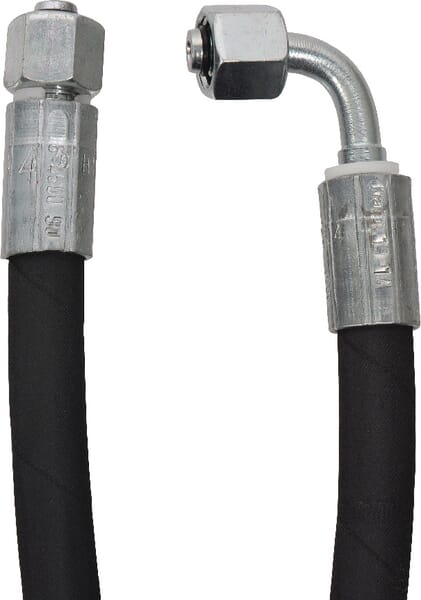

Alfagomma Hydr. hose cpl DN06.4500-90° DKLO6450090
£43.59 excl.
£52.31 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
BPA000367318
Optibelt Timing belt T10 69 teeth 690x25mm T1069025
£60.54 excl.
£72.65 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000301820
Kramp Wood screw M8 x 70mm (6) KR571870P06B
£1.43 excl.
£1.72 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000298371

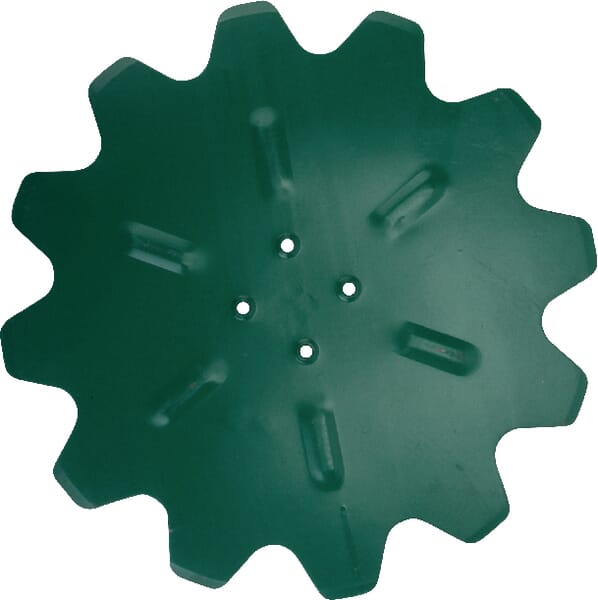

Kverneland Coulter disc 22" toothed KK076295R
