£7.00
excl. VAT
£8.40 incl. VAT
£8.40
incl. VAT
£7.00 excl. VAT
In stock
Expected to ship on Tuesday 22 September

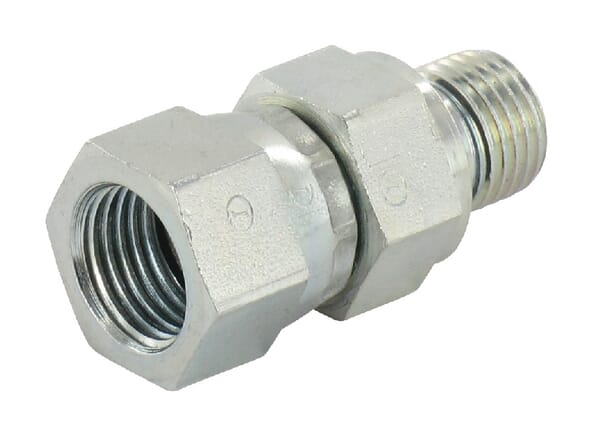

Product details
| Body height | 33.5 mm |
|---|---|
| Cone angle | 74 ° |
| Connection 1, thread diameter | 7/16 Inch |
| Connection 1, thread type | JIC |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | 1/8 Inch |
| Connection 2, thread length | 7 mm |
| Connection 2, threads per inch | 28 |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection no 1 threads per inch | 20 |
| Material | Steel |
| Max working pressure | 380 BAR |
| Product details | For pipe with 37º (74º) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514. Connection thread on the 37º cone side is UNF in accordance with ANSI |
| Series connection 1 | n/a |
| Shape | Straight |
| Surface treatment | Galvanised |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 30 g |
| Dimensions | 42 × 18 × 18 mm |
| Dangerous goods | No |
You might also like
BPA000358459

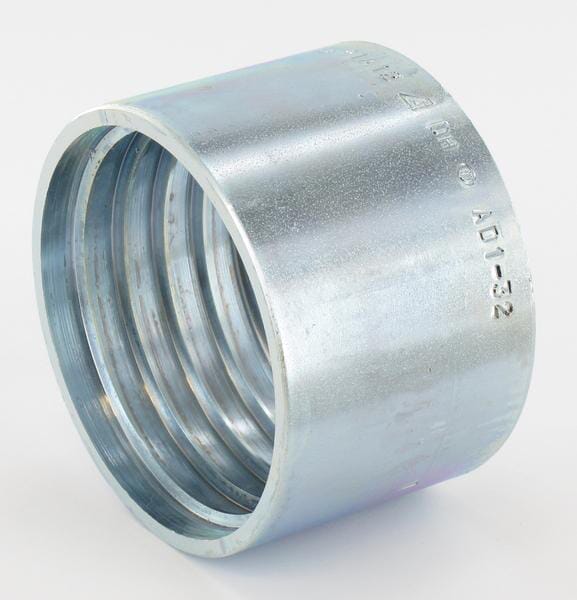

Alfagomma Ferrule diameter 74x48.6mm DN50 Steel / zinc-plated SFAD150
£32.09 excl.
£38.51 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000252982

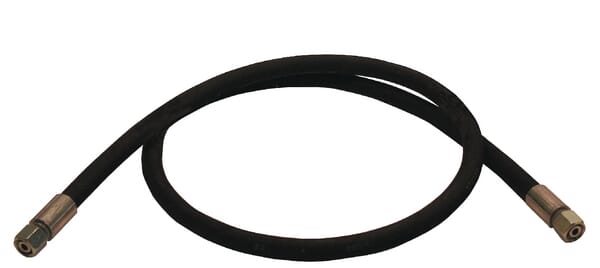

Alfagomma Hydraulic hose DN06 1600mm DKLO61600
£28.03 excl.
£33.64 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000365520
Alfagomma HSK-PQ swage coupling set SWAGEKIT2HSKPQ
£2,658.31 excl.
£3,189.97 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000344105
Alfagomma Insert DN06-M16x1.5-10L PGLO616
£2.19 excl.
£2.63 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000349156

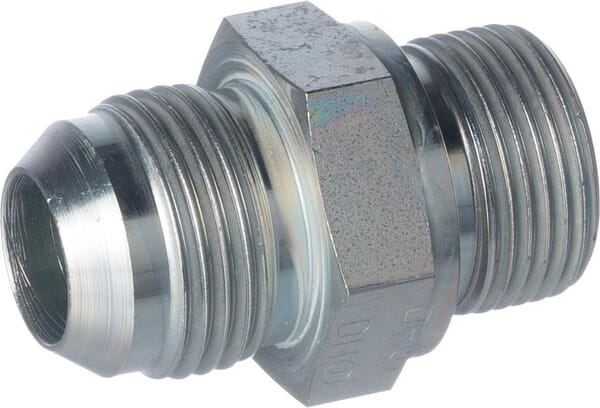

Alfagomma Adaptor 1-1/16 JIC x 3/4 BSP RIB1712WD
£8.58 excl.
£10.30 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000343844

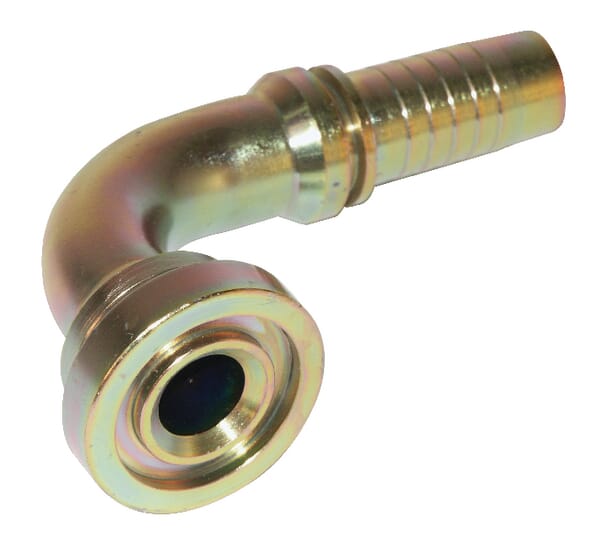

Alfagomma Insert with flange DN32-diameter 54.0mm-90° PFS322090
£53.95 excl.
£64.74 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
BPA000375633

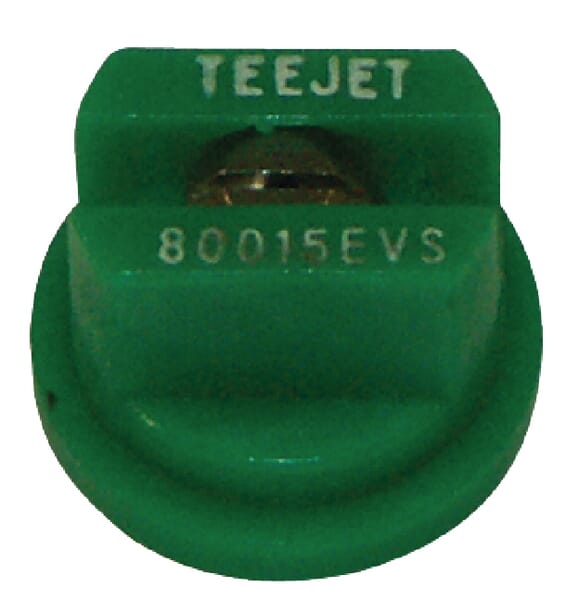

TeeJet Band nozzle TP 80° 015 green stainless steel TP80015EVS
£12.31 excl.
£14.77 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000060078

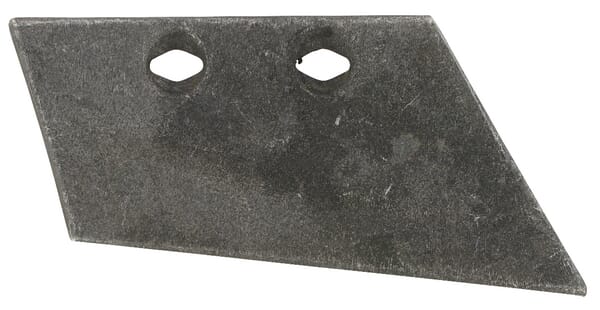

Grégoire-Besson Skim share (reinforced) right H and Gand B 19114
