£9.99
excl. VAT
£11.99 incl. VAT
£11.99
incl. VAT
£9.99 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.

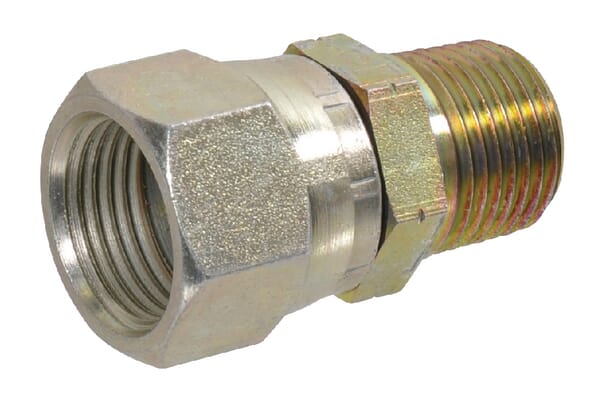

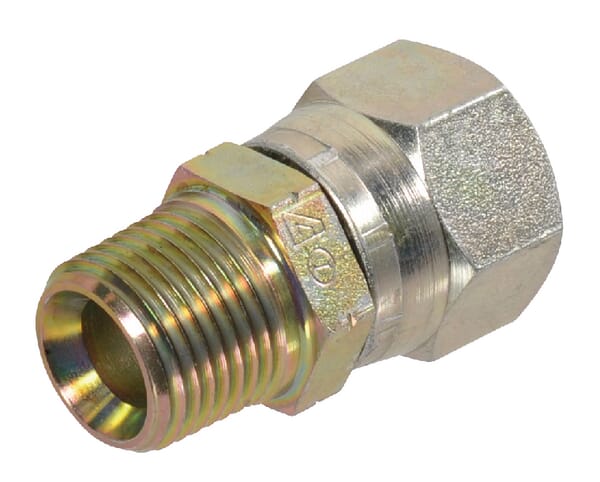

Product details

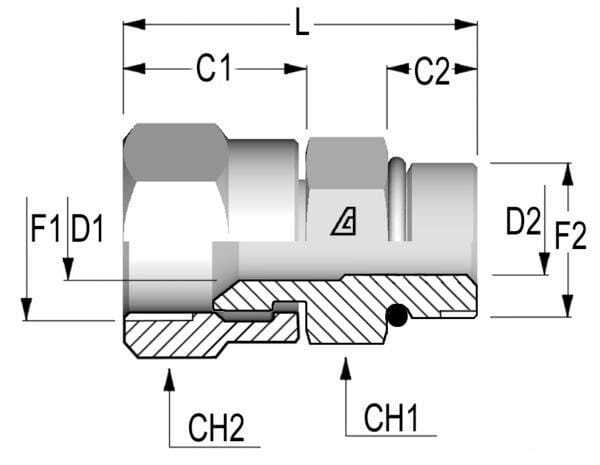

| Cone angle | 74 ° |
|---|---|
| Connection 1, thread diameter | 9/16 Inch |
| Connection 1, thread type | JIC |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | 1/4 Inch |
| Connection 2, thread length | 14.5 mm |
| Connection 2, threads per inch | 18 |
| Connection 2, thread type | NPT |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection no 1 threads per inch | 18 |
| Material | Steel |
| Max working pressure | 380 BAR |
| Product details | For standpipes 37º (74º) against cone and inserts with UNF/JIC fittings acc. SAE I 514, Cone according to UNF ANSI |
| Series connection 1 | n/a |
| Shape | Straight |
| Surface treatment | Galvanised |
| Total length | 40.5 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 50 g |
| Dimensions | 50 × 28 × 17 mm |
| Dangerous goods | No |
You might also like
BPA000253127

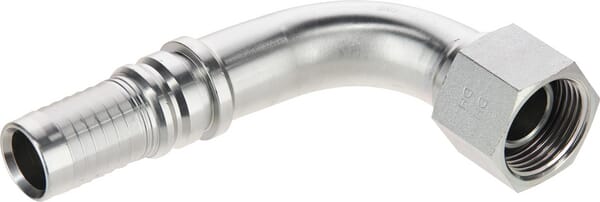

Alfagomma Swage coupling 4SH-DN25-1" BSP-90° DKRH251690G2
£28.17 excl.
£33.80 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000344093

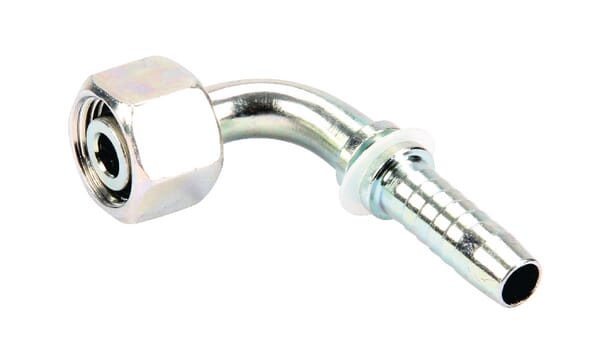

Alfagomma Insert DN06-M12x1.5-6L-90° PGLO61290
£6.17 excl.
£7.40 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000251407

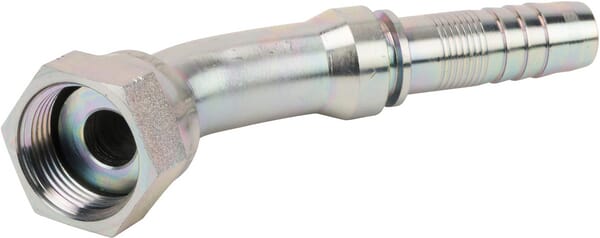

Alfagomma Insert F NS-DN25-1.7/16 ORFS 45 DAVNS252345G2
£27.58 excl.
£33.10 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000279034

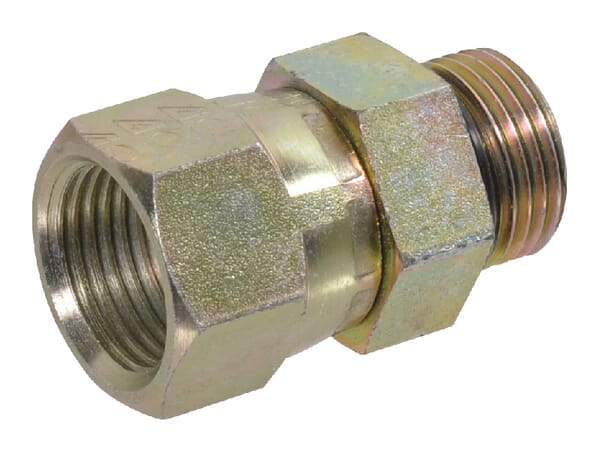

Alfagomma Stud swivel 9/16 UNF FMU09
£14.06 excl.
£16.87 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000299163

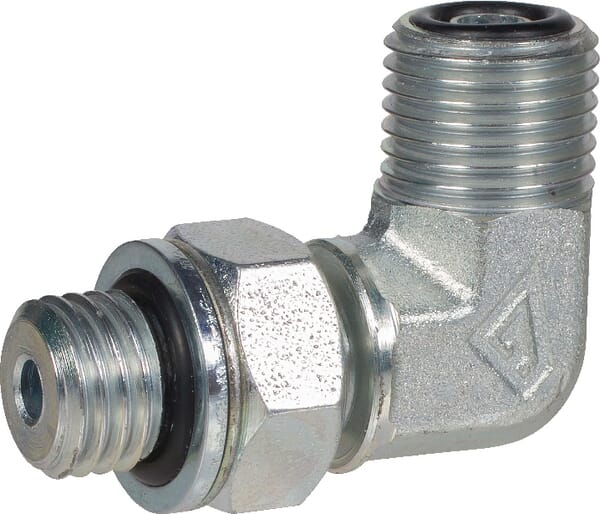

Alfagomma Elbow ORFS 11/16"xM14 KIOM1114
£19.02 excl.
£22.82 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000336509

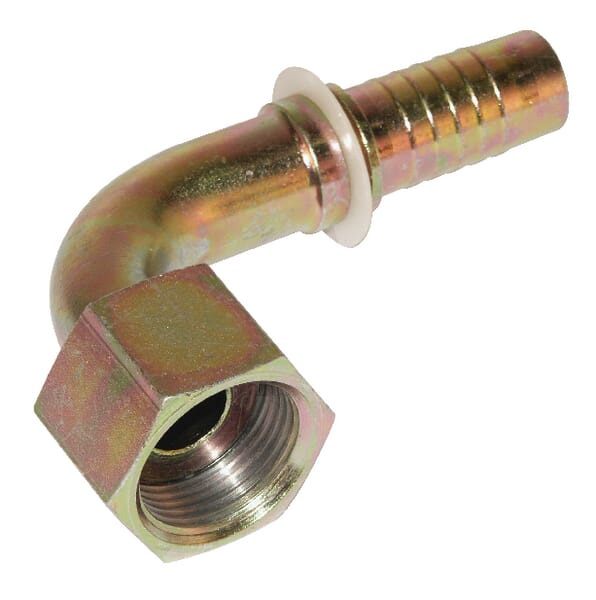

Alfagomma Insert DN10-11/16 ORFS 90° PAV101190S
£6.54 excl.
£7.85 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
Free shipping
BPA000152736

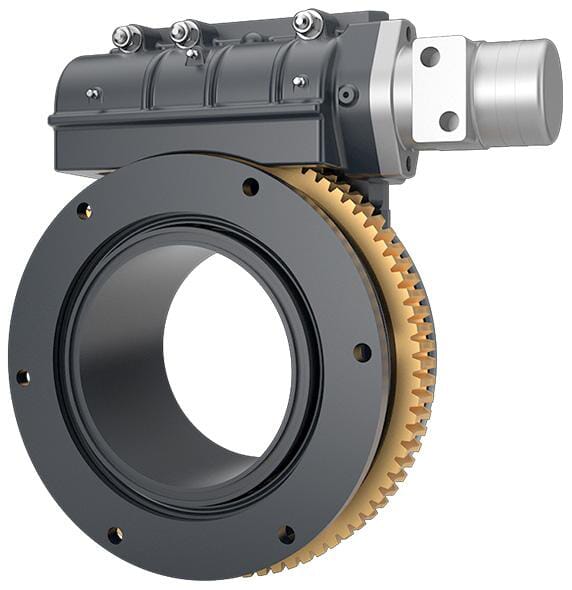

Battioni Pagani REVOBLOCK 10-200 MY21 with motor 6080200522
