£18.91
excl. VAT
£22.69 incl. VAT
£22.69
incl. VAT
£18.91 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

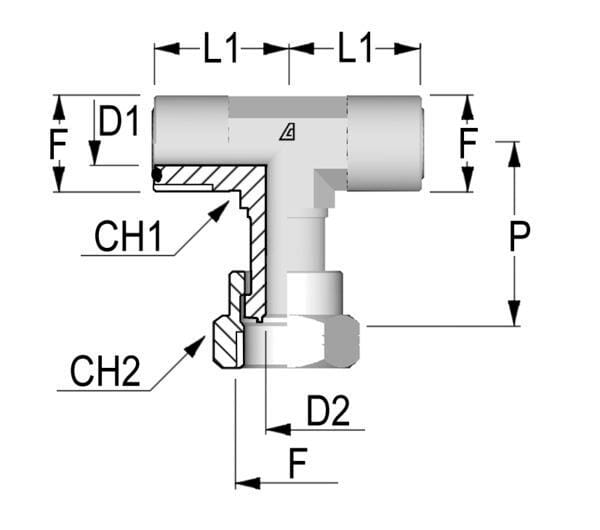

| CH2Connection no 1 wrench size | 22.0 mm |
|---|---|
| Connection 1, thread diameter | 11/16 Inch |
| Connection 1, thread type | ORFS |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 11/16 Inch |
| Connection 2, thread type | ORFS |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 3, thread diameter | 11/16 Inch |
| Connection 3, thread type | ORFS |
| Connection 3, type | Swivel nut |
| Connection 3, type - male/female | Female |
| Long description | ORFS fittings are ideal for high-pressure applications, mainly used in US products. The O-Ring Face Seals provide a reliable, leak-proof connection with a reusable design and easy assembly, significantly reducing installation and maintenance time. |
| Material | Steel |
| Product details | High tightening torques, Reusable, O-Ring Face Seals, O-ring in recess on the connection surface of the nipple, Standard : SAE I 1453, Material: Steel, Surface treatment : Zinc-plated, Viton seal available on request |

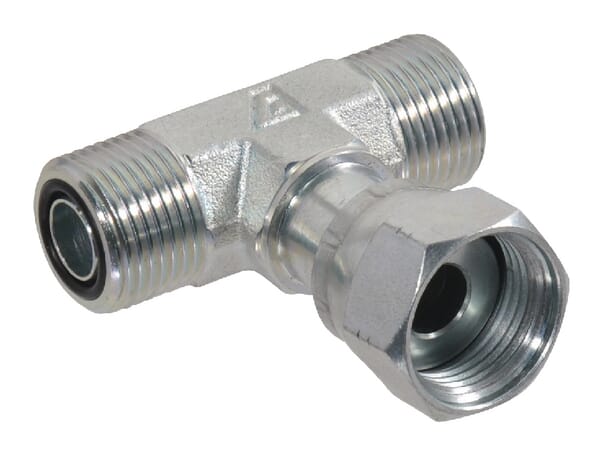

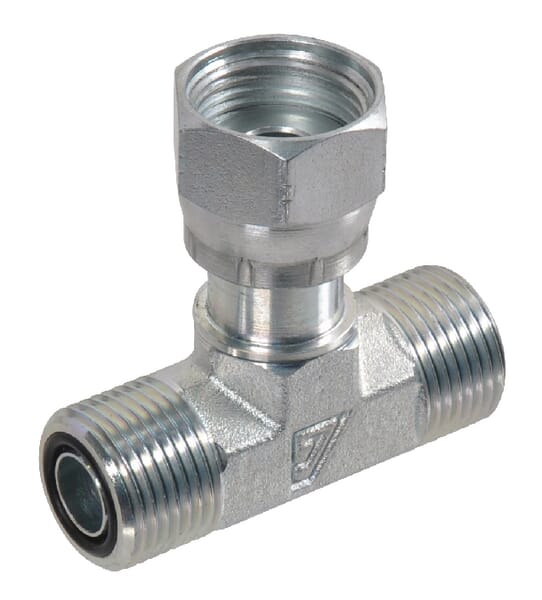

| Shape | Tee (T) |
| Surface treatment | Galvanised |
| Unit | Each |
| Working pressure | 400 BAR |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 123 g |
| Dimensions | 55 × 40 × 25 mm |
| Dangerous goods | No |
You might also like
BPA000375587
Alfagomma T piece M/M/F 7/8 JIC TOU14
£21.76 excl.
£26.11 incl.
In stock
Expected to ship on Friday 18 September
BPA000299160

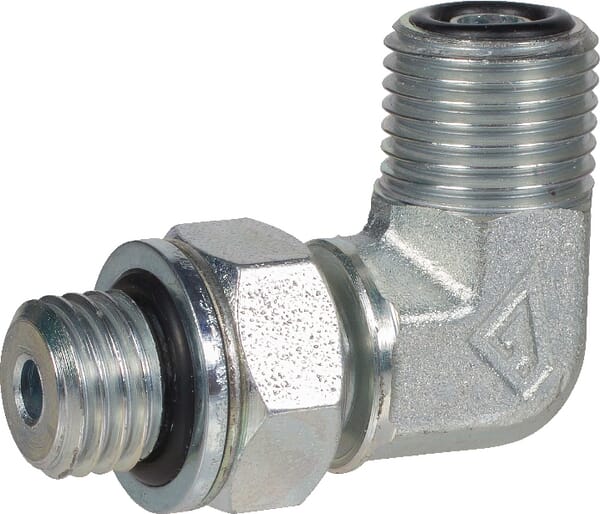

Alfagomma Elbow ORFS 9/16"xM10 KIOM0910
£16.31 excl.
£19.57 incl.
In stock
Expected to ship on Monday 21 September
BPA000343300
Alfagomma Insert DN10-diameter 14mm-45° PU101445
£6.76 excl.
£8.11 incl.
In stock
Expected to ship on Monday 21 September
BPA000316213

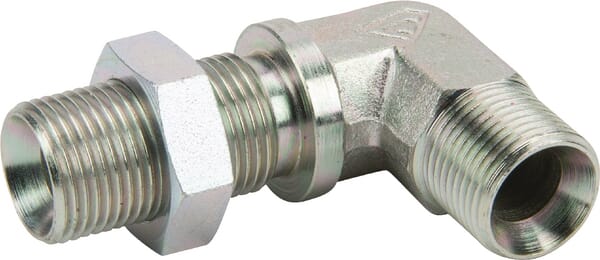

Alfagomma Partition adaptor 90° 3/8"BSP MM9006BH
£8.85 excl.
£10.62 incl.
In stock
Expected to ship on Friday 18 September
BPA000252956

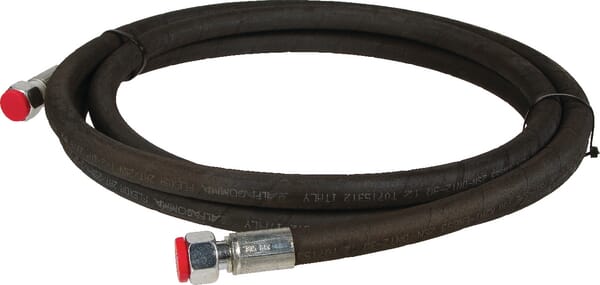

Alfagomma Hydraulic hose DN12 4500mm DKLO134500
