£11.94
excl. VAT
£14.33 incl. VAT
£14.33
incl. VAT
£11.94 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

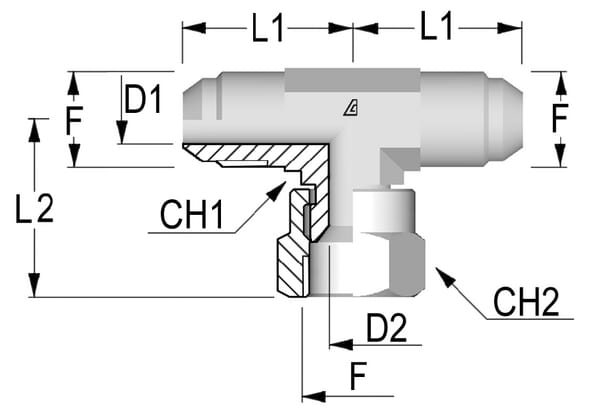

| CH1Connection no 1 wrench size | 14.0 mm |
|---|---|
| CH2Connection 3, wrench size | 19.0 mm |
| Connection 1, thread diameter | 9/16 Inch |
| Connection 1, thread type | UNF |
| Connection 1, type | Thread |
| Connection 2, thread diameter | 9/16 Inch |
| Connection 2, thread type | UNF |
| Connection 2, type | Thread |
| Connection 3, thread diameter | 9/16 Inch |
| Connection 3, thread type | UNF |
| Connection 3, type | Thread |
| D1Pipe diameter | 3/8 Inch |
| L1Connection centre to insert distance | 27 mm |
| L2Connection no 1 center to end distance | 32 mm |
| Long description | Technical information:, For standpipes 37º (74º) against cone and inserts with UNF/JIC fittings acc. SAE I 514. Cone acc. To UNF ANSI. |
| Material | Steel |
| Pipe diameter | 10 mm |

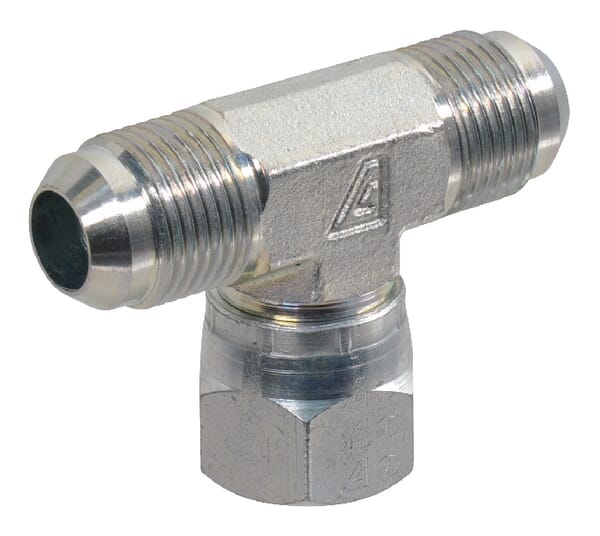

| Shape | Tee (T) |
| Surface treatment | Galvanised |
| Unit | Each |
| Working pressure | 380 BAR |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 78 g |
| Dimensions | 60 × 45 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000226198

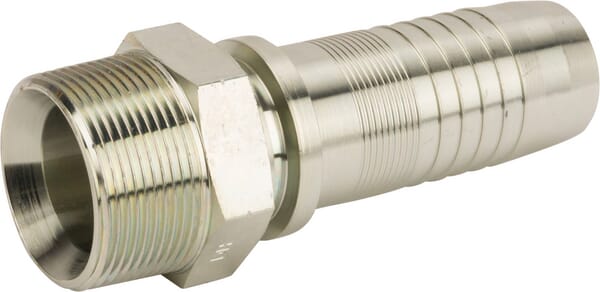

Alfagomma Insert M NS-DN50-2" NPT AGNNS5032G2
£66.87 excl.
£80.24 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000253013

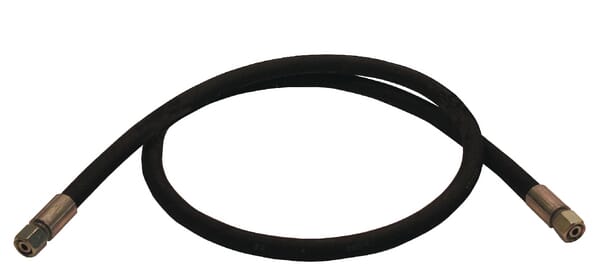

Alfagomma Hydraulic hose DN06 6000mm DKLO66000
£52.40 excl.
£62.88 incl.
In stock
Expected to ship on Friday 18 September
BPA000344245
Alfagomma Insert DN06-M20x1,5-12S-45° PGSO62045
£18.77 excl.
£22.52 incl.
In stock
Expected to ship on Monday 21 September
BPA000336515
Alfagomma Insert DN10-13/16 ORFS-90° PAV101390
£5.89 excl.
£7.07 incl.
In stock
Expected to ship on Friday 18 September
BPA000252923

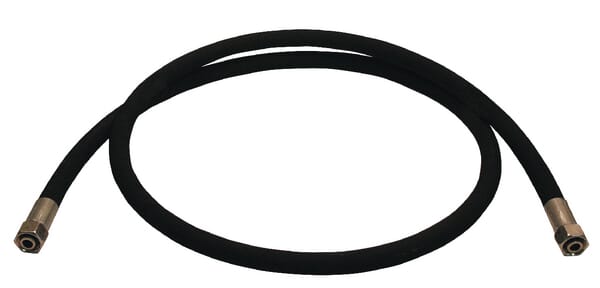

Alfagomma Hydraulic hose DN12 1100mm DKLO131100
£30.61 excl.
£36.73 incl.
In stock
Expected to ship on Friday 18 September
BPA000342843
Alfagomma Insert DN10 (3/8") - diameter 10 mm standpipe PT1010
£1.59 excl.
£1.91 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
BPA000349143

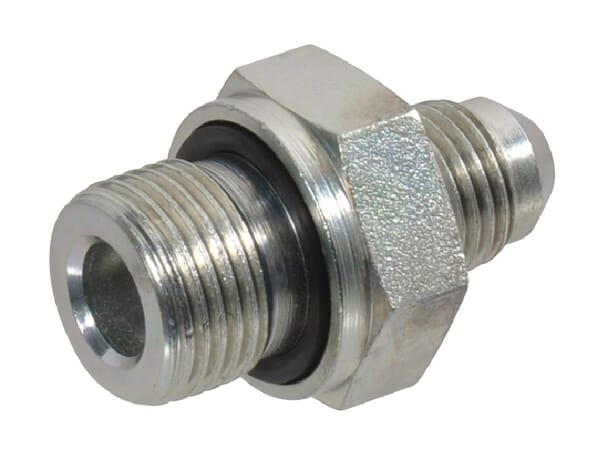

Alfagomma Male stud 3/4 JIC x 3/4 BSP RIB1212WD
£7.02 excl.
£8.42 incl.
In stock
Expected to ship on Friday 18 September
BPA000306883
Kverneland / Taarup Sealing Washer KT99428518
£2.43 excl.
£2.91 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000367179
TESA Tape 4311 white 50m x 48mm T043110000600
£0.73 excl.
£0.88 incl.
In stock
Expected to ship on Friday 18 September
BPA000401514
Weber Brush Systems Disc brush Sensitiv 150mm 3-row bore 20mm WB1500320
£92.79 excl.
£111.35 incl.
In stock
Expected to ship on Friday 18 September
BPA000402761
GLT/LHG Plain bearing bush 65x70x30mm ZB657030PTFE
£5.41 excl.
£6.49 incl.
In stock
Expected to ship on Friday 18 September
BPA000156327

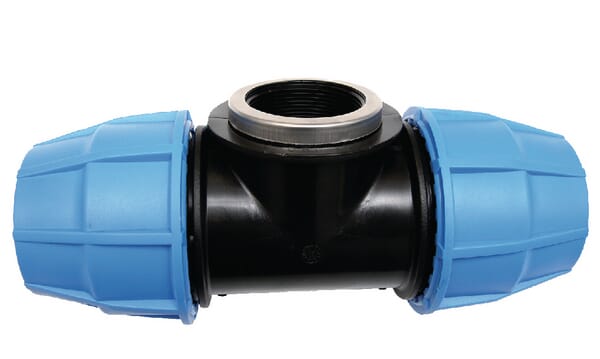

Supreme S16 T piece 32x1.1/4"F 654431S
