£149.73
excl. VAT
£179.68 incl. VAT
£179.68
incl. VAT
£149.73 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details

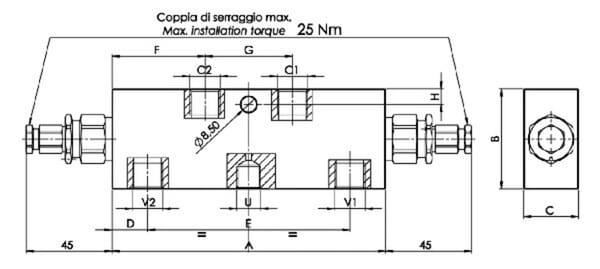

| Adjustable pressure range | 60-210 BAR |
|---|---|
| Body length | 150 mm |
| BTotal height | 55 mm |
| Connections thread diameter | 3/8 Inch |
| CTotal width | 30 mm |
| Designed for medium | Hydraulic oil |
| EConnections distance - long | 111 mm |
| GConnections distance - short | 48 mm |
| Includes | Cartridge, Steel housing |
| Long description | Equalising valves or brake valves provide controlled movement, stopping and holding of loads. They prevent the lag of movements (negative load) and protect the installation against external forces (anti-shock). Overcentre valves provide controlled initiation and stopping of a movement, while holding the load at rest. When mounted directly on the cylinder or motor, they also function as hose breakage protection. |
| Material | Steel |
| Max flow rate | 50 l/min |
| Max working pressure | 350 BAR |
| Max working temperature | 90 °C |
| Min working temperature | -20 °C |
| Number of connections | 4 |
| Pilot ratio | 1:4.25 |
| Product details | Load-holding function adjustable for A or B lines, pressure setting should be approx. 30% higher than the maximum load pressure, Operation is return pressure dependent, high return pressure may adversely affect the function of the valve, Free flow from V to C, Max. pressure 350 bar., Max. flow Range 0 to 120 l/min |
| Pros | Allows smooth, controlled movements and accurate positioning of pulling and pushing loads, Hose breakage protection if fitted as close to the user as possible, Negative final check |
| Sealing material | Buna-N |
| Standard pressure setting | 170 BAR |
| Surface treatment | Zinc-plated |
| Total length | 246 mm |
| Type | Double |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1851 g |
| Dimensions | 245 × 55 × 30 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000279524
FluidPress Counter balance valve double 3/8" FPOE15D38L35
£192.44 excl.
£230.93 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000279503
FluidPress Counter balance valve double 3/8" FPO50D38L20
£137.28 excl.
£164.74 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000279504
FluidPress Counter balance valve double 3/8" FPO50D38L35
£103.50 excl.
£124.20 incl.
In stock
Expected to ship on Friday 18 September
BPA000279513
FluidPress Counter balance valve FPO50S38VLM35
£81.39 excl.
£97.67 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000279518

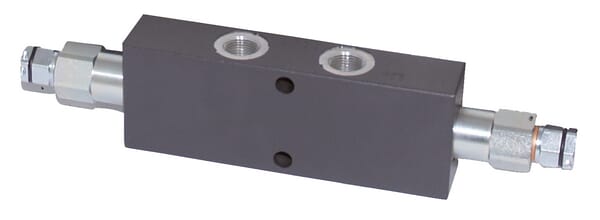

FluidPress Counter balance FPOB 50 D 3/8 L 35 FPOB50D38L35
£215.66 excl.
£258.79 incl.
In stock
Expected to ship on Friday 18 September
BPA000279590

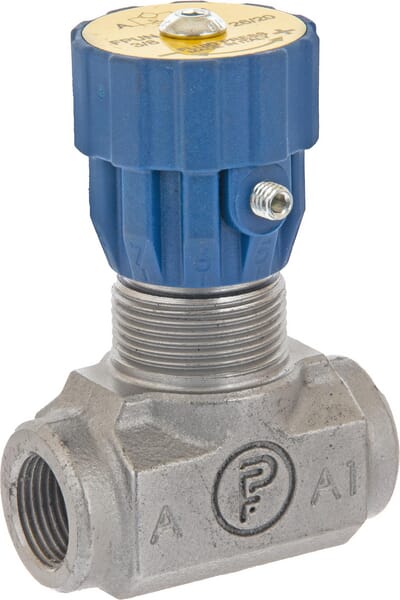

FluidPress Throttle check valve M08-0,5-1/2 FPUN10001
