£1,043.53
excl. VAT
£1,252.24 incl. VAT
£1,252.24
incl. VAT
£1,043.53 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Drive shaft | 1 3/8 Inch |
|---|---|
| Flow max. | 36 l/min |

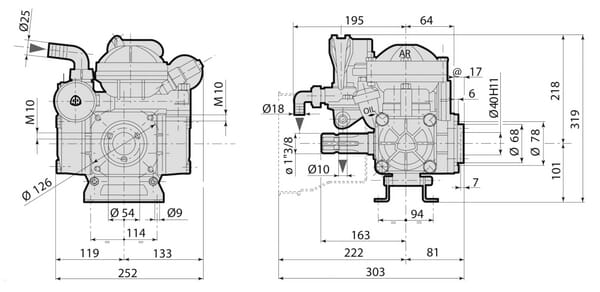

| Height | 319 mm |
| Length | 244 mm |
| Material piston diaphragms | BlueFlex |
| Ø Intake | 25 mm |
| Ø Outlet | 18 mm |
| Power | 3.26 HP |
| Pressure max. | 40 BAR |

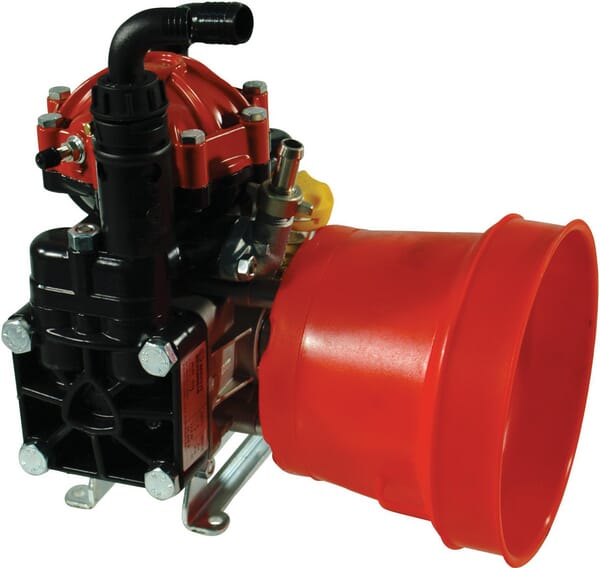

| Product details | Anodised medium- and high-pressure pumps, All parts coming into contact with liquid are anodised (the AR30 and AR50 versions are plastic-coated), Long service life, For sprayers in fruit and wine growing (tall-growing crops), The crank drive case runs in an oil bath, with a control tank, All screws are zinc-plated, The pumps are equipped with rubber membranes as standard, A safety valve is fitted as standard (except the AR303, AR403 and AR503), The protective cap is supplied with C/SP pumps as standard, SP: pump with universal shaft as driving shaft, C: pump with a cardan shaft 1 3/8" 6 pieces, C/C: pump with through shaft: double-sided cardan shaft 1 3/8" 6 spline - 1 3/8" 6 spline, C/SP: pump with through shaft: 1 3/8" - 6 pieces, universal shaft |
| Rotation max. | 550 r/min |
| Shaft type | 1 3/8" (6) |
| Temperature max. | 60 °C |
| Type | 2 membranes |
| Unit | Each |
| Weight | 11 kg |
| Width | 252 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 11000 g |
| Dimensions | 340 × 260 × 340 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000051915
Annovi Reverberi Pump, AR 320 bp Twin AP C/C BlueFlex 16273AR
£4,659.80 excl.
£5,591.76 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000031941
Annovi Reverberi GS20/GI40 valve seat 110121
£5.52 excl.
£6.62 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000140355
Annovi Reverberi Fittings for hydraulic motors "IDM" 55372
£220.68 excl.
£264.82 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000232056

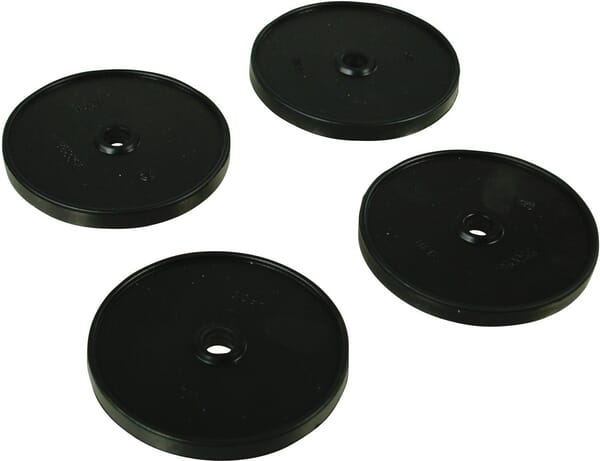

Annovi Reverberi Diaphragm set HPDS (4) AR2372
£110.13 excl.
£132.16 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000155179

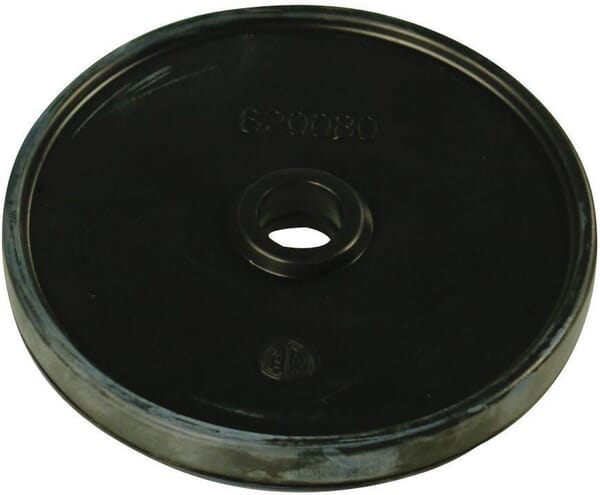

Annovi Reverberi Diaphragm rubber 620080
