£394.44
excl. VAT
£473.33 incl. VAT
£473.33
incl. VAT
£394.44 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details

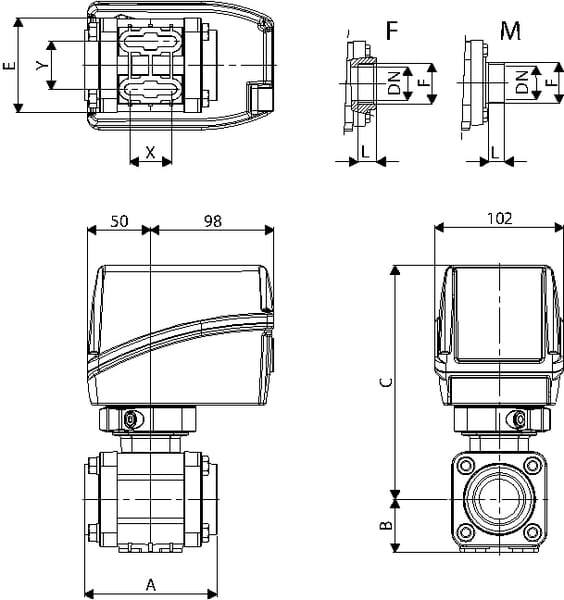

| ALength pass through | 105 mm |
|---|---|
| Ball material | Stainless steel 316 |
| BHeight from bottom to center | 42 mm |
| CHeight from top to center | 171 mm |
| DNNominal diameter | 32 mm |
| EWidth pass through | 75 mm |
| FThread | 1 1/4 F Inch |
| LLength nipple | 25 mm |
| Max. working pressure | 12 BAR |
| Properties | Ball positioning seats made from Teflon, Internal O-rings made from viton, Clamping devices for flange mounting made from stainless steel, protected by the valve housing |
| Response time | 1.4 s |

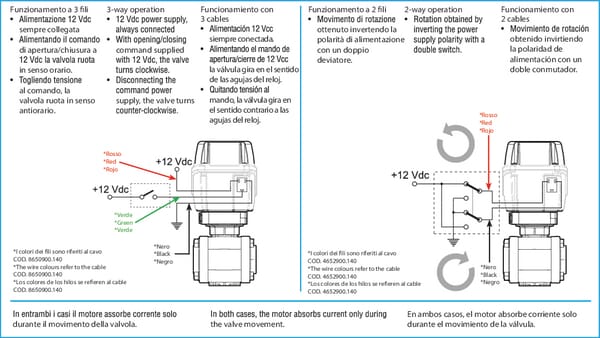

| Technical info | The abbreviation "A" in the item number means: female thread on both sides; "E" means male thread on both sides, NO: normally open, The valves are designed for the 3-wire function (++-), a supply with 12Vdc:, As long as the controller is fed, the valve rotates and moves into position, in which it interrupts the power consumption independently., If the power supply is interrupted, the gear motor brings the ball back to its original position, The valves are also compatible with the 2-wire controllers:, where the opening/closing movement by reversing the supply polarity is achieved with a double diverter |
| Unit | Each |
| Voltage | 12 V |
| XLength between fixing holes | 33 mm |
| YWidth between fixing holes | 38 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2017 g |
| Dimensions | 225 × 160 × 100 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000191766

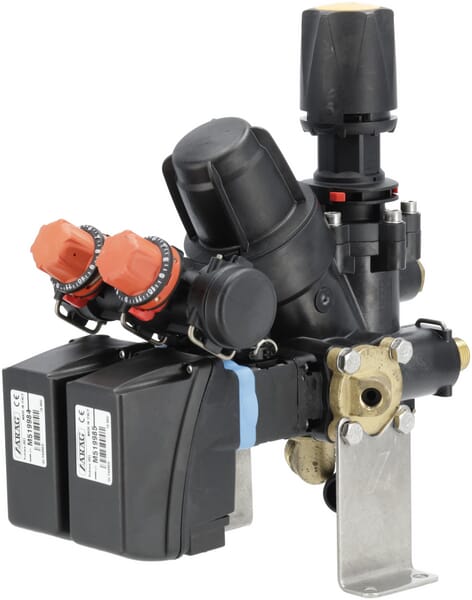

Arag Electric orchard unit, 2 Sections, by-pass 40bar 50m 881E14202
£686.91 excl.
£824.29 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000077663
Arag Reducer male male T7/T6 259167
£2.51 excl.
£3.01 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000107478
Arag Nozzle holder with 2 hose tails 10 mm 413121
£2.10 excl.
£2.52 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000189378
Arag Electric 3 Way ball valve with bottom inlet and T6 fork coupling 853T25S66
£450.67 excl.
£540.80 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000117507
Arag Housing 461031010
£21.21 excl.
£25.45 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000109309
Arag Nozzle cap, bayonet, SW8/10, brown, 40299007
£1.20 excl.
£1.44 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
BPA000198285
Kramp Hexagon head bolt DIN931 M27x140 steel 10.9 93127140109B
£11.83 excl.
£14.20 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000211003
Kverneland Tarpaulin RH LH ANSI Fr A132786700
£257.26 excl.
£308.72 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000031493
Schumacher Set of 25 coarse serrated blades 1098902
£57.56 excl.
£69.07 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000311101
Bahco Saw blade 2315x20x0.9 T = EZ-L LZ23152009EZL
£78.76 excl.
£94.51 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000202316
Kramp Hexagon nut DIN934 M14x2.00 steel zinc-plated Class 10 9341410
£0.59 excl.
£0.71 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000084455
Kramp Oil seal 30x72x8mm type:CC DIN 3760 1x 30728CCP001
£2.42 excl.
£2.90 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000179146
Kramp Pan head machine screw M4x50 stainless steel A2 DIN7985 7985450RVS
£0.16 excl.
£0.19 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000052763
Kramp V-belt pulley 2 groove Z or SPZ diameter 164 mm 160Z2
£44.76 excl.
£53.71 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000346525
Non Original Rotovator blade RH 165x90x60mm 6mm thick suitable for Goldoni RB25004
£11.08 excl.
£13.30 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000104810
Kramp Oil seal 41x56x7mm type:CB DIN 3760 1x 41567CBP001
£4.80 excl.
£5.76 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000346484

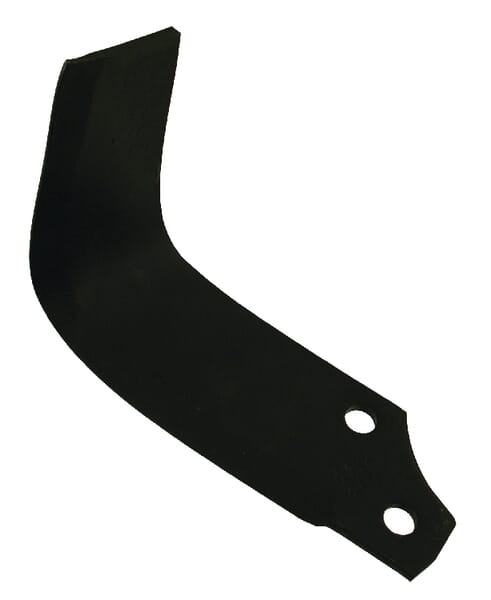

Non Original Rotovator blade LH 190x115x60mm 6mm thick suitable for Maschio RB19100416
