£1,836.64
excl. VAT
£2,203.97 incl. VAT
£2,203.97
incl. VAT
£1,836.64 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Multiple row garden sprinkler with 4, 5 or 7 part width sections# |
|---|---|
| Benefits | Has a test menu for all connected sensors, operating buttons and valves, Manual or automatic dosing control, Automatic detection of worn nozzles |
| Cable length valves | 4 m |
| Consists of | Sprinkler control computer, With sensor for vehicle speed, Assembly set, Connecting cable for sensors and diverter valves (4 diverters), Power cable, SD card for data storage, Instructions |
| Details | Power supply max. 10A, Mounting in the cab, Any damage caused through the mounting of valves or sensors not sourced from Arag will not be covered by the warranty |
| Numbers of valves | 2 |
| Properties | This multiple row Arag Bravo 300S was specially designed for garden sprinklers. Automatic dosing for 2, 4, 5 or 7 part width sections. With the 300S, manual and automatic dosing is possible, Setting the number of rows per part width section as well as the valve type (2 or 3-way), 2 operating modes for the part width sections:, Mode P: Part width section switches have priority over the main switch, Mode M: The main switch has priority over the part width section switches (normal setting), Max. 19 sprinkler configurations stored, SD card slot for storing tasks, settings and software updates, Display of: current dosing, total dosing, vehicle speed, pressure, flow, liquid level in the container, speed of rotation, processed area, operating duration, productivity, date and time as well as distance covered, Automatic shut-down as soon as the operating pressure falls below the set value, Automatic shut-down as soon as the vehicle speed falls below the set value, Automatic switchover to the pressure sensor as soon as the flow meter registers a flow rate exceeding the parameter, Temporary increase or reduction in dosing at the push of a button, Automatic dosing via flow and pressure evaluation, Automatic checking of nozzle wear through simultaneous checking of flow and operating pressure, Alarm in the following cases: dosing too late, low fluid level in the container, maximum/minimum pressure, maximum/minimum speed of rotation, flow rate outside the parameters, worn nozzles |
| Technical info | Voltage: +11 to 14VDC, Current consumption: 450mA (without valves), Temperature range: 0°C to 60°C, Digital inputs: max. 2000Hz, Analogue inputs: 4 x 20mA, Weight: 1015 g, Dimensions LxWxH (mm): 207 x 222 x 86, Splash-proof, Quick-fit connectors enable quick connection, Integrated SD card holder for data storage, Internal clock with own power supply, Languages: Italian, English, Spanish, French, Portuguese, German, Polish, Russian and Czech, Illuminated, graphical LCD display with 240 x 73 pixels, Inputs for flow signal for filling and dosing, speed, pressure, speed of rotation, pump protection, Outputs for max. 7 part width sections, pressure regulator, main shut-off valve and foam marker, Display of European or US American units |
| Unit | Each |
Logistics
| EAN | 8026834317796 |
|---|---|
| Unit of measure | EA |
| Weight | 3694 g |
| Dimensions | 371 × 260 × 190 mm |
| Dangerous goods | No |
You might also like
BPA000073704
Arag Nipple double M/M 1 1/4" 2502051
£2.94 excl.
£3.53 incl.
In stock
Expected to ship on Friday 18 September
BPA000109257
Arag Nozzle cap, bayonet, diameter 11.9H, white, 40290502
£1.10 excl.
£1.32 incl.
In stock
Expected to ship on Friday 18 September
BPA000040319
Arag Hose fitting 90° 40mm with male connection T6 1191640
£3.66 excl.
£4.39 incl.
In stock
Expected to ship on Friday 18 September
BPA000101877
Arag Tri Jet 25mmFor 10 retainer clip 401275A7
£12.64 excl.
£15.17 incl.
In stock
Expected to ship on Friday 18 September
BPA000024522
Arag Hose tail 50mm x 1 1/2" Male 1032650
£3.34 excl.
£4.01 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000122321

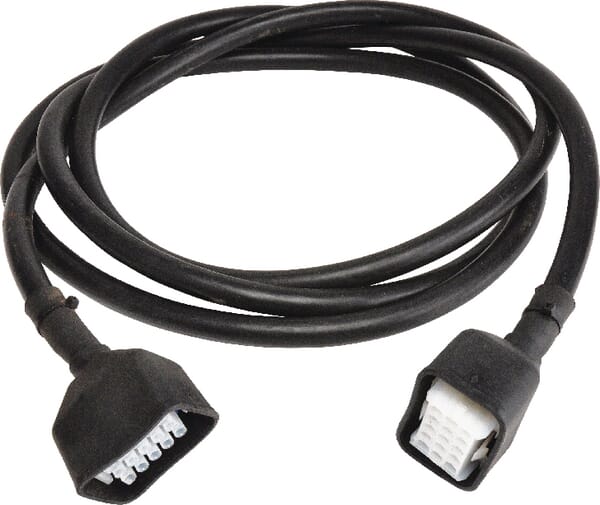

Arag Extension cable 5-way 4662550090
£140.14 excl.
£168.17 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000102635

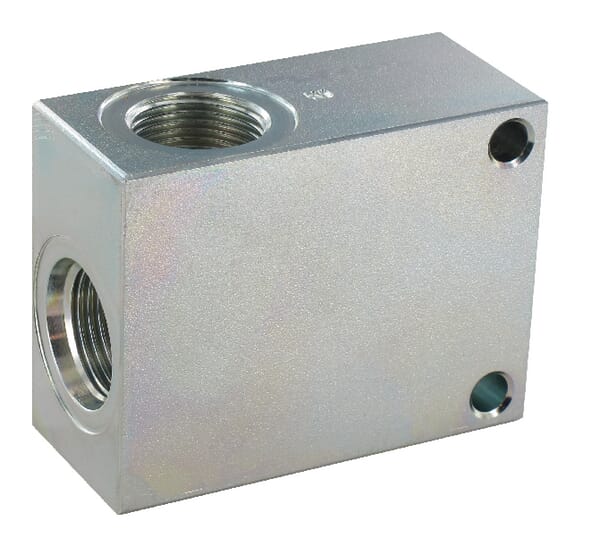

Walvoil Steel housing 12/2 3/4 BSP 3CC12212ST
