£214.38
excl. VAT
£257.26 incl. VAT
£257.26
incl. VAT
£214.38 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Adjustable pressure range | 100-200 BAR |
|---|---|
| Adjustment type | Socket screw |
| Cartridge length | 43.5 mm |
| Connection thread diameter | 3/8 Inch |
| Connection thread type | Inch |
| Connection type | Thread |
| Housing length | 100 mm |
| Housing material | Steel |
| Housing width | 35 mm |

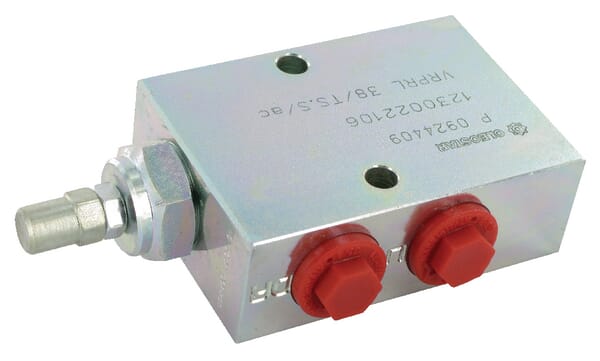

| Long description | PRMPRMP Reducing valves with steel housing have a precise pressure control and ensure constant, reduced pressure in the case of fluctuating system pressures. |
| Max. flow rate | 20 l/min |
| Max working pressure | 350 BAR |
| Product details | Reduced pressure at connection U., Area of application with high pressure and medium volume flow., Suitable for piping., Spring-loaded valve in aluminium housing, To be used in double-acting systems., The leak connection DR must be connected to the tank or in a return pipe with absolutely no pressure. |
| Pros | Ensures a constant. reduced pressure in the case of fluctuating system pressures., Output pressure is limited based on external peak loads. |
| Total height | 143.5 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2309 g |
| Dimensions | 143 × 126 × 43 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000396133
Walvoil Pressure relief valve Steel VRPRL10001ST
£257.44 excl.
£308.93 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000376626
Walvoil Sequence valve VDSDB05001
£115.91 excl.
£139.09 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000247185

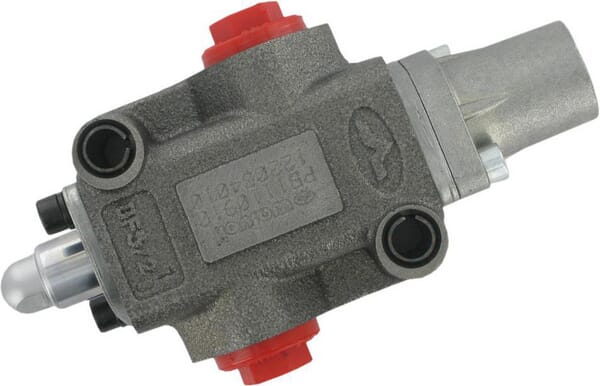

Walvoil Valve 2 Way DF-05-2AT-17-SLP DF052005
£62.53 excl.
£75.04 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000357358

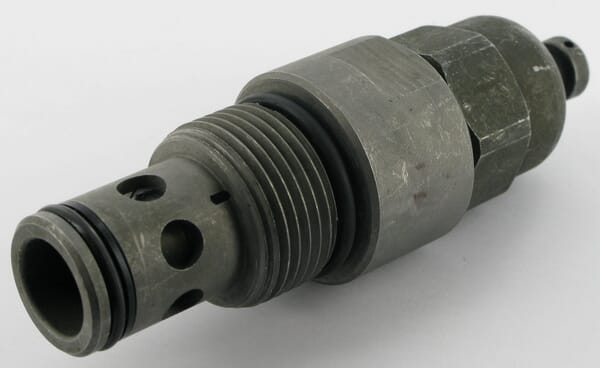

Walvoil Pressure relief cartridge SD25 20-400bar SD925VEI
£94.25 excl.
£113.10 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000382519
Walvoil Relief valve A-06-S-A-3/8 BSP 3/8 BSP VADDL05001
£183.41 excl.
£220.09 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000382542

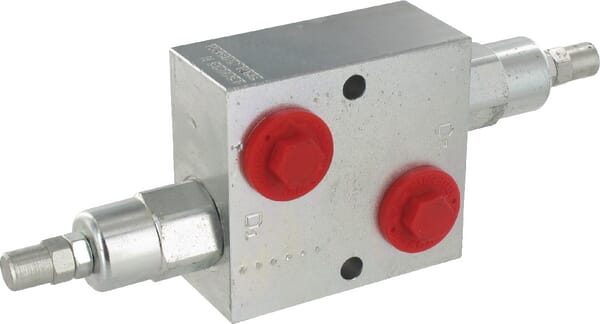

Walvoil Steel pressure relief valve VAIL10002ST
