£117.72
excl. VAT
£141.26 incl. VAT
£141.26
incl. VAT
£117.72 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Bore type code | n/a |
|---|---|
| Connection 2, thread diameter | 3/8 Inch |
| Connection 2, type | Thread |
| Connection thread diameter | 1/2 Inch |
| Connection thread type | BSP |
| Connection type | Thread |
| Connection type - male/female | Female |
| Flow rate | 50 l/min |

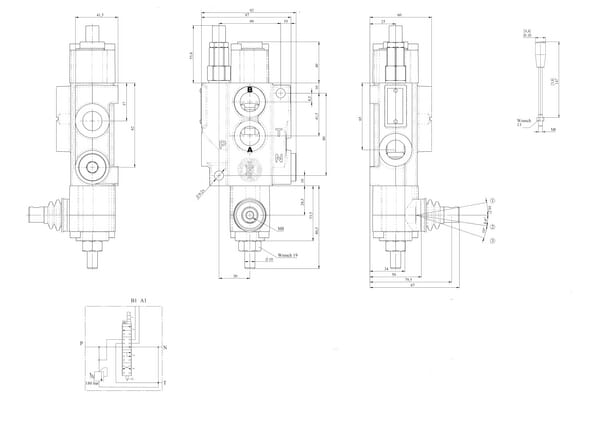

| Handle length | 147 mm |
| Housing height | 87 mm |
| Housing length | 100 mm |
| Housing material | Cast iron |
| Housing width | 79.5 mm |
| Includes | Valve with push button, Control lever, The end stop/bracket on the cylinder is not a standard item, you will need to make this part yourself |

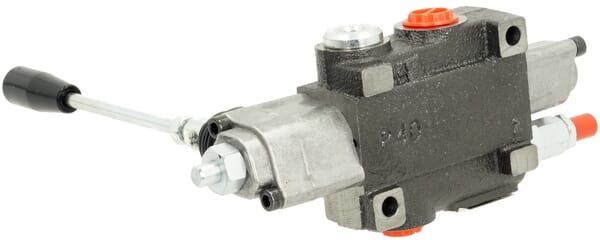

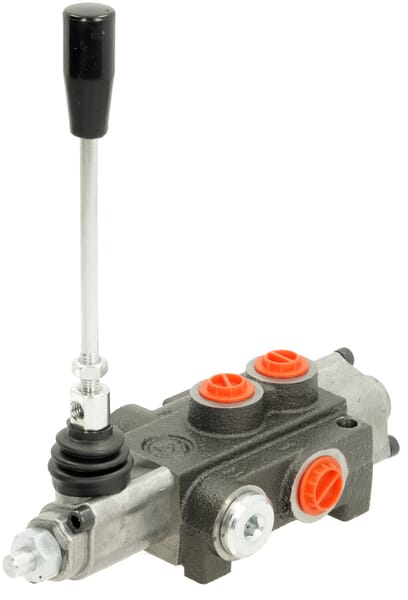

| Long description | These valves are specially designed for wood splitters and feature a mechanical end stop. The valve has four positions that allow the hydraulic cylinder to move in four different steps. |
| Max working pressure | 315 BAR |
| Max working temperature | 60 °C |
| Min working temperature | -40 °C |
| Number of ports | 5 |
| Number of positions | 3 |

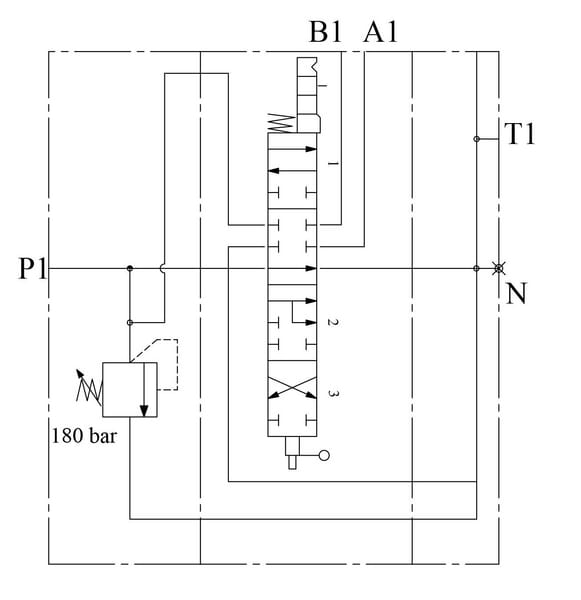

| Product details | Operation of the four functions :, Position 1: The cylinder, which you have equipped with a mechanical stopper, automatically retracts until it taps the push button on the valve, causing it to switch to neutral position 0., Position 2: The cylinder goes out quickly (differential), the oil from the rod side is added to the bottom side., Position 3: The cylinder slides out with the pump flow and maximum power., Position 0: Neutral position (suitable for open centre system) |
| Sealing material | Nitrile rubber [NBR] |
| Total height | 92 mm |
| Total length | 236.3 mm |
| Type | Self closing valve |
| Unit | Each |
Logistics
| EAN | 8719493173536 |
|---|---|
| Unit of measure | EA |
| Weight | 2600 g |
| Dimensions | 236 × 100 × 100 mm |
| Dangerous goods | No |
