£3,478.29
excl. VAT
£4,173.95 incl. VAT
£4,173.95
incl. VAT
£3,478.29 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

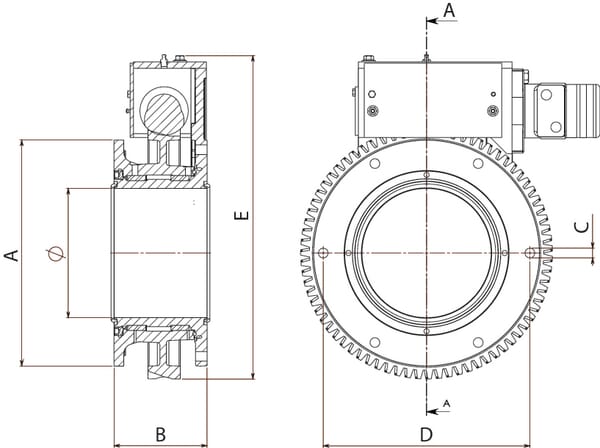

| AFlange outside diameter | 410 mm |
|---|---|

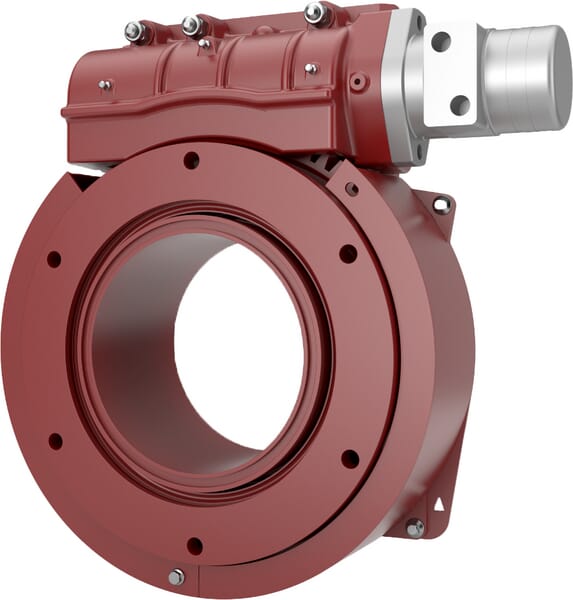

| Application range | This rotary coupling enables a suction arm to be rotated in a small space, for example |
| BTotal width | 156 mm |
| CFlange mounting holes diameter | 14 mm |
| DFlange mounting holes distance | 370 mm |
| ETotal height | 509 |
| Flange mounting holes number | 8 |
| Flange mounting holes thread diameter | M14 |
| Gear ring material | Cast iron GJS600 |
| Gear ring number of splines | 75 |
| Gear ring replaceable | No |
| Max. running time | 2 min |
| Max working pressure | 6 BAR |
| Max working temperature | 80 °C |
| Max. working torque | 7400 N·m |
| ØInside diameter | 250 mm |
| Operating torque | 5500 N·m |
| Properties | Swivel joint:, Wear resistant crown wheel and gear, Rotates by 360º, Very compact design, Automatic brake system in the event of a hydraulic motor failure, Easy lubrication, , Hydraulic motor:, Temperature range (°C) oil: -30 to +60, Max. working pressure (bar): 165, Max. oil capacity (l/min): 60 |
| Unit | Each |
| Weight | 84 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
You might also like
BPA000129550
Battioni Pagani Copper Washer 5050202013
£1.25 excl.
£1.50 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000353266

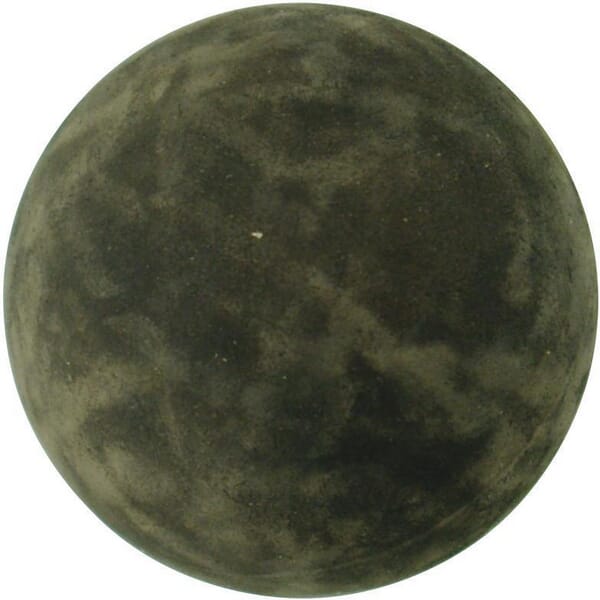

Battioni Pagani Rubber ball 70mm S56
£17.71 excl.
£21.25 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000399610
Battioni Pagani Rotor WPT170
£1,737.73 excl.
£2,085.28 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000152739
Battioni Pagani REVOBLOCK 07-250 MY23 with motor 6080200578
£4,005.70 excl.
£4,806.84 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000109647
Battioni Pagani Rubber Washer 4060310005
£3.49 excl.
£4.19 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000231527

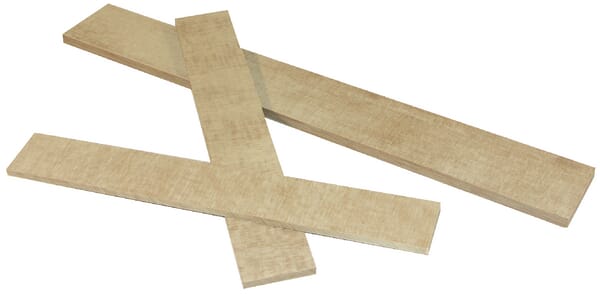

Battioni Pagani Vane 370x46.5x6.5mm long life AMEC7SP
£70.60 excl.
£84.72 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
Free shipping
BPA000154311
FAG Deep groove ball bearing C3 70x180x42 INA/FAG 6414MC3
£456.78 excl.
£548.14 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000401585
Brady Sticker supplementary information sign recycling plastic: Plastique 210x297mm WB251294FR
£28.16 excl.
£33.79 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000083817
Hella Marker light RH LED, 1.20W, 12/24V, bolt on, 102xQuick-link, 4 LED's, 2XS011769101
£53.39 excl.
£64.07 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000072650
Kramp Oil seal 7/8x1-1/2x1/4" type:CB DIN 3760 1x 2222381635CBP001
£1.47 excl.
£1.76 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000155675

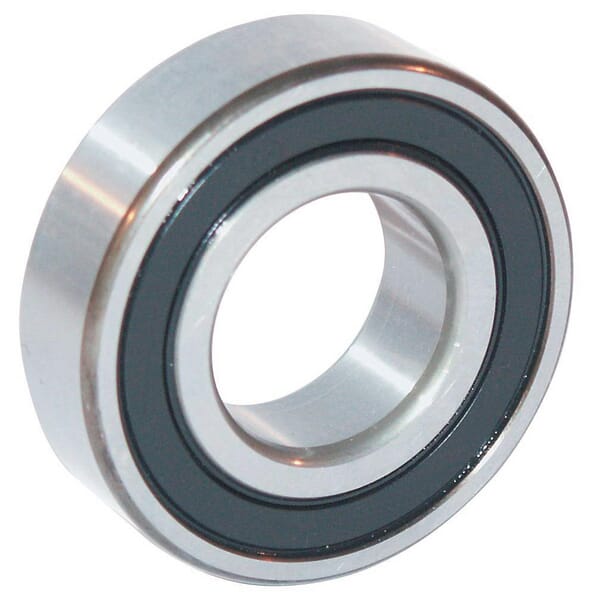

FAG Deep groove ball bearing 25x52x18mm INA/FAG 62205A2RSRC3
£15.68 excl.
£18.82 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000044677
Kramp Oil seal 130x160x12mm type:CC DIN 3760 1x 13016012CCP001
£8.11 excl.
£9.73 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000203500
Kramp Hexagon head bolt DIN933 M18x100 steel zinc-plated 10.9 93318100109
£2.95 excl.
£3.54 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000071715

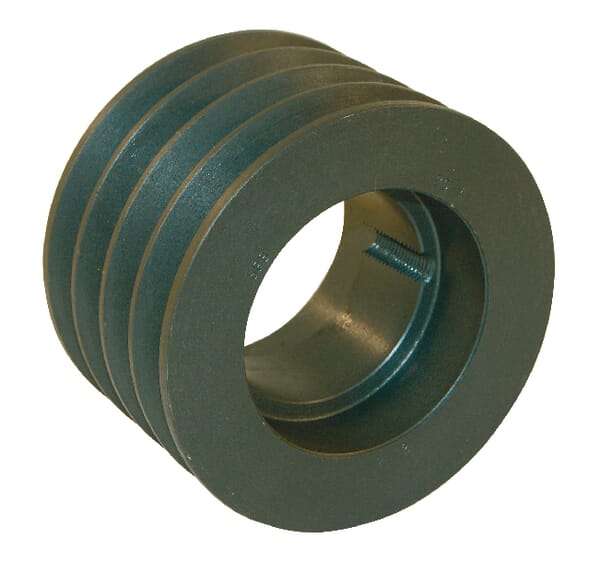

Kramp V-belt pulley 4 groove A or SPA diameter 241.50mm for taperlockbush 3020 236A4TL
