£5,305.49
excl. VAT
£6,366.59 incl. VAT
£6,366.59
incl. VAT
£5,305.49 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

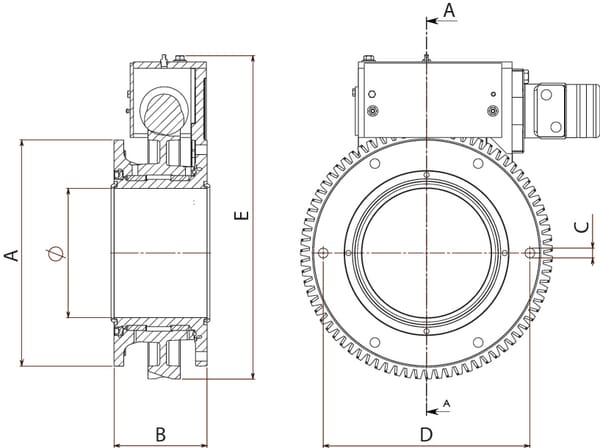

| AFlange outside diameter | 410 mm |
|---|---|
| Application range | This rotary coupling enables a suction arm to be rotated in a small space, for example |
| BTotal width | 154 mm |
| CFlange mounting holes diameter | 15 mm |
| DFlange mounting holes distance | 370 mm |
| ETotal height | 570 |
| Flange mounting holes number | 8 |
| Gear ring material | Cast iron BRAL |
| Gear ring number of splines | 60 |
| Gear ring replaceable | Yes |
| Max. running time | 2 min |
| Max working pressure | 6 BAR |
| Max working temperature | 80 °C |

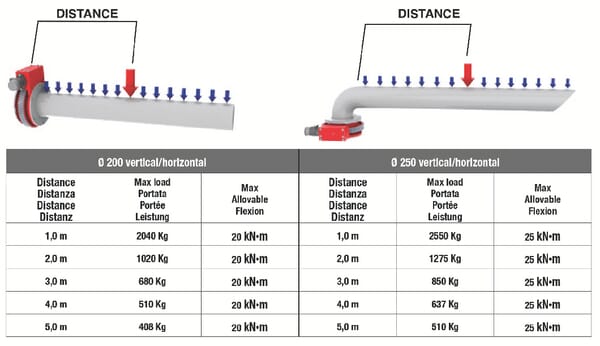

| Max. working torque | 18000 N·m |
| ØInside diameter | 250 mm |
| Operating torque | 13000 N·m |
| Properties | Swivel joint:, Wear resistant crown wheel and gear, Rotates by 360º, Very compact design, Automatic brake system in the event of a hydraulic motor failure, Easy lubrication, , Hydraulic motor:, Temperature range (°C) oil: -30 to +60, Max. working pressure (bar): 165, Max. oil capacity (l/min): 60 |
| Unit | Each |
| Weight | 108 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
You might also like
BPA000315150
Battioni Pagani Filling Plug MAM21
£2.19 excl.
£2.63 incl.
In stock
Expected to ship on Friday 18 September
BPA000313245

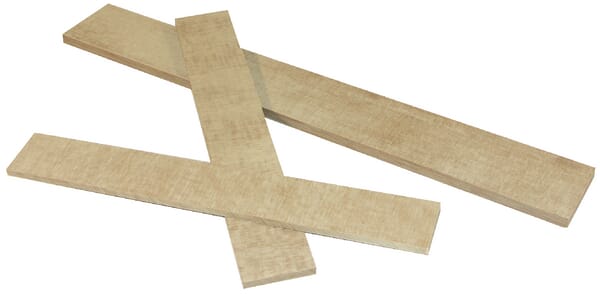

Battioni Pagani Vane 180x41x6.5mm long life M7SP
£45.46 excl.
£54.55 incl.
In stock
Expected to ship on Monday 21 September
BPA000101768
Battioni Pagani Pump support back cover 4010601057
£39.46 excl.
£47.35 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000321299

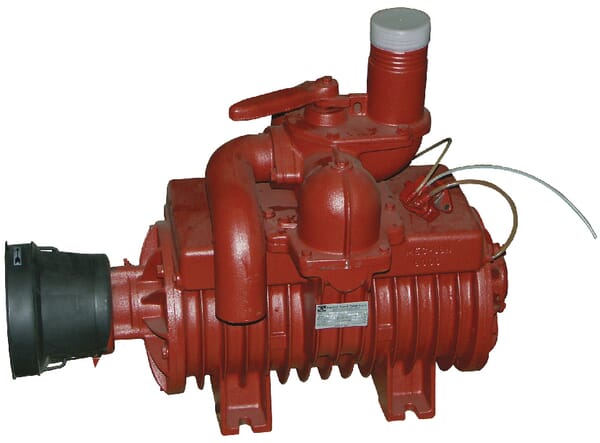

Battioni Pagani Vacuum pump direct drive CCW auto-lube MEC5000DLA
£1,947.58 excl.
£2,337.10 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000363791

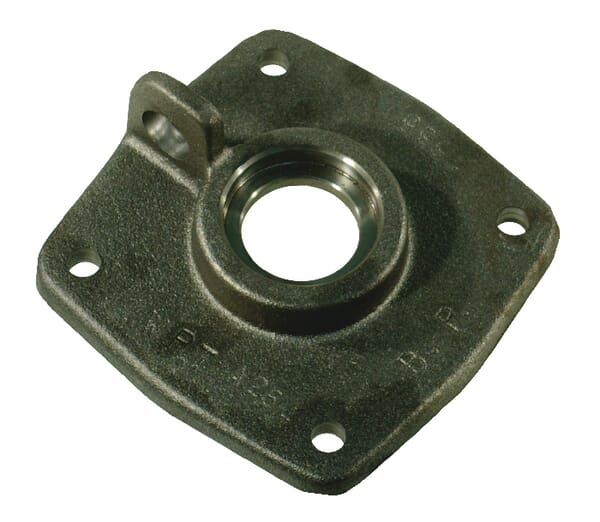

Battioni Pagani Cap ST77
