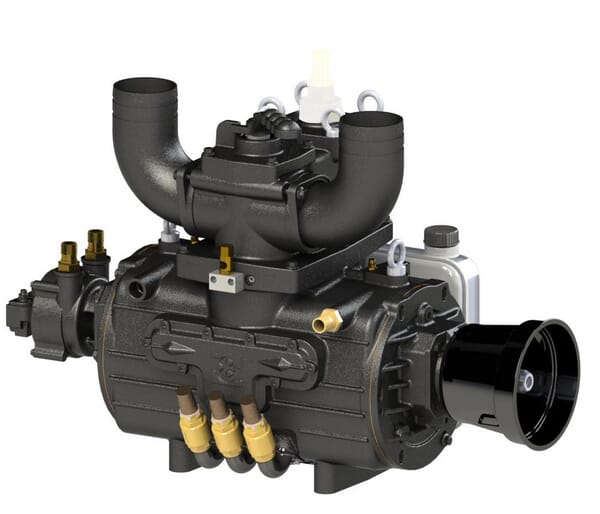

Product details
| Ballast air injection system | Yes |
|---|---|
| Crash protection system | Yes |
| Depression valve connection diameter | 1-1/2 Inch |
| Diameter of hose connection | 100 mm |
| Drive type | PTO 1000 rpm without gearbox |
| Includes | Pumps are delivered without oil (art. BP5070), Pumps are supplied without cooling radiator |
| Long description | Water cooler highly recommended for inclusion in cooling system., The water-cooled BPS pump is built to run continuously for a long time. This makes it ideal for e.g. large slurry tanks with injection system, vacuum trucks and industrial applications. The KPS pump is the ideal solution for professional users and contractors. |
| Lubrication system type | Automatic |
| Max. relative pressure | 1.5 BAR |
| Max vacuum | 0.95 BAR |
| Nominal volume flow rate | 13520 l/min |
| Power requirement for max. vacuum | 19 kW |
| Product details | Item number breakdown:, KPS = Model, B = BALLAST system, air injection, 490, 550, 670 = Series, D = Direct driven, 1000 rpm, M = Drive with gearbox, 540 rpm, P = Pulley driven, H = Hydraulic pump driven, L = Rotation counter clockwise, R = Rotation clockwise, A = Automatic lubrication, 100 = Ø hose connection, 100mm, The pump rotation is determined with the drive shaft aligned with the observer. If, for example, a pump is driven directly by a tractor, it must be driven counter clockwise. |
| Pros | Liquid cooled housing with integrated water pump, Extra air cooling (BALLAST air injection system), Comes standard with heat-resistant "Long Life" blades, Automatic lubrication, The pump is suitable for continuous operation in both vacuum and pressure modes, Crash protection system: in case of fault or blade breakage, the rotor and the rotor housing will be protected because the rotor and the mounting flange can slide away downwards, Easy blade wear check through inspection hole with wear indication mark, A test report by serial number is delivered with each pump |
| Rotation direction | Counter-clockwise (CCW) |
| Shaft diameter | 1-3/8 Inch |
| Unit | Each |
| Vane type | Long life |
| Weight | 205 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 210000 g |

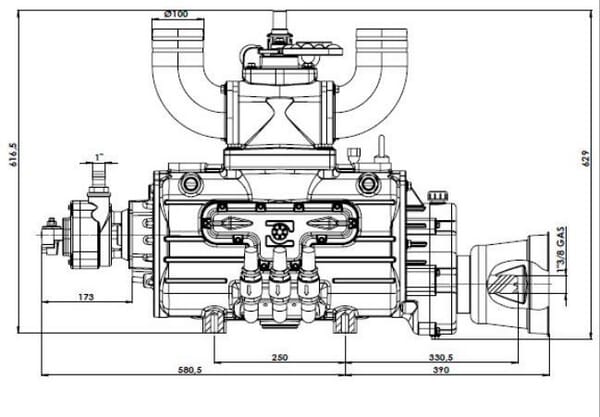

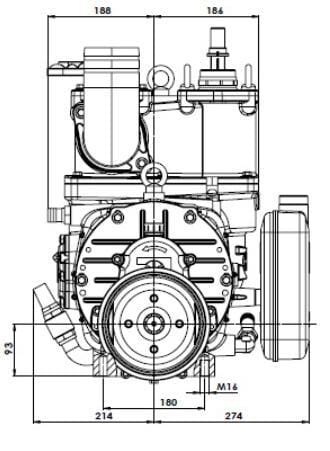

| Dimensions | 910 × 590 × 480 mm |
| Dangerous goods | No |
You might also like
BPA000321183

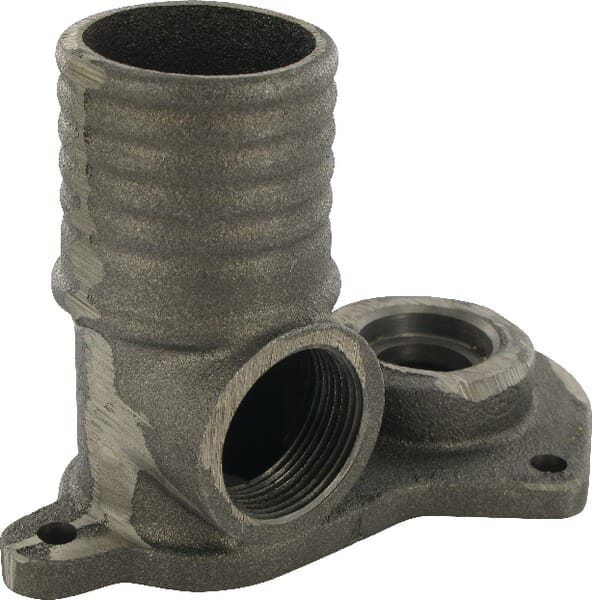

Battioni Pagani Connecting Part ME61
£69.25 excl.
£83.10 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000109872
Battioni Pagani Front bearing CCW - Ballast 4080115008
£42.13 excl.
£50.56 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000231387

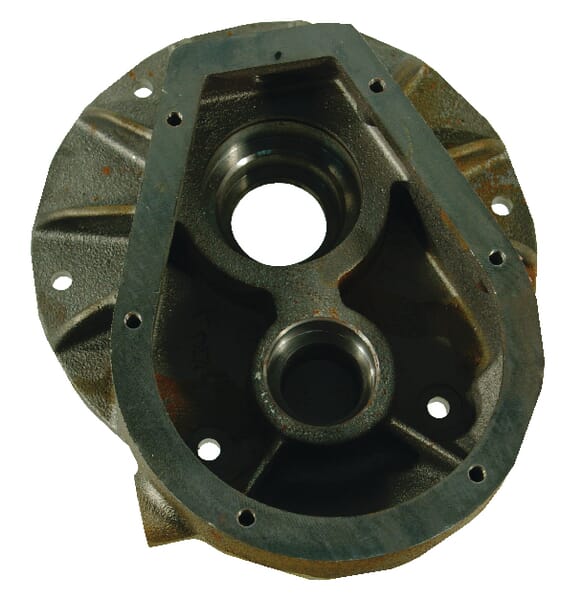

Battioni Pagani Gearbox without Bearing AM2
£158.99 excl.
£190.79 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000233983

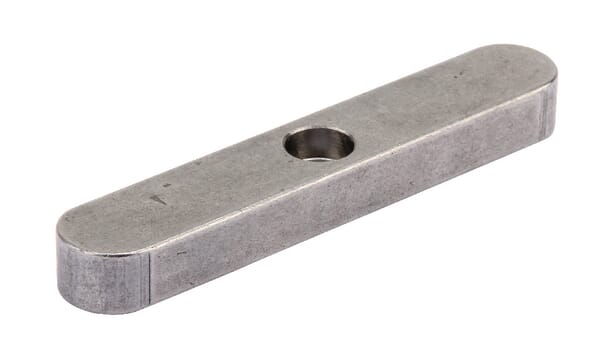

Battioni Pagani Key 18x11x100 BR-EVO 260 BREVO34
£33.00 excl.
£39.60 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000152705

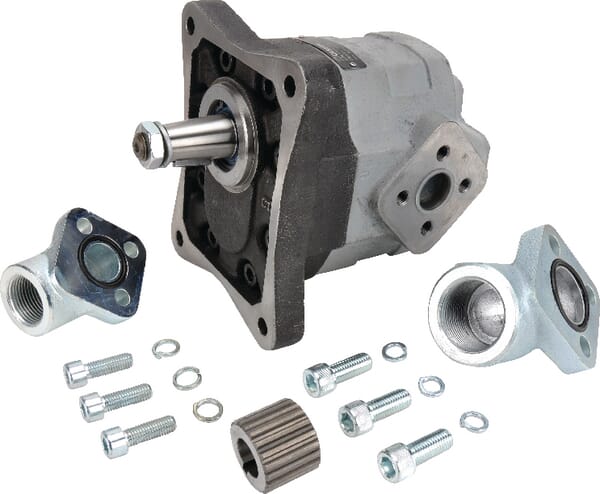

Battioni Pagani Hydraulic motor KM 30.73 SO GR. 3.5 6080200059
£876.25 excl.
£1,051.50 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000321278

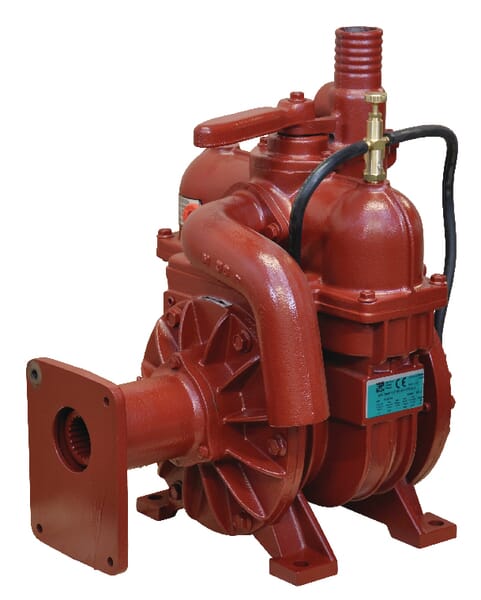

Battioni Pagani Vacuum pump hydraulic drive MEC2000H
£1,157.79 excl.
£1,389.35 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
BPA000198056
Kramp Hexagon head bolt DIN931 M20x180 steel zinc-plated 8.8 93120180
£2.88 excl.
£3.46 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000199564
Kramp Hexagon head bolt DIN931 UNF 1/2"x6" steel zinc-plated 8.8 931126UNF
£4.26 excl.
£5.11 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000198360
Kramp Hexagon head bolt DIN931 M33x110 steel zinc-plated 8.8 93133110
£10.92 excl.
£13.11 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000345370

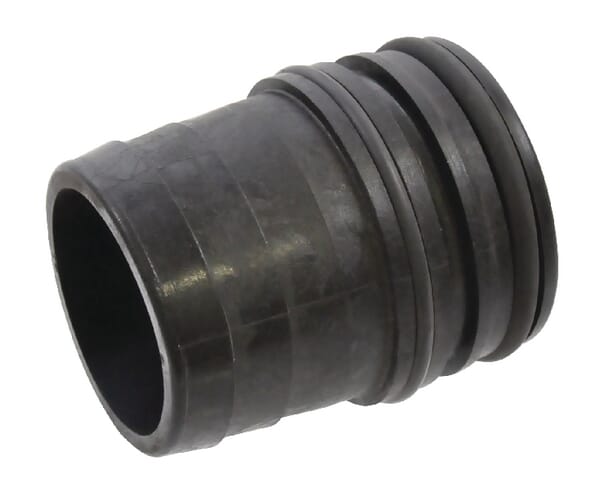

Kverneland / Rau Steck Tube 50mm x 1 3/4" Rau RG00017157
